2.1.4. ON/OFF

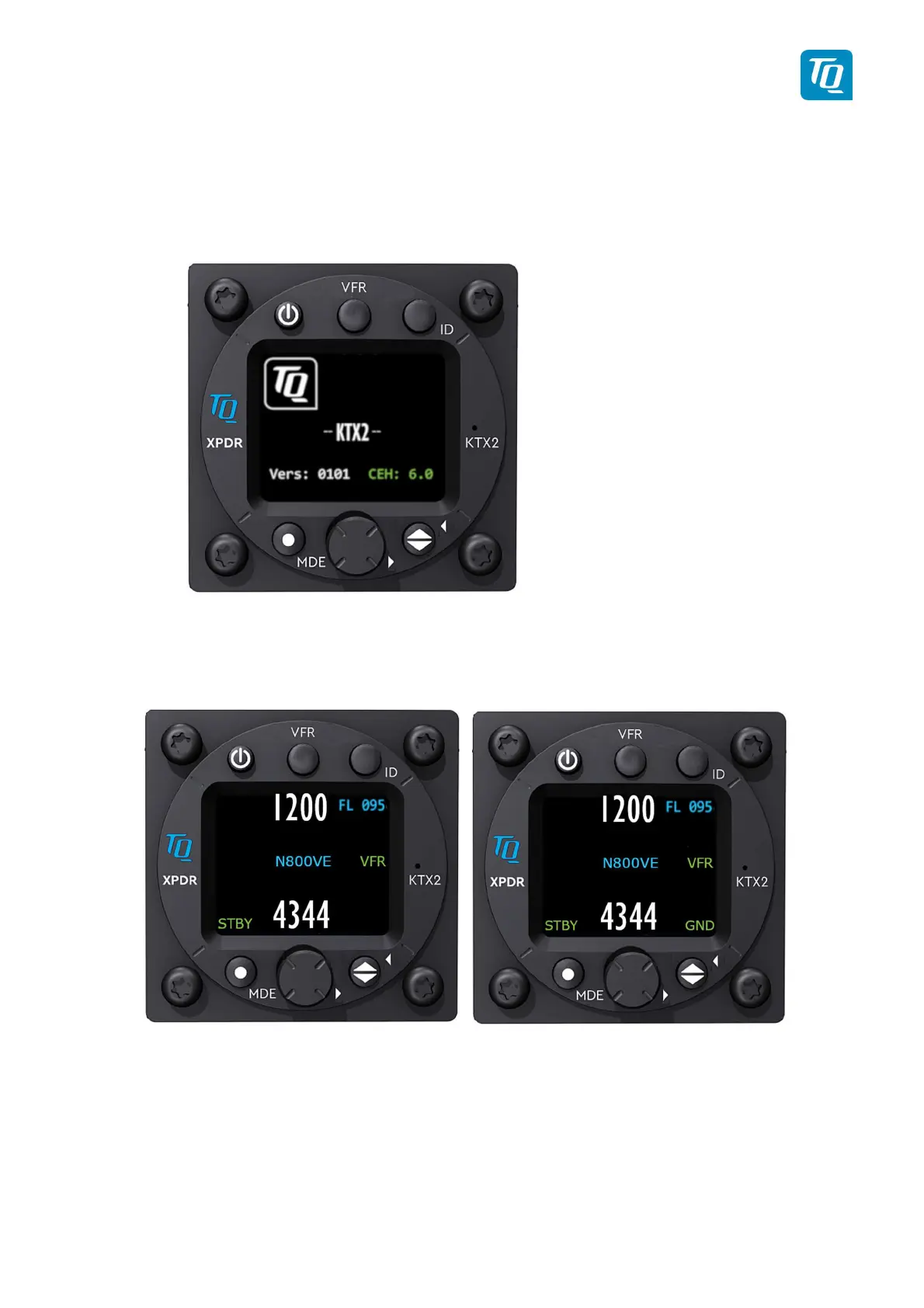

The device is switched on/off by pushing the mechanically locked key. After power
up, the display appears as follows (example):
Device Name
-- KTX2 --
Software-Version
e.g. V.0101
Firmware-Version
e.g. FPGA: 6.0
After approx. 2 seconds the normal operation window appears and the transpond-
er will enter the mode ALT. If a weight on wheels switch is installed and the aircraft
is on ground the mode GND will be set.
No GND switch installed GND-switch installed, on GND
