TQ KTX2 User Manual

TQ Aviation KTX2.0300
EASA.AP445 MAN
KTX2.A-MAN.0202.en.docx Page 42 of 49
© TQ-Systems GmbH. All information contained in this documents have to be treated strictly confidential. The transfer of presentations and know-how to third parties
requires the prior written consent of TQ-Systems GmbH.
5.2. Wiring
5.2.1. Conductor Cross Section
Power Supply (Power, GND): AWG20 (0,62 mm²)
Signals: AWG22 (0,38 mm²)
The conductors must be approved for aircraft use. Recommended Quality:
MIL-Spec 22759/34, (Spec 55) 20AWG / 22AWG
Crimped D-Sub connector is always preferred against soldered connectors. Original TQ har-
ness comply with common aviation wiring standards. Consult your approved aviation shop for
installation details.

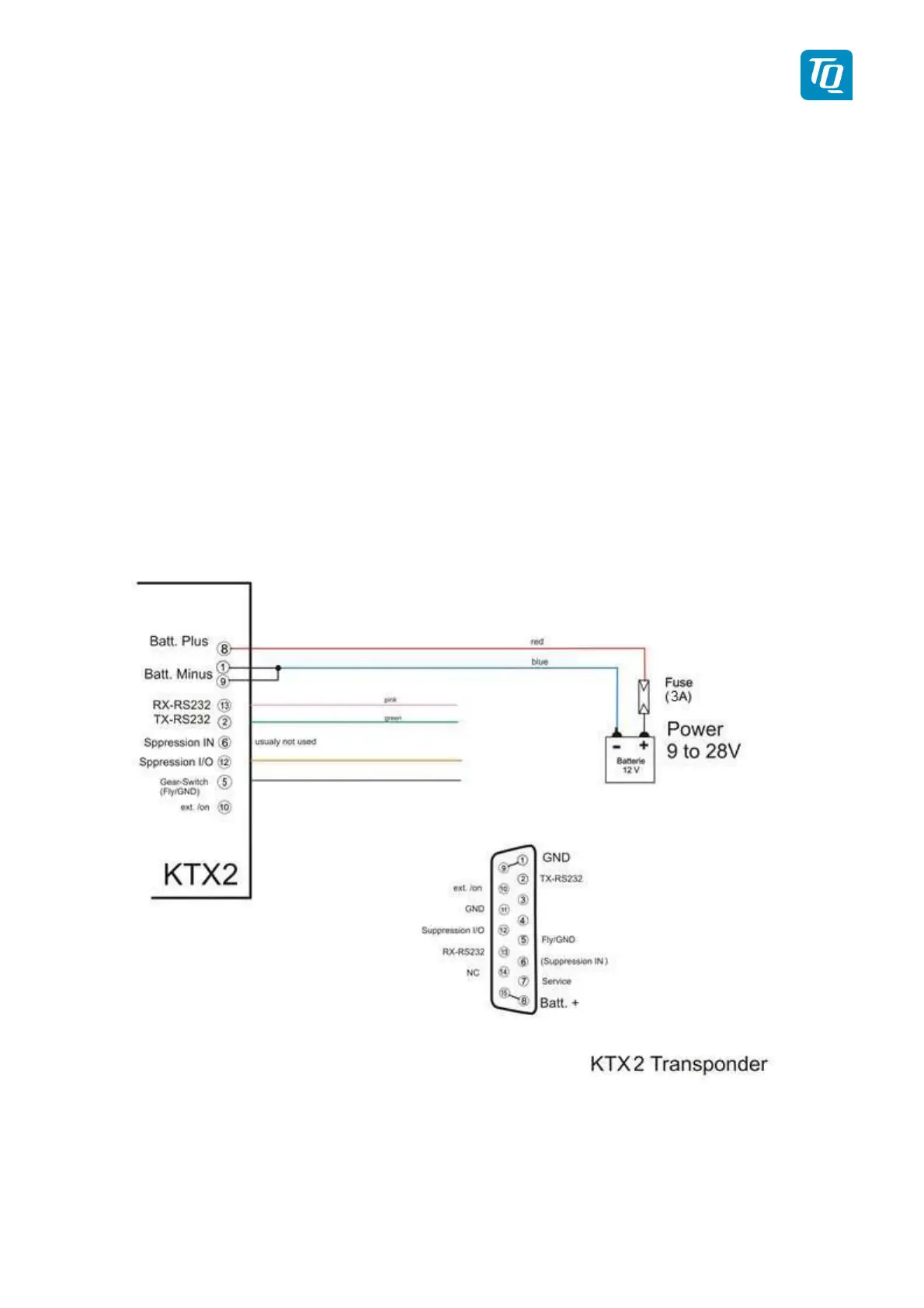

5.2.2. Wiring Scheme
Figure 8: Wiring
