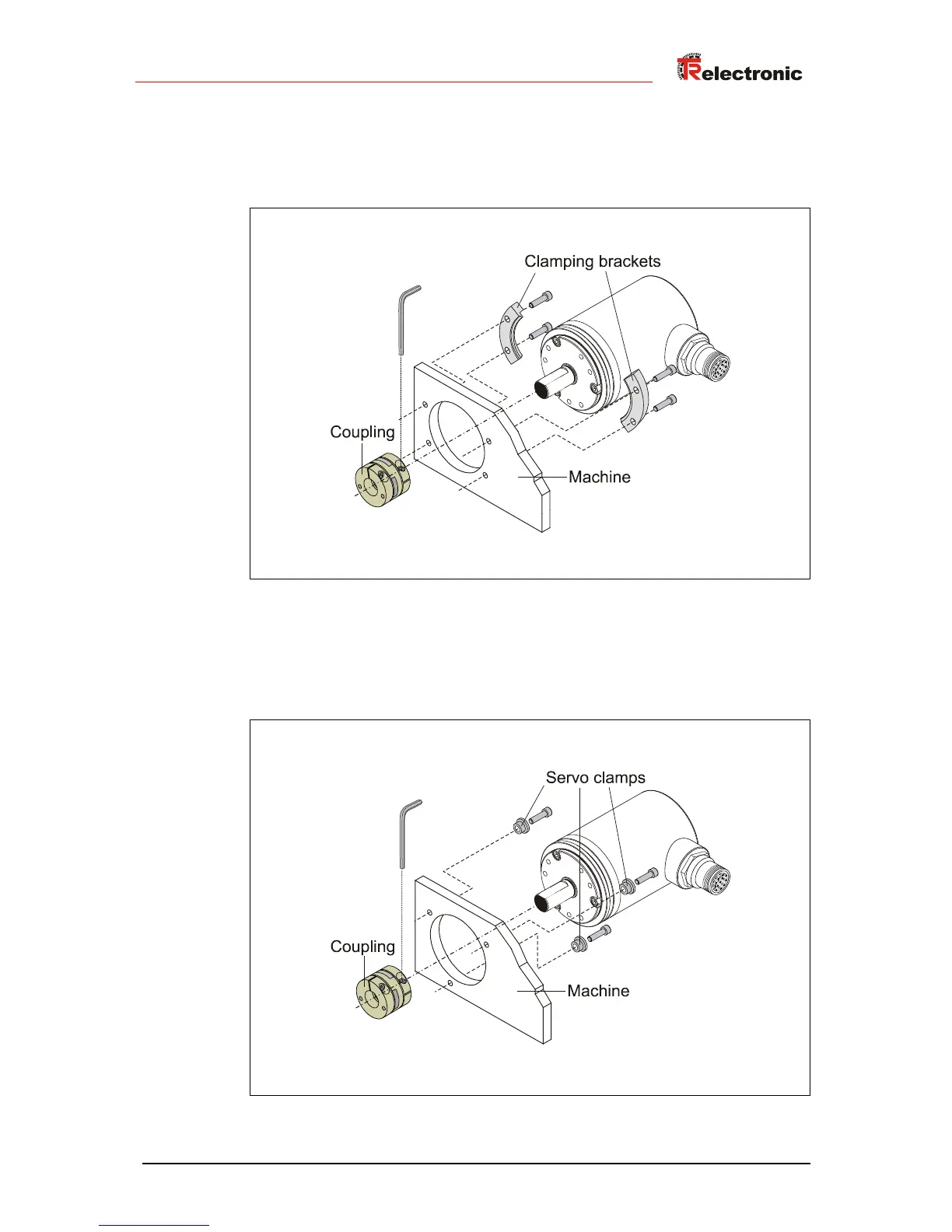

4.1.3 Clamping brackets
The centering collar with the corresponding fit centers the measuring system in
relation to the shaft. It is fixed to the machine by means of two clamping brackets
which are fastened with four screws.
4.1.4 Servo clamps
The centering collar with the corresponding fit centers the measuring system in
relation to the shaft. It is fixed to the machine by means of three servo clamps.
