4.2 Blind shaft

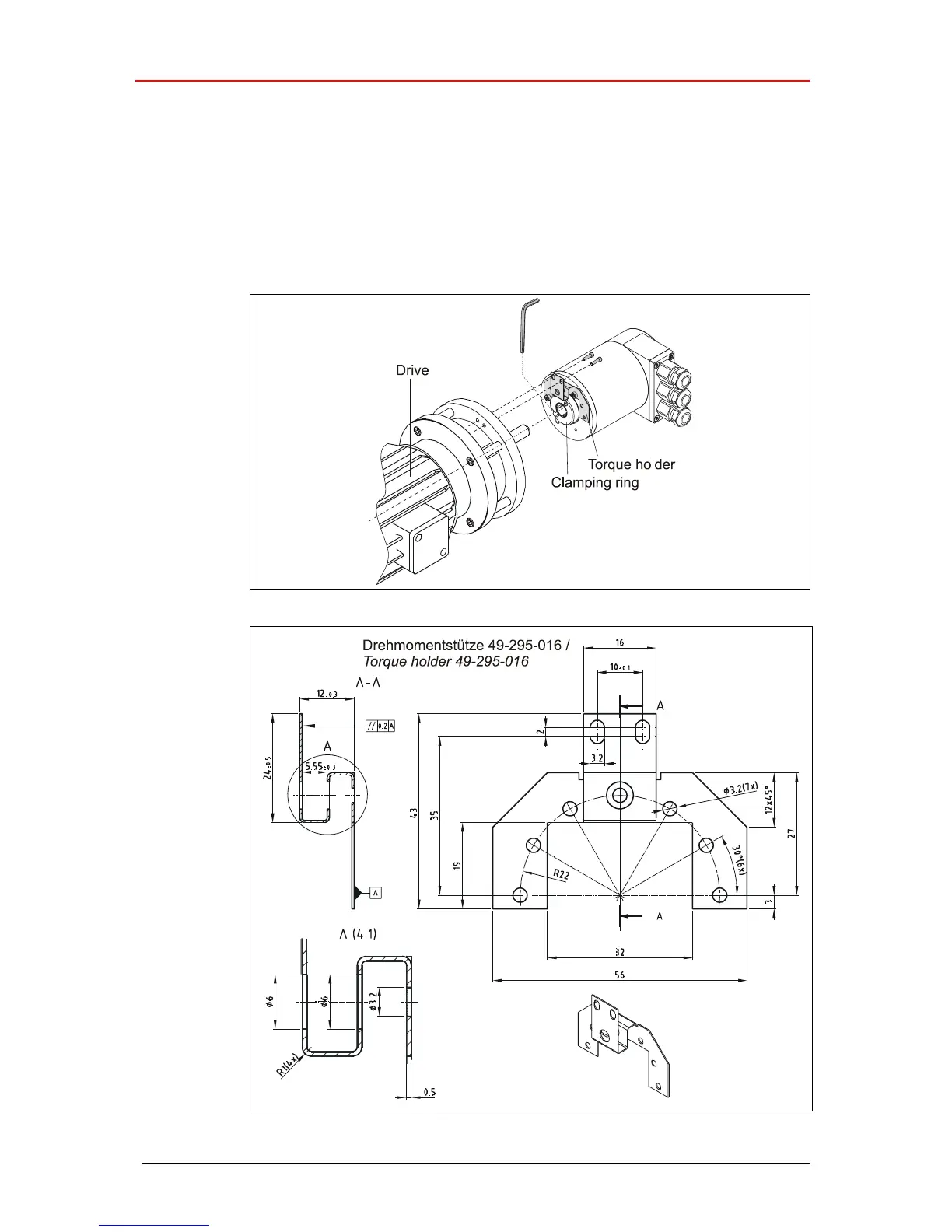

4.2.1 Mounting with torque holder
The rotating of the measuring system by the arising torque is prevented by a torque
holder. Additionally occurring axial or radial displacements of the drive shaft will be
compensated and machine vibrations absorbed.
Mount measuring system with the torque holder by means of two M3 screws onto the
drive and protect it against slipping on the shaft by tighten the clamping ring with the
hexagon key.
