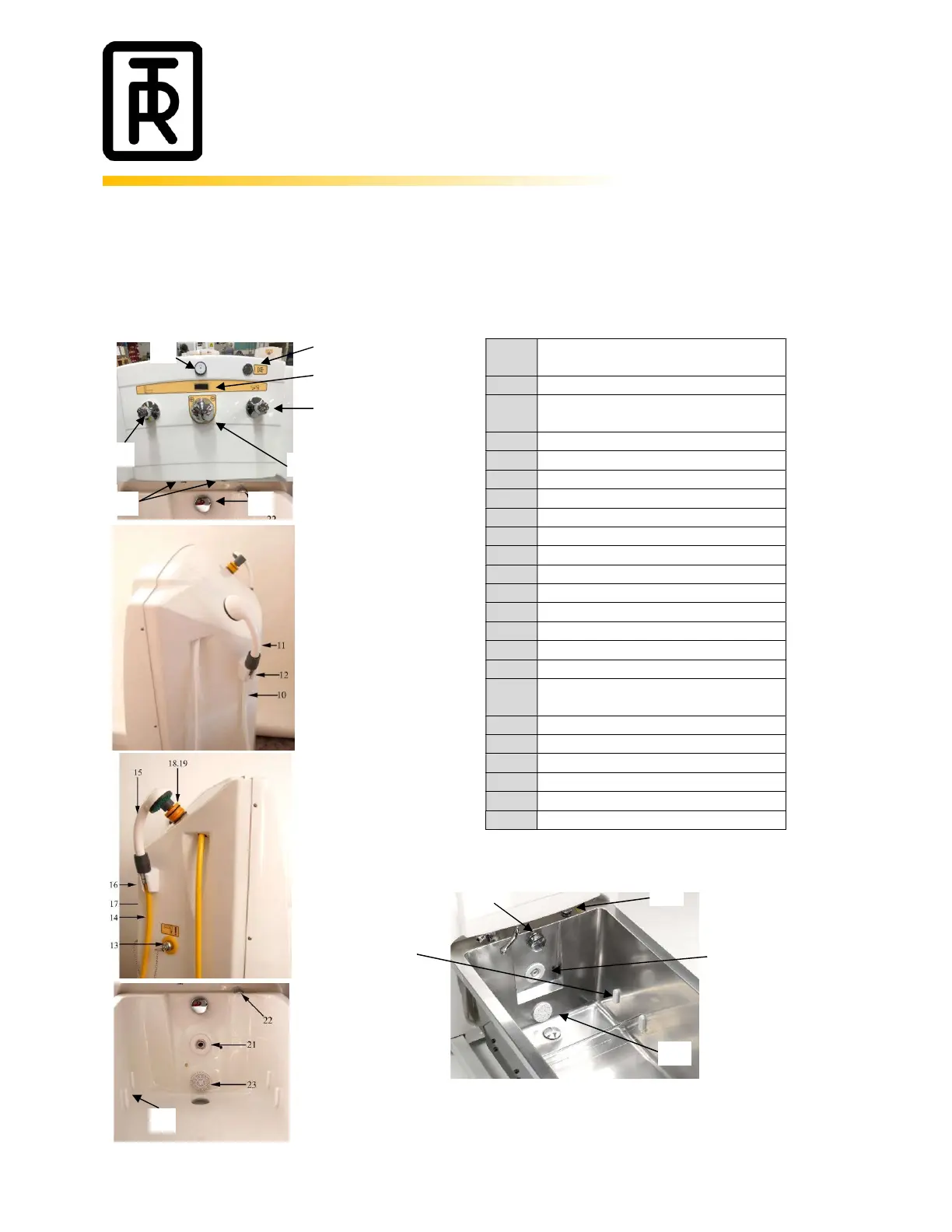

TR 900 - Features and Controls: TR 900; TR 900 Control Overview; Component Labels TR 900

Hygiene Equipment
Designed for People
18
Features and controls
Features and controls for TR900 & TR900SS, -C, CW
1
Control button, height adjustment
UP/DOWN
2
Thermostatic mixer
3
Digital
T
hermometer
C°
Digital
T
hermometer F° (USA)
4
Tub filling valve, open/close
5
Bathtub filling spouts
6
Overflow drainage
6
Drainage control knob open/close
8
Adjustable footrest
9
Shower valve, open/close
10
Patient shower hose, White
11
Patient shower handle
12
Bracket for shower handle
13
Cleaning Safety valve open/close
14
Cleaning hose, Yellow
15
Cleaning handle
16
Bracket for Cleaning handle
17
Setting screw Cleaning injector
(inside the panel)
18
Cleaning detergent
filling
19
Cleaning adaptor for Whirlpool
20
Whirlpool ON/OFF button
21
Whirlpool jet (adjustable)
22
Whirlpool air control
23
Whirlpool inlet safety screen
