9
MOD089

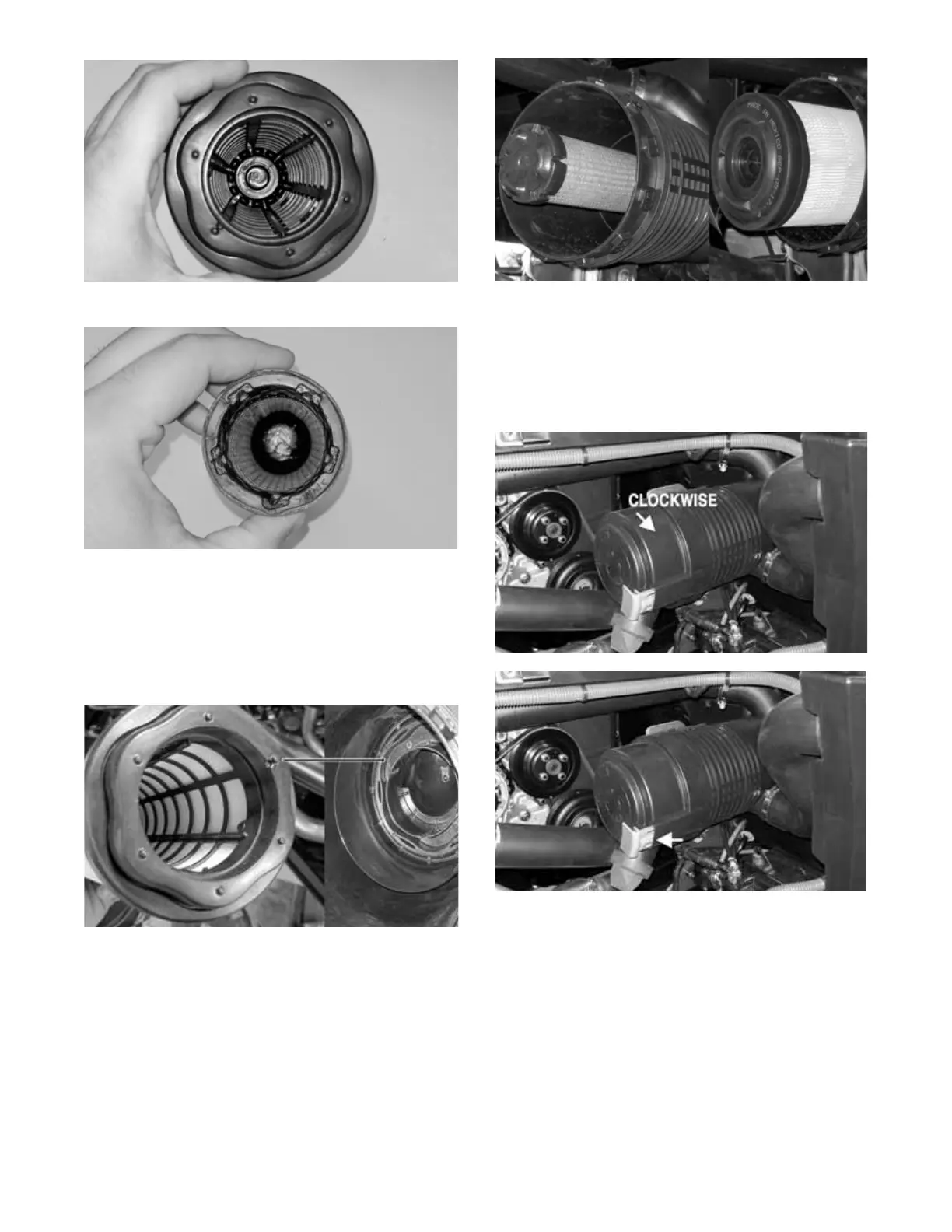

7. Remove and inspect the safety filter.
MOD090
INSTALLING
1. Install safety filter; then install the primary filter.
NOTE: The flower shape of the primary filter ele-
ment must line up with the same-shaped void in the
air filter housing for the air filter housing cover to fit
properly.
MOD091A
MOD092
2. Install the air filter housing cover with the clean-out
valve at the 5 o’clock position; then turn the air filter
housing cover clockwise until it seats.
NOTE: The clean-out valve should be near the
6 o’clock position when the cover is seated.
3. Lock the air filter housing cover.
MOD084C
MOD084A
4. Connect the snorkel to the housing; then tighten the
clamp securely.
To Next Page
