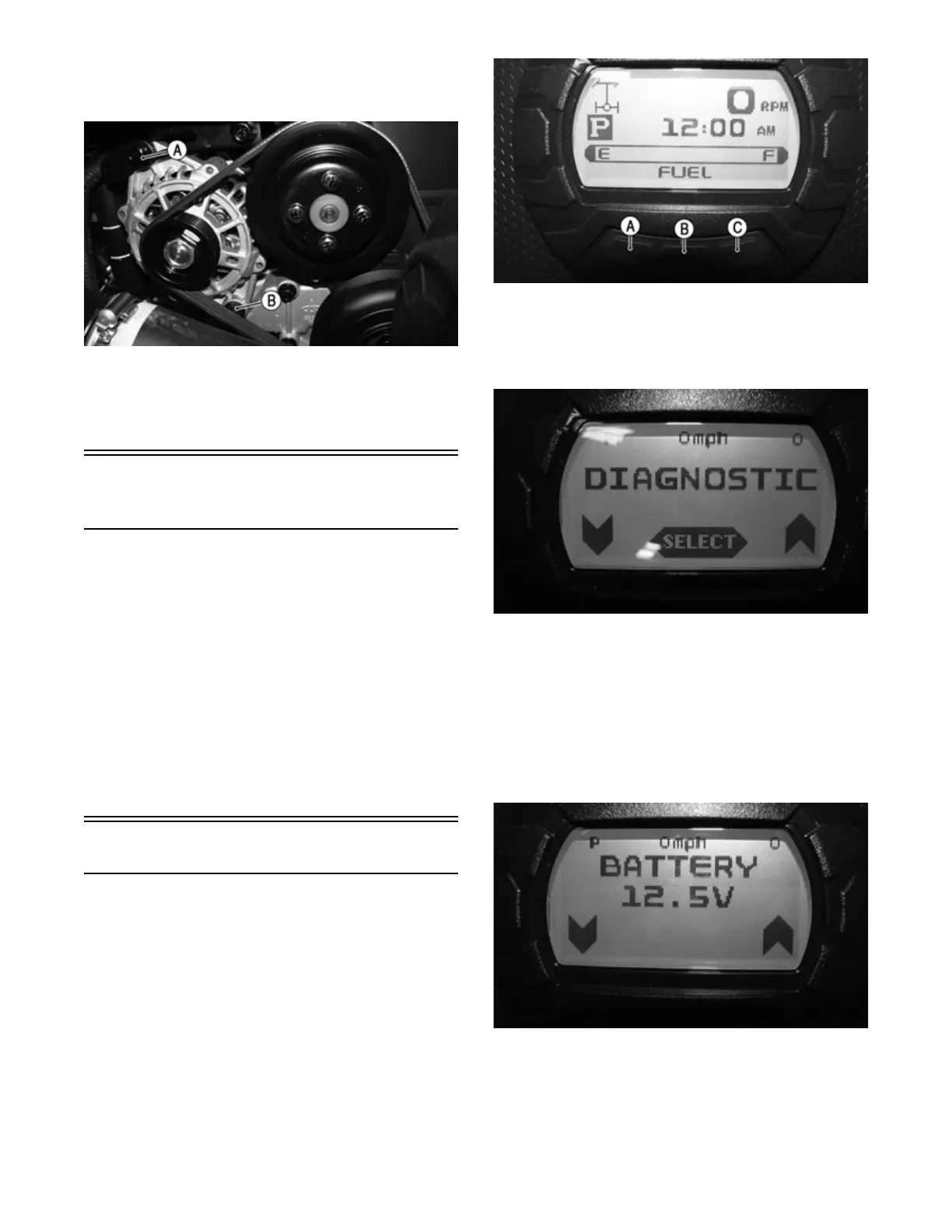

3. Holding tension on the belt, tighten the adjuster cap
screw (A) securely; then remove the pry and tighten
the pivot bolt (B) securely.
MOD439
4. Connect the battery wire and connect the voltage
regulator connector; then connect the negative bat-
tery cable to the battery.
5. Install the passenger rear inner fender.
Electronic Control Module
(ECM)
The ECM is located beneath the passenger seat near the
battery.
NOTE: The ECM is only serviceable as an assembly.
The ECM is rarely the cause for electrical problems;
however, if the ECM is suspected, substitute another
ECM to verify the suspected one is defective.
This system has a built-in feature that will only allow an
ECM of the same part number to be used in this model.
Do not attempt to substitute an ECM from a different
model as the system will not allow it to start.
Error codes can be cleared by following the procedures
located in the Gauge Diagnostic Menu sub-section in this
section.
Gauge Diagnostic Menu
DIGITAL GAUGE
The digital gauge has a diagnostic menu that can be used
to diagnose many of the DTCs displayed. To place the
gauge in the diagnostic mode, use the following proce-
dure.
NOTE: The digital gauge has three buttons:
Left (A), Center (B), and Right (C).
MOD234
1. Turn the ignition switch ON.
2. Depress and hold both left and right buttons together
for approximately three seconds until “DIAGNOS-
TIC” appears on the LCD.
MOD233
3. Press the center button (SELECT) to enter diagnostic
mode; cycle the display by pressing either the left or
right button to step to the desired function.
NOTE: The gauge can be utilized dynamically
(engine running/vehicle moving) or statically (engine/
vehicle stopped).
DIAGNOSTIC MODES
Battery (BATTERY)
MOD235
Display: System DC voltage.
DTC: P0562, P0563
Usage: Verify system voltage under following condi-
tions:
1. Battery voltage with engine and accessories off
(>12.2 VDC for fully charged).
