Tracker Off-Road 800SX - Behind-The-Seat Storage Box Panel

56
MOD524
ASSEMBLING

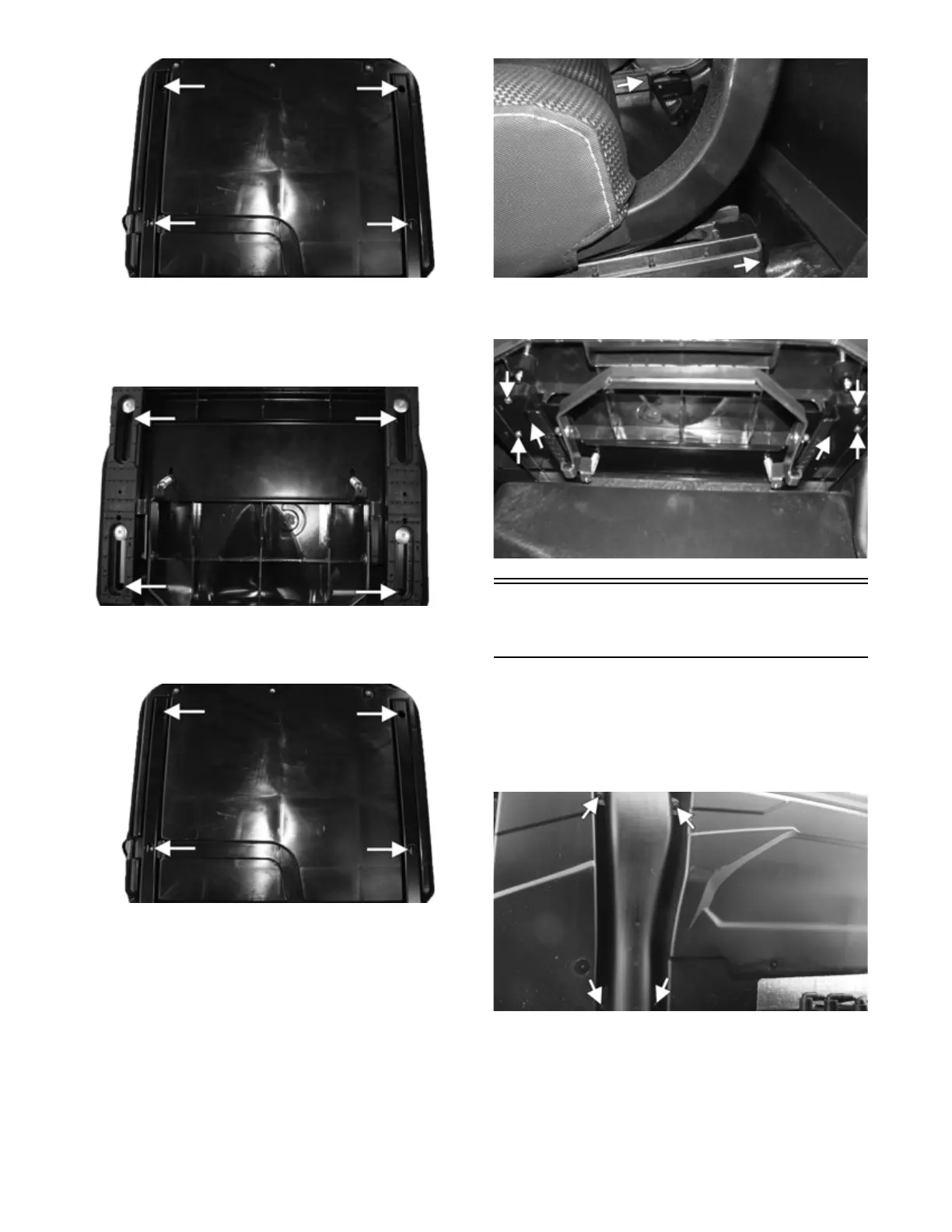

1. Position the seat bottom to the seat assembly; then
install the four cap screws securing the seat bottom
to the seat assembly. Tighten to 2 ft-lb (2.7 N-m).
MOD523
2. Position the seat backrest to the seat assembly; then
install the four cap screws securing the seat backrest
to the seat assembly. Torque to 2 ft-lb (2.7 N-m).
MOD524
INSTALLING
1. Install the seat assembly by lifting up on the seat
adjustment lever; then move the seat assembly
toward the rear of the vehicle to hook into the rear
mounting channels.
MOD228A
2. Install the six cap screws underneath the driver seat
rails. Tighten to 2 ft-lb (2.7 N-m).
MOD227
Behind-the-Seat Storage
Box Panel
REMOVING
1. Remove the seats; then both rear inner fenders; then
both side panels.
2. Remove the four cap screws and hose clamp for the
CVT air inlet snorkel.
MOD281
3. Remove the 11 cap screws securing the passenger
seat backrest hinge; then remove the passenger seat
backrest hinge.
