170
MOD374

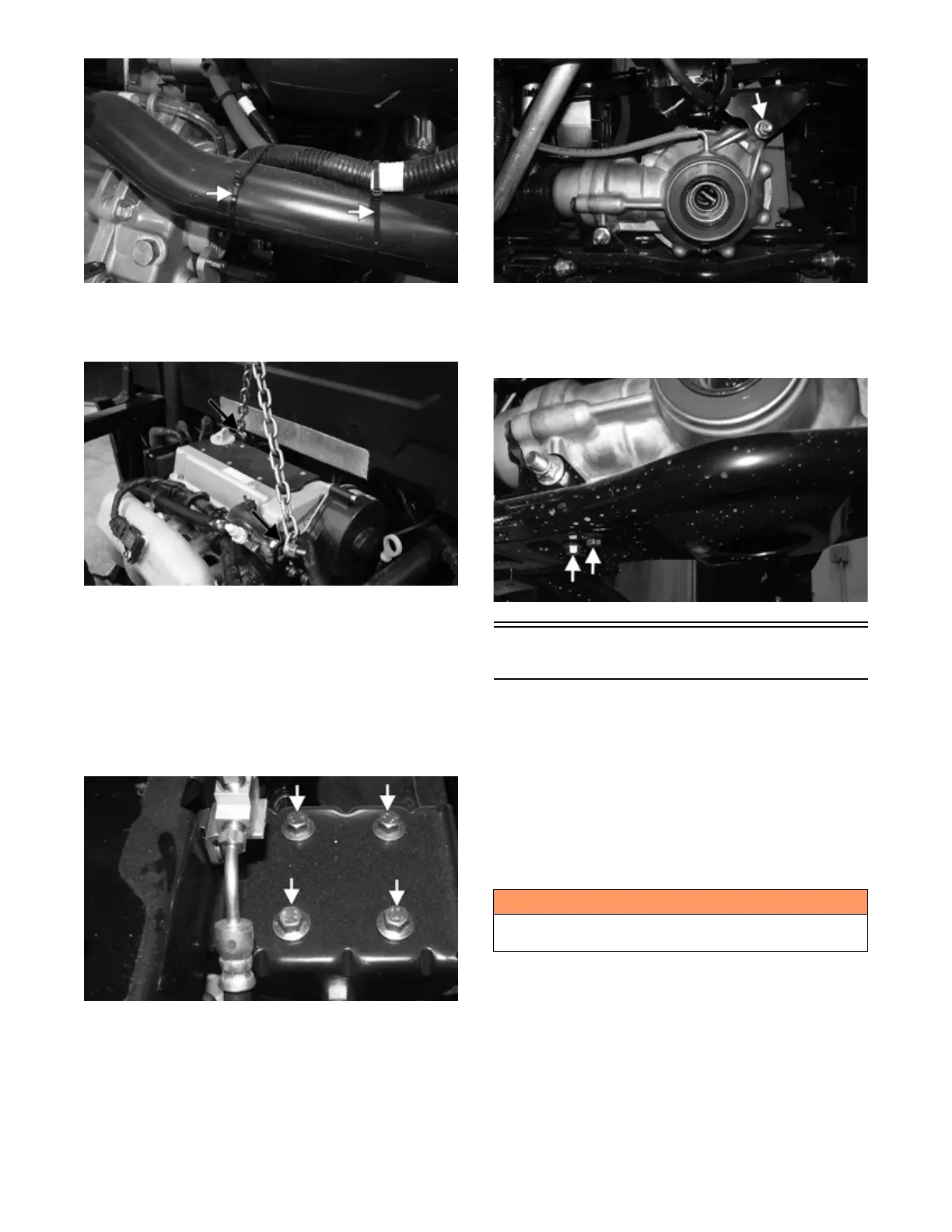

8. Connect the shift cable to the transaxle. Then remove
the suitable strap that was putting a slight upward
tension on the engine.
MOD546
9. Install the flywheel, PTO stub shaft, crankshaft posi-
tion sensor bracket with crankshaft position sensor,
and flywheel housing; then install the clutch cover
housing, drive clutch, driven clutch, and drive belt.
10. Install the upper differential mount; then install the
four cap screws securing the upper differential mount;
then tighten to 16 ft-lb (21.8 N-m); then install the
upper mount cap screw and new lock nut for the front
differential. Tighten to 45 ft-lb (61.2 N-m).
MOD346
MOD345
11. Install the two cap screws underneath the front dif-
ferential; then tighten to 16 ft-lb (21.8 N-m); then
install the cargo box; then install both rear drive
axles; then install both rear inner fenders.
MOD347
Hub/Brake Disc
NOTE: The brake disc is not removable from the
hub. If a brake disc needs replacing, a new hub is
required.
REMOVING
1. Secure the vehicle on a support stand to elevate the
wheel; then remove the wheel(s).
NOTE: The jack stands should be placed under the
main frame to avoid contact with front suspension
components.
2. Remove the hub retaining plate from the hub nut.
! WARNING
Make sure the vehicle is solidly supported on the sup-
port stand to avoid injury.
