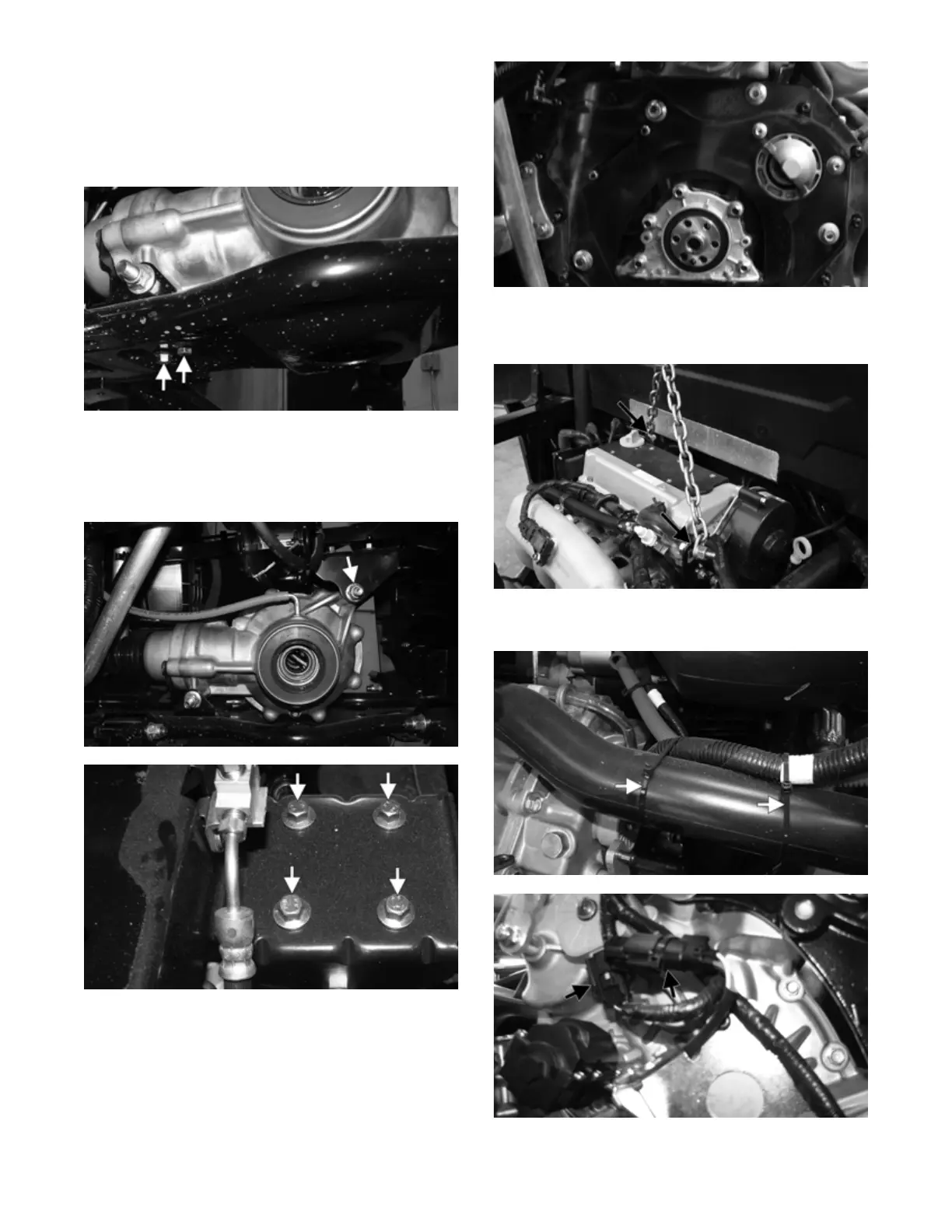

REMOVING TRANSAXLE
1. Remove the cargo box; then remove both rear inner
fenders; then remove both rear drive axles; then
remove the two cap screws underneath the front dif-
ferential.
NOTE: Removal of front axles is not required.
MOD347
2. Remove the upper mount cap screw and lock nut for
the front differential; then remove the four cap
screws securing the upper differential mount; then
remove the upper differential mount. Discard lock
nut. Inspect cap screws and replace if damaged.
MOD345
MOD346
3. Remove the drive belt, drive and driven clutches;
then remove the clutch cover housing; then remove
the flywheel housing, crankshaft position sensor
bracket with crankshaft position sensor, PTO stub
shaft, and flywheel.
MOD544B
4. With a suitable strap put a slight upward tension on
the engine; then disconnect the shift cable from the
transaxle.
MOD546
5. Remove the nylon straps and disconnect the electri-
cal connections to the transaxle.
MOD374
MOD375
