165
TA102

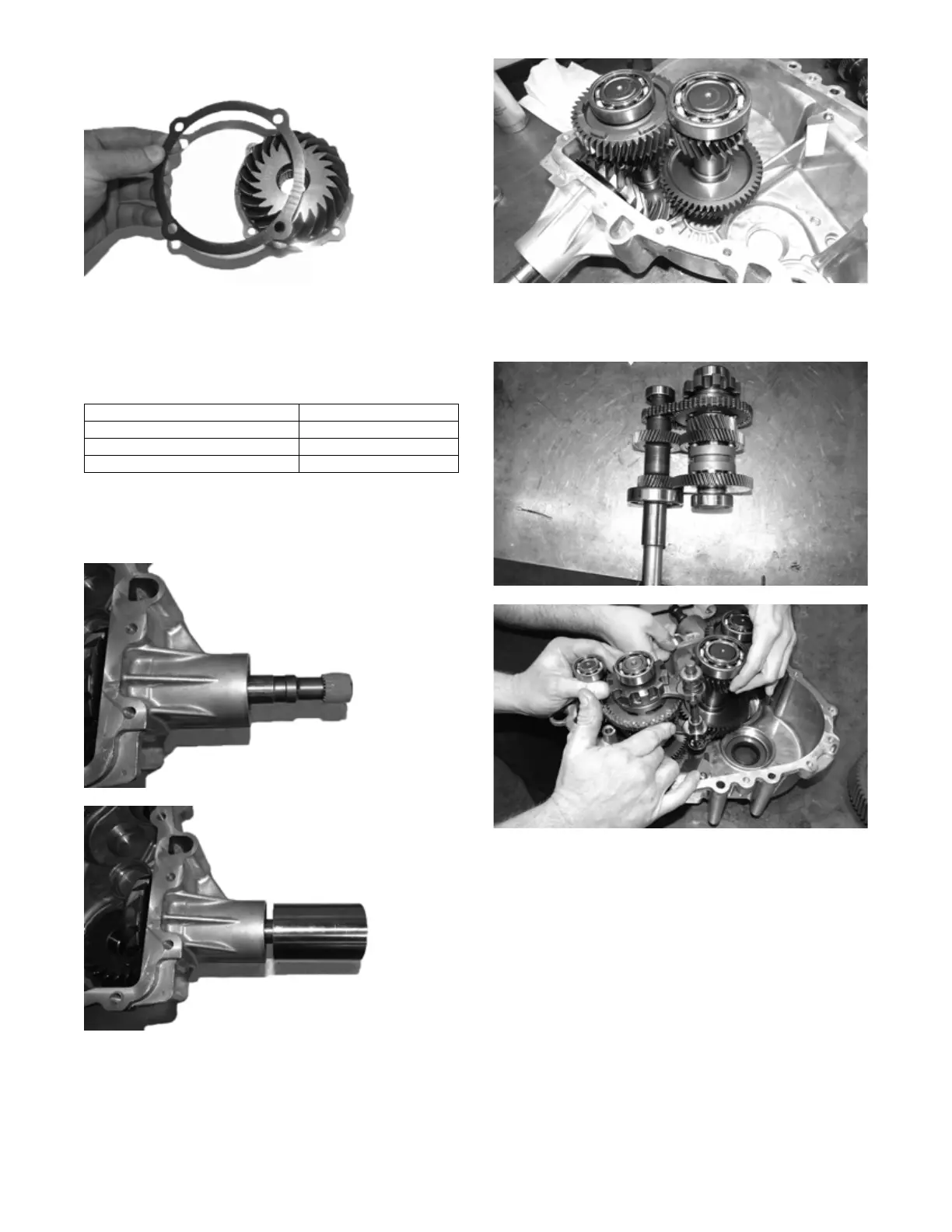

8. If backlash measurement is more than specified,
remove the existing shim and install a thinner shim.
NOTE: Continue to remove, measure, and install
until backlash measurement is within tolerance. Note
the following chart:
9. Tape the splined portion of the pinion shaft to protect
the seal; then using an appropriate seal installer,
install the front output seal so it seats fully past the
chamfer of the case.
TA129
TA130
ASSEMBLING HALVES
1. Install the intermediate shaft and idler shaft into the
case only partially. Do not seat the shafts completely
into the case at this time.
TA056
2. With the aid of an assistant and with the gear forks in
position, install the input shaft and reverse shaft with
chain as an assembly.
TA058
TA059
NOTE: Make sure the shift fork pins face the
installer.
NOTE: Engage all four shafts before seating them
simultaneously into the case.
NOTE: Ensure the chain stays engaged in the
sprocket teeth.
NOTE: The shift shaft rail should remain unseated
at this point.
3. Install the shift drum into the case; then engage the
fork tabs into the grooves in the shift drum.
Backlash Measurement Shim Correction
Under 0.076 mm (0.003 in.) Increase Shim Thickness
At 0.076-0.241 mm (0.003-0.0095 in.) No Correction Required
Over 0.241 mm (0.0095 in.) Decrease Shim Thickness
