38
MOD140A
MOD136

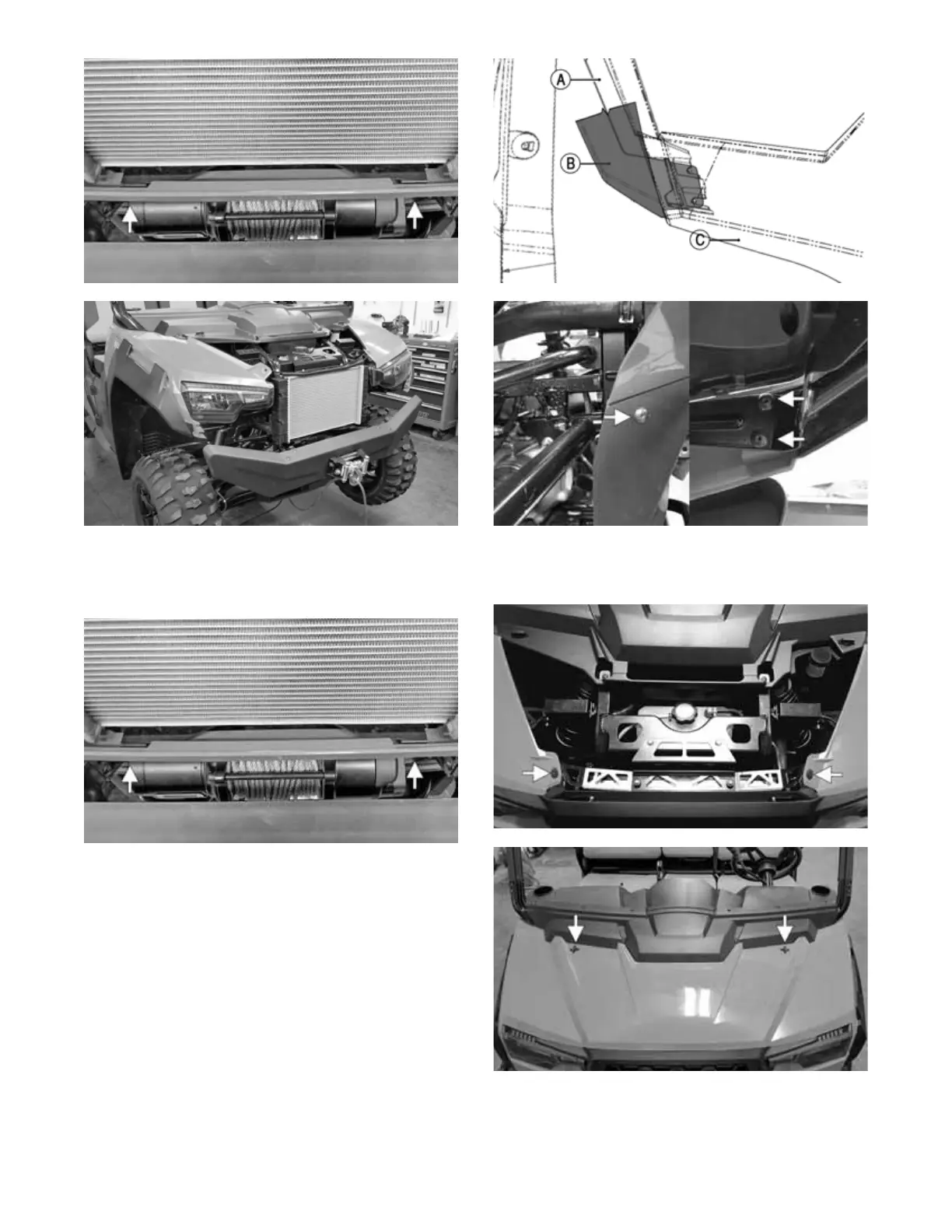

INSTALLING
1. Place the front fascia into position and secure the two
T30 shouldered cap screws.
MOD140A
2. .Install the two T20 cap screws through the (A)
fender, (B) fender flare, and headlight bracket (not
identified) into (C) front fascia/grille; then install the
remaining T20 cap screw securing the front fascia to
the lower grille. Repeat for opposite side.
MOD138A
MOD135A
5. Install the upper grille and tighten the two T30 cap
screws; then install the hood and secure the 1/4-turn
locks.
MOD044C
MOD008A
