94
MF181A
MF182

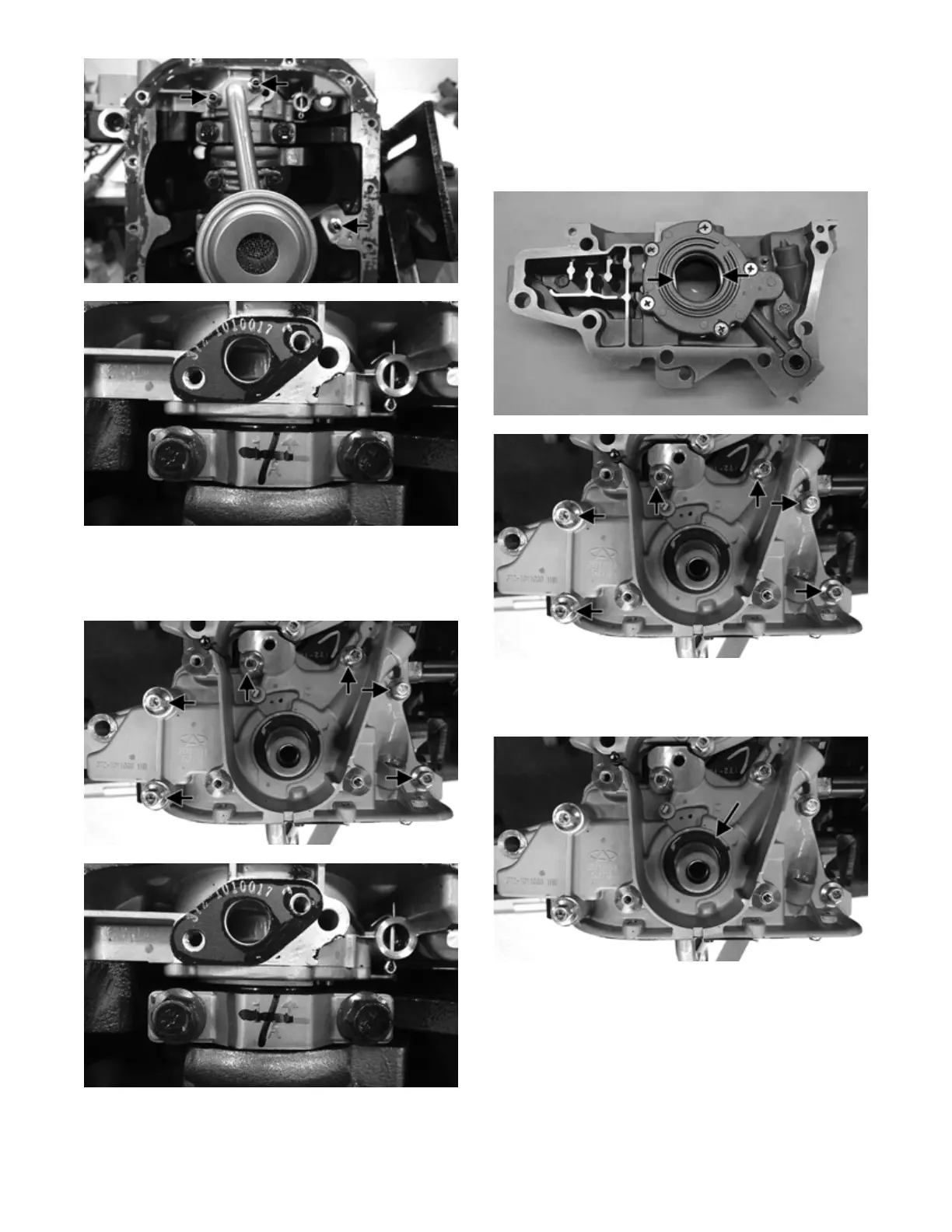

5. Remove the cap screws securing the oil pump assem-
bly to the engine block and remove the oil pump
assembly. Account for two rubber weatherstrip seals
and a case gasket.
MF180A
MF182
INSTALLING OIL PUMP
1. Align the flats on the inner rotor bore with the flats
on the crankshaft; then using a new gasket and ser-
viceable weatherstrip seals, install the oil pump
assembly onto the crankshaft and secure to the
engine block with the cap screws. Tighten to specifi-
cations.
MF186B
MF180A
2. Using a suitable seal driver, drive a new crankshaft
oil seal (D) into the housing bore (lips facing in),
until the seal face is flush with the oil pump housing.
MF180A
3. Using a new gasket (C), place the oil pump pick-up
assembly (B) into position; then applying a drop of
red Loctite to the threads of the cap screws (A),
secure the oil pump assembly to the oil pump and
engine block. Tighten securely.
