Trakm8 Install Ford Transit
CANbus Pick Up
OBD

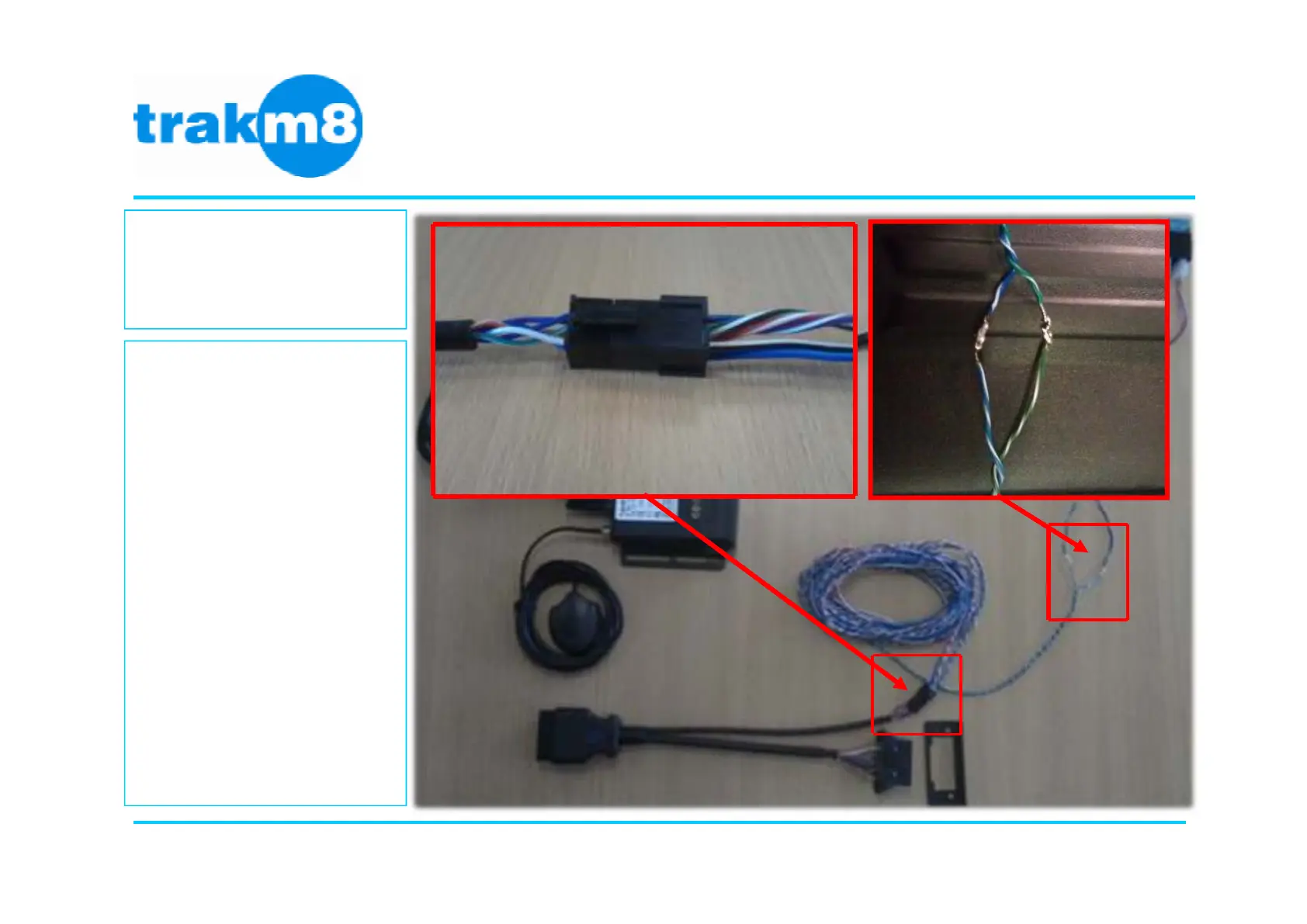

• Cut the T-Piece extension cable
to the required length and then
identify the green/white and
blue/white twisted pair of wires
on both the T-Piece and the
extension cable and solder
accordingly:
Blue/White to Blue/White
Green/White to Green/White
• Ensure the T-Piece is
connected to the extension
cable as shown.
• Tape exposed joints with self
amalgamating and insulation
tape.
