Trakm8 T8 - Beacon Cable Routing

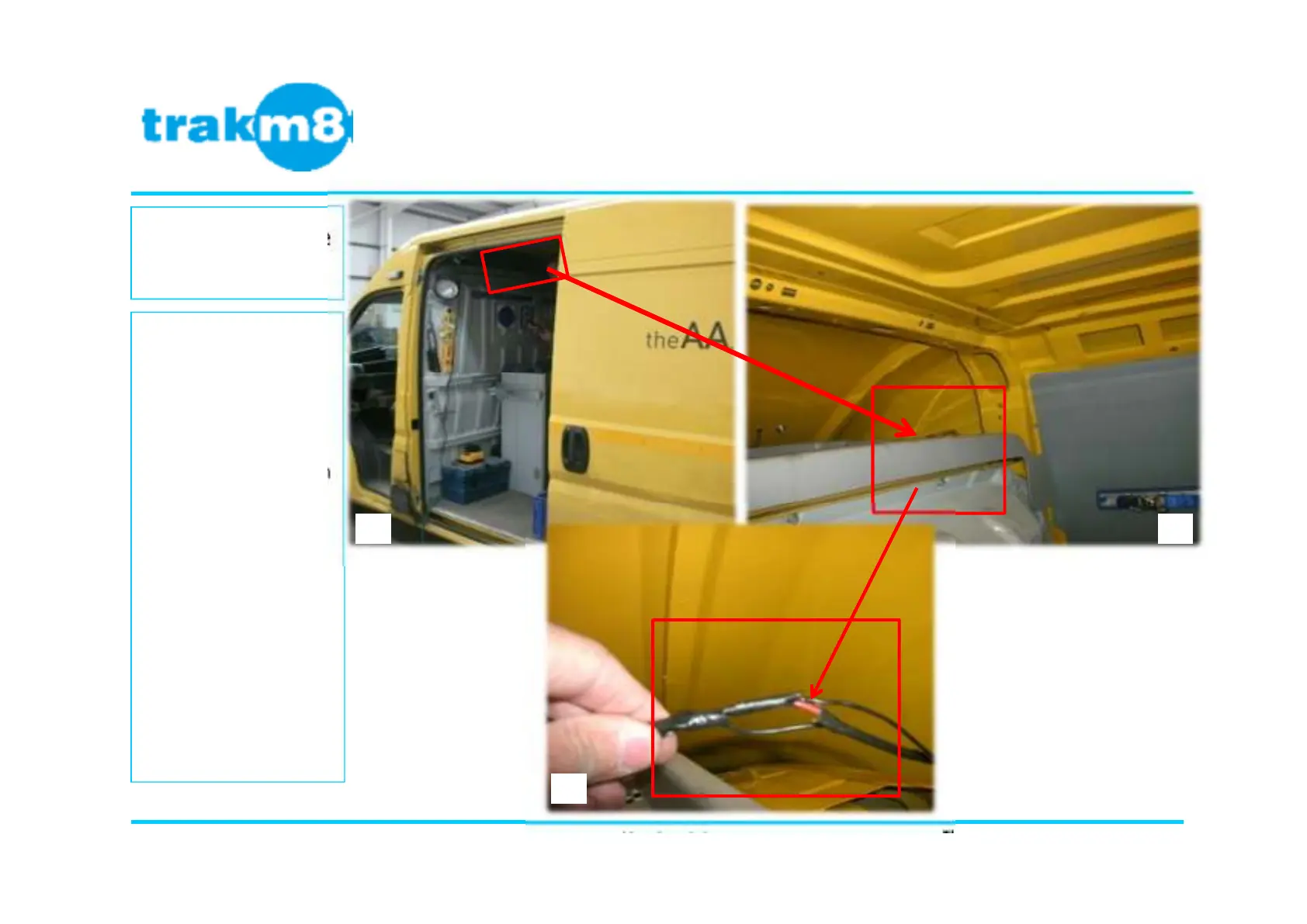

• Identify the beacons
cable that runs within
the storage shelf
located in the back of
the vehicle.
• The beacons wire is in
the 2 core cable that
runs to the beacons
side light above the
driver side door.
BEACONS RED to T8
PURPLE (Input 0)
• Extend the beacons
wire to the T8 at the
front of the vehicle.
