Trakm8 T8 - Trakm8 CANbus (T-Piece) Installation

Complete kit
(Pre-installation)
OBD
Trakm8 CANbus (T-Piece) Install
Page 5 of 27
Version 1.0
The AA Signs– Company Confidential

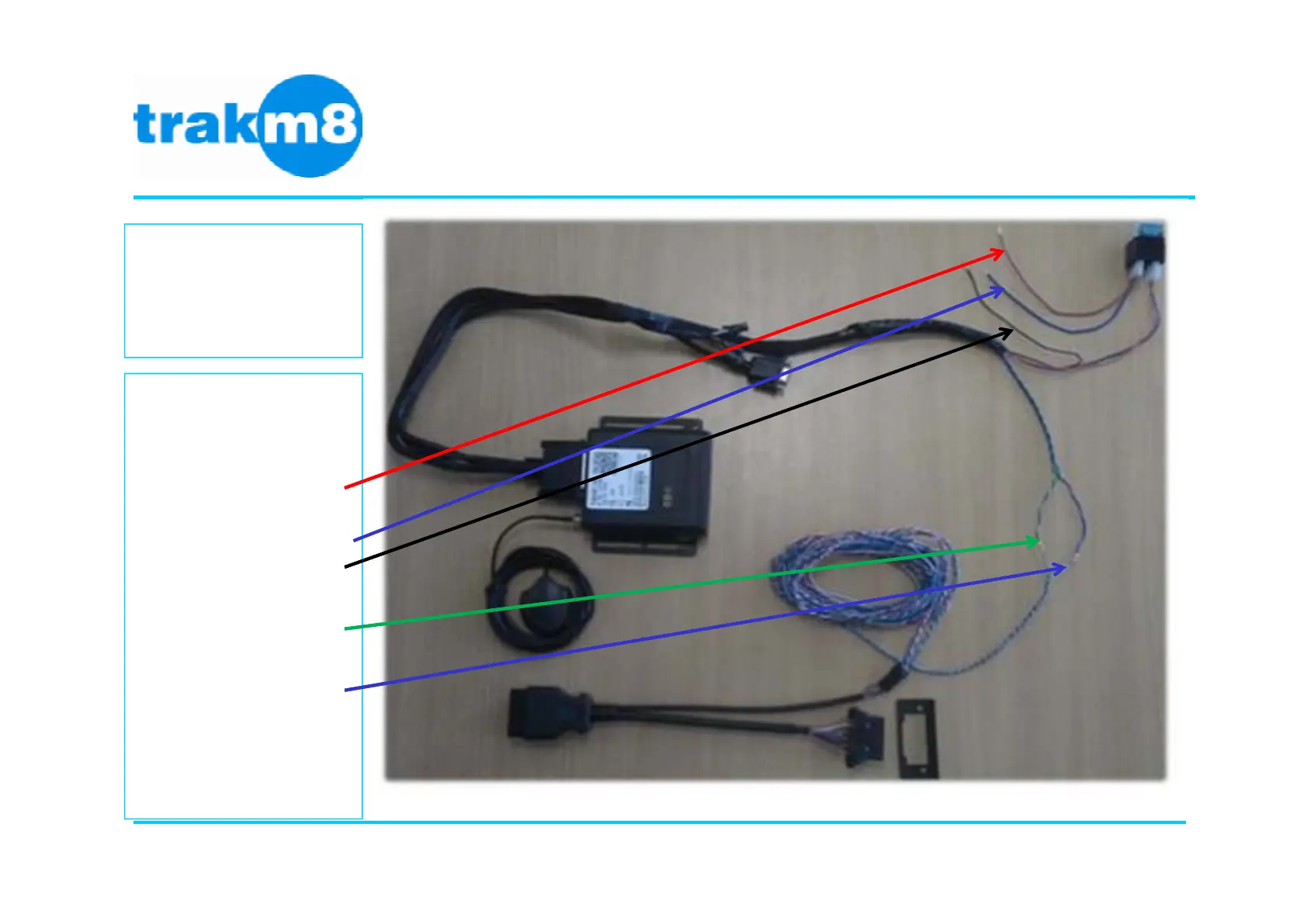

This image shows the wires
required for installation
(Also see wiring notes on
page 26)
• Red = Live (12volts on
vehicle)
• Blue = Ignition on vehicle
• Black = Earth to a
chassis bolt on vehicle
• Green/White (part of
twisted pair) = CANbus
High
•Blue/White (part of
twisted pair) = CANbus Low
