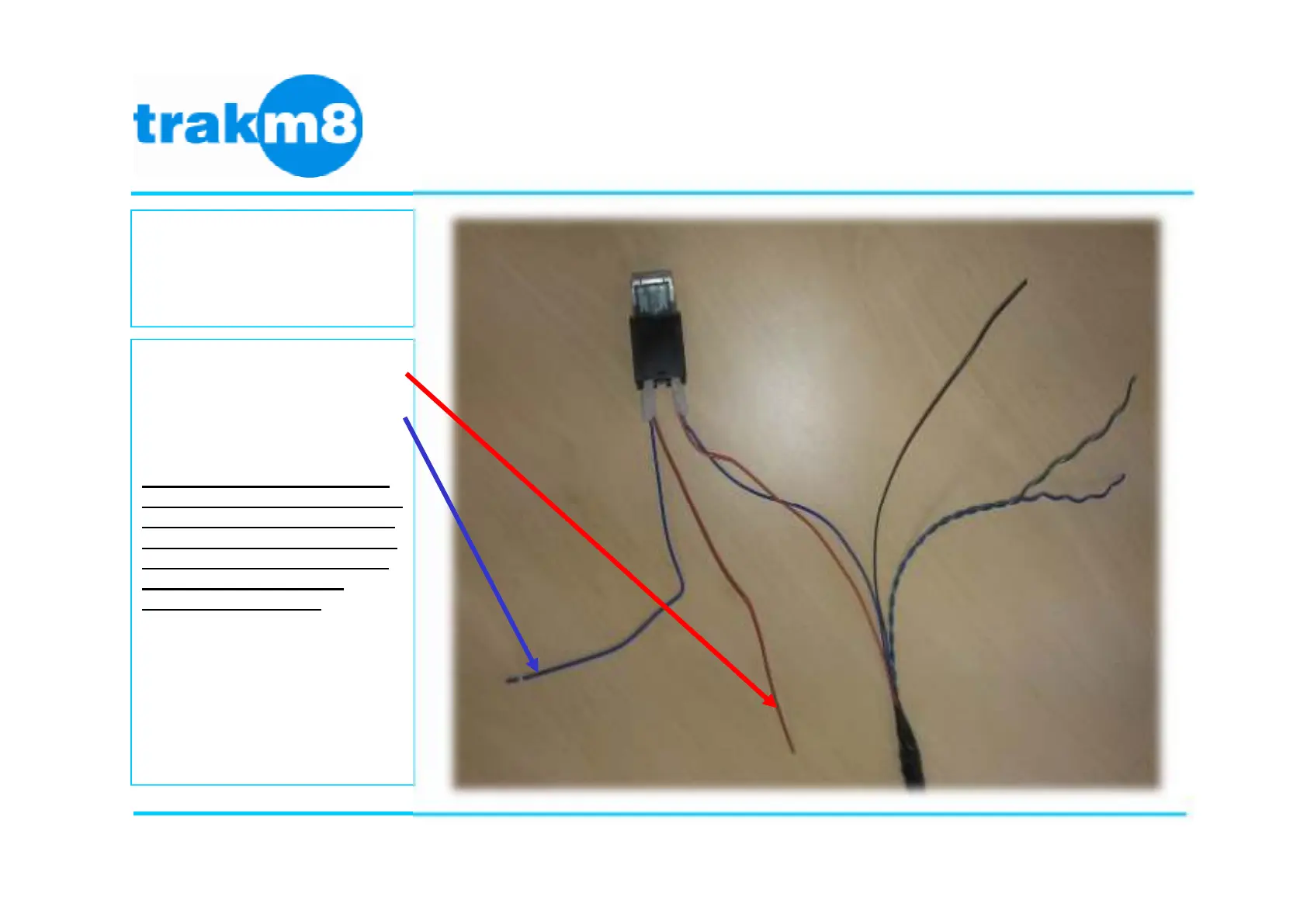

12Volt Positive = Red permanent
wire on TM8 loom
True Ignition = Blue ignition wire
on TM8 loom
Ignition = 12Volts on engine
running and 0Volts on phase 2
ignition engine off. If it is not
possible to gain access to this
wire then 12Volts on stage 2
ignition without engine
running is secondary
The fuse holder should be located
as close as possible to the power
‘pick – up’ point as possible.
(Ideally no less than 4 inches).
Correct fuse ratings must always
be used.
Page 23 of 27
Power Pick Up Connections
The AA Signs– Company Confidential
Version 1.0
Trakm8 Install Ford Transit
