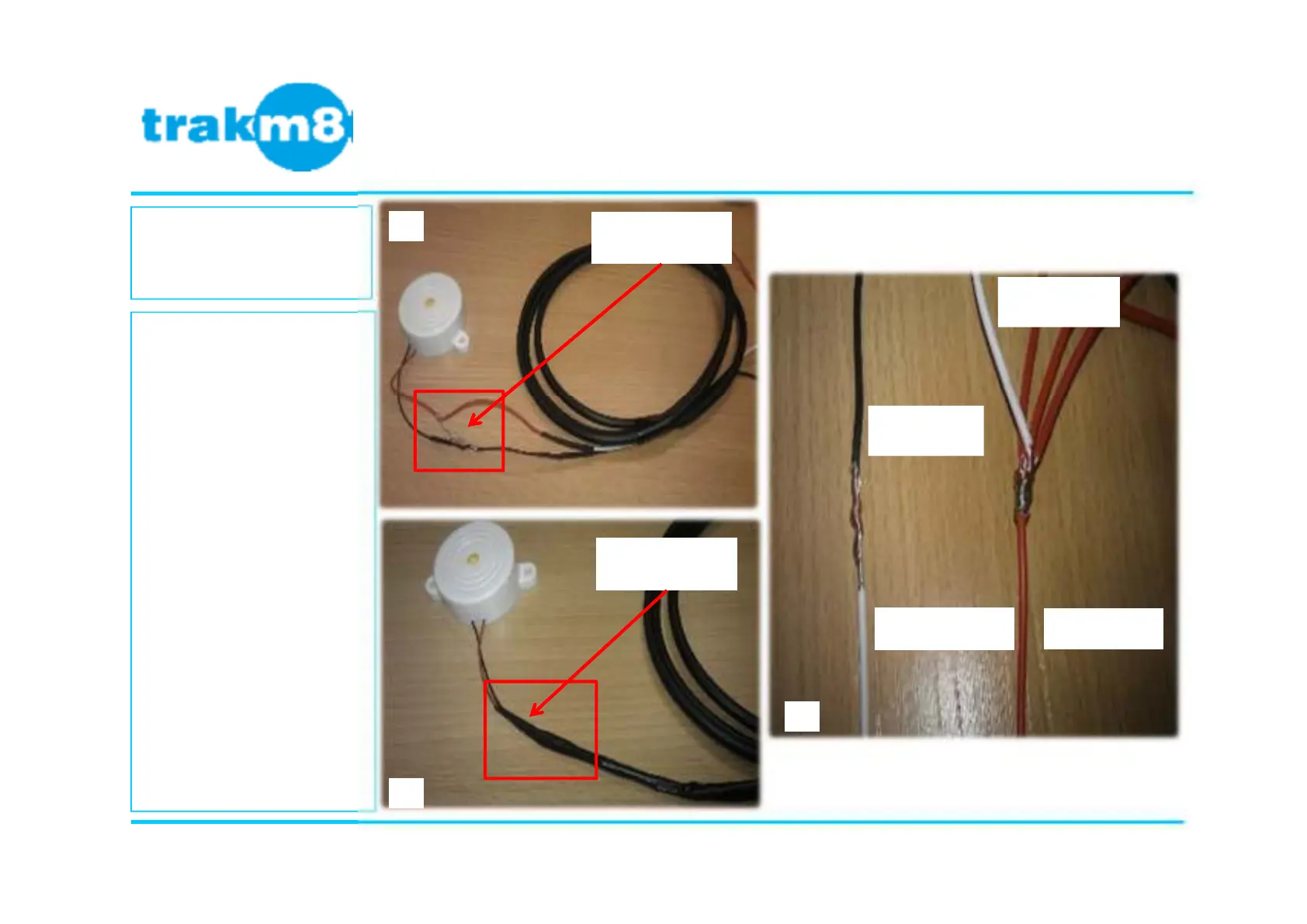

• Strip the buzzer RED and
BLACK wires as shown.
• Solder the 1K resistor in
parallel across the buzzer
RED and BLACK wires.
• Cut and remove the 2 pin
molex connector from the
buzzer.
Buzzer BLACK to T8
WHITE/ORANGE
Buzzer WHITE to T8 RED
(POSITIVE)
• Solder the connections
and insulate firstly with
self amalgamating tape
then cover with PVC tape.
Page 16 of 27
Buzzer
Wiring
The AA Signs– Company Confidential
Version 1.0
Trakm8 Install Ford Transit
1K resistor in
series
Buzzer
BLACK
T8
WHITE/ORANGE
T8 RED
(POSITIVE)
Buzzer White
(Positive)
Insulate all
connections
1
2
3
To Next Page
