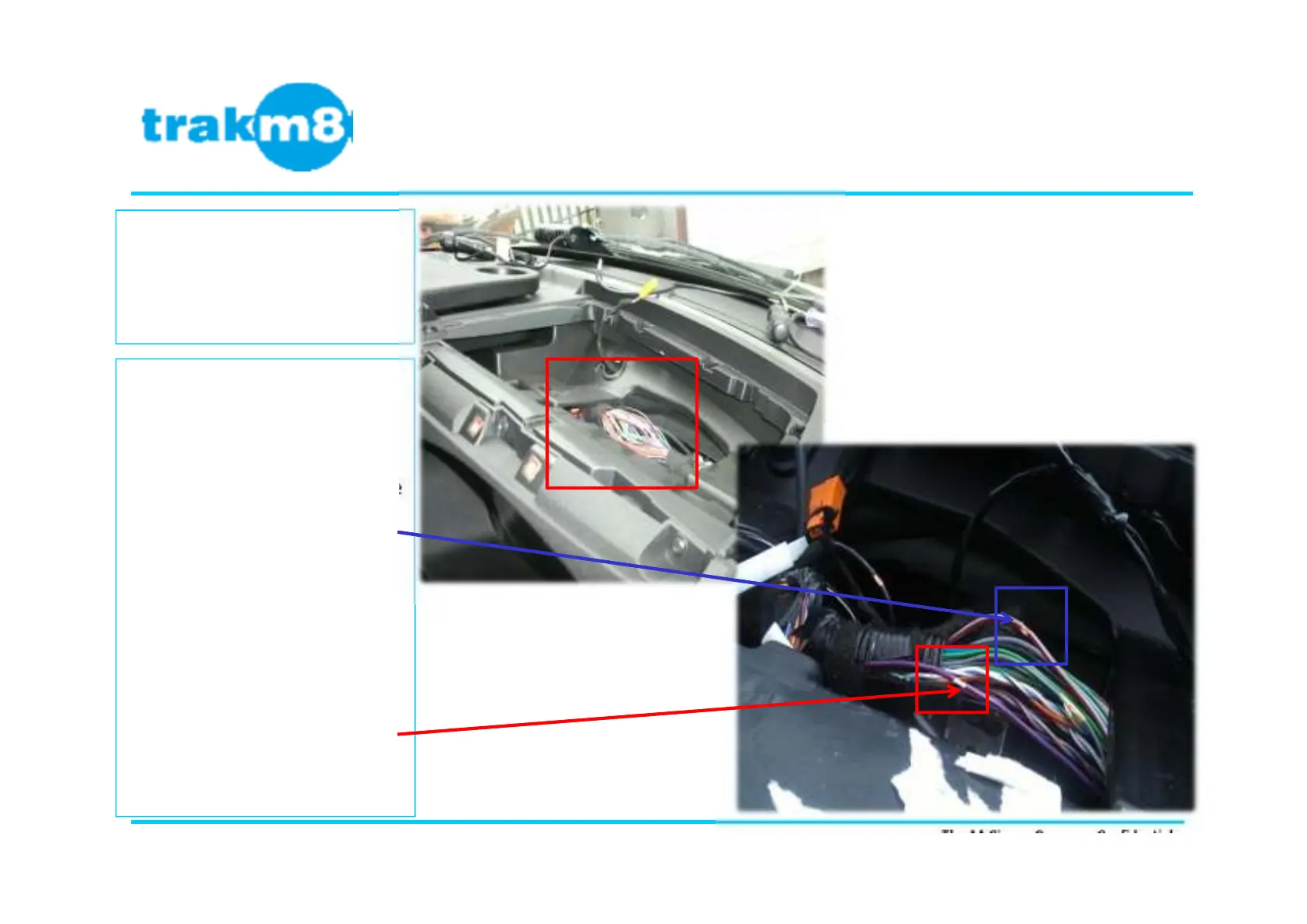

Ignition = Blue ignition wire on
Trakm8 loom = 1 Amp Fuse
The ignition feed is located in the
loom that runs behind the top of the
clocks.
Ignition = GREY/RED
Positive = Red permanent wire
on Trakm8 loom = 2 Amp Fuse
The ignition feed is located in the
loom that runs behind the top of the
clocks.
Positive = RED/VIOLET
Test all connections with multi-
meter.
Page 22 of 27
Power Pickup Points
The AA Signs– Company Confidential
Version 1.0
Trakm8 Install Ford Transit
