Trakm8 T8 - T-Piece Connection to OBD Socket

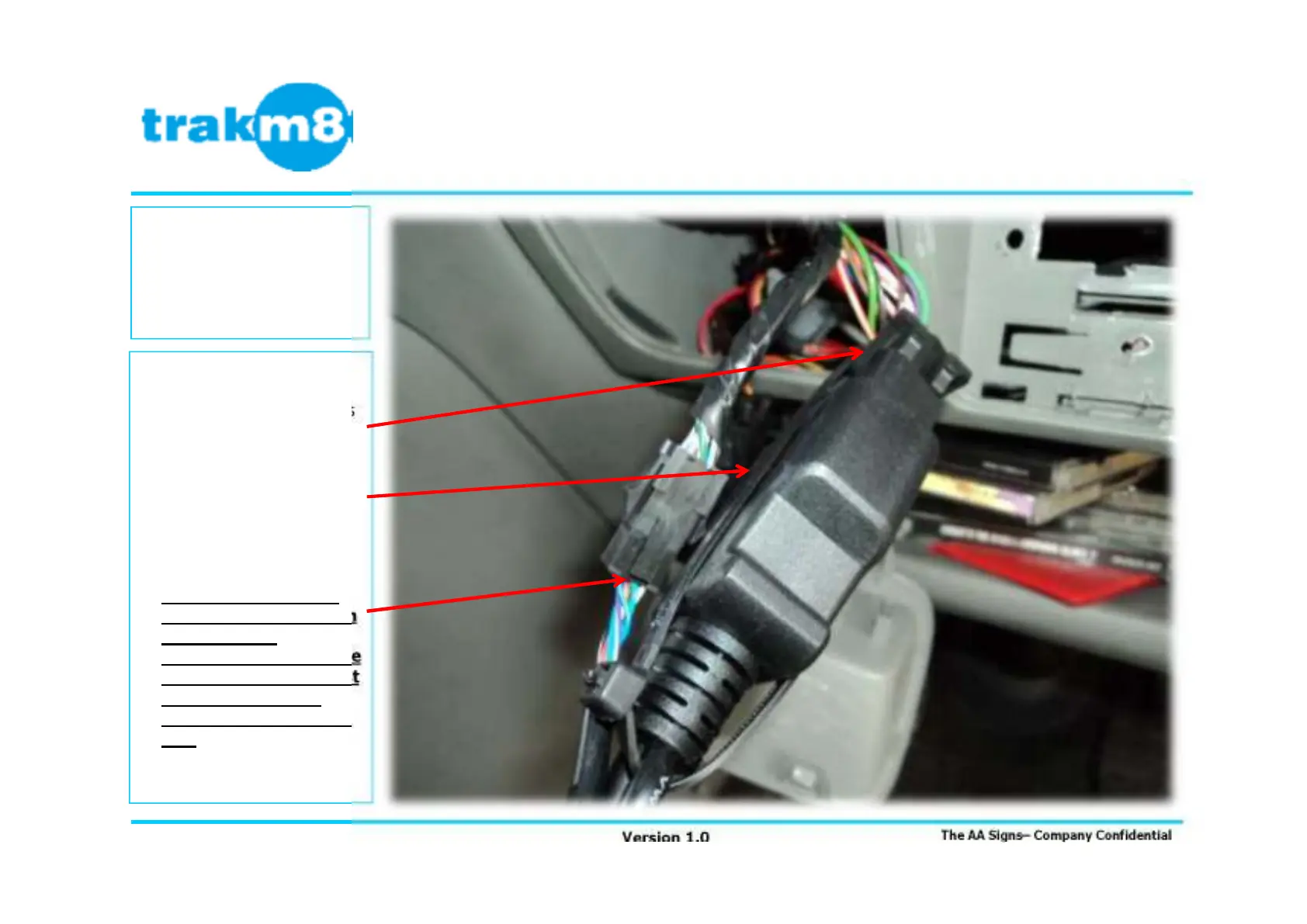

• Connect the vehicle OBD
socket into the T-Piece as
shown.
• Ensure that the OBD
socket locates firmly into
the T-Piece and provide
additional security with a
cable tie
• NB: The T-Piece CAN
extension cable shown
alongside the
connector is part of the
Trakm8 loom and must
be routed with the
OBD cable to the Main
TCU
Page 12 of 27
Attach the T-Piece to
the vehicle OBD
socket
