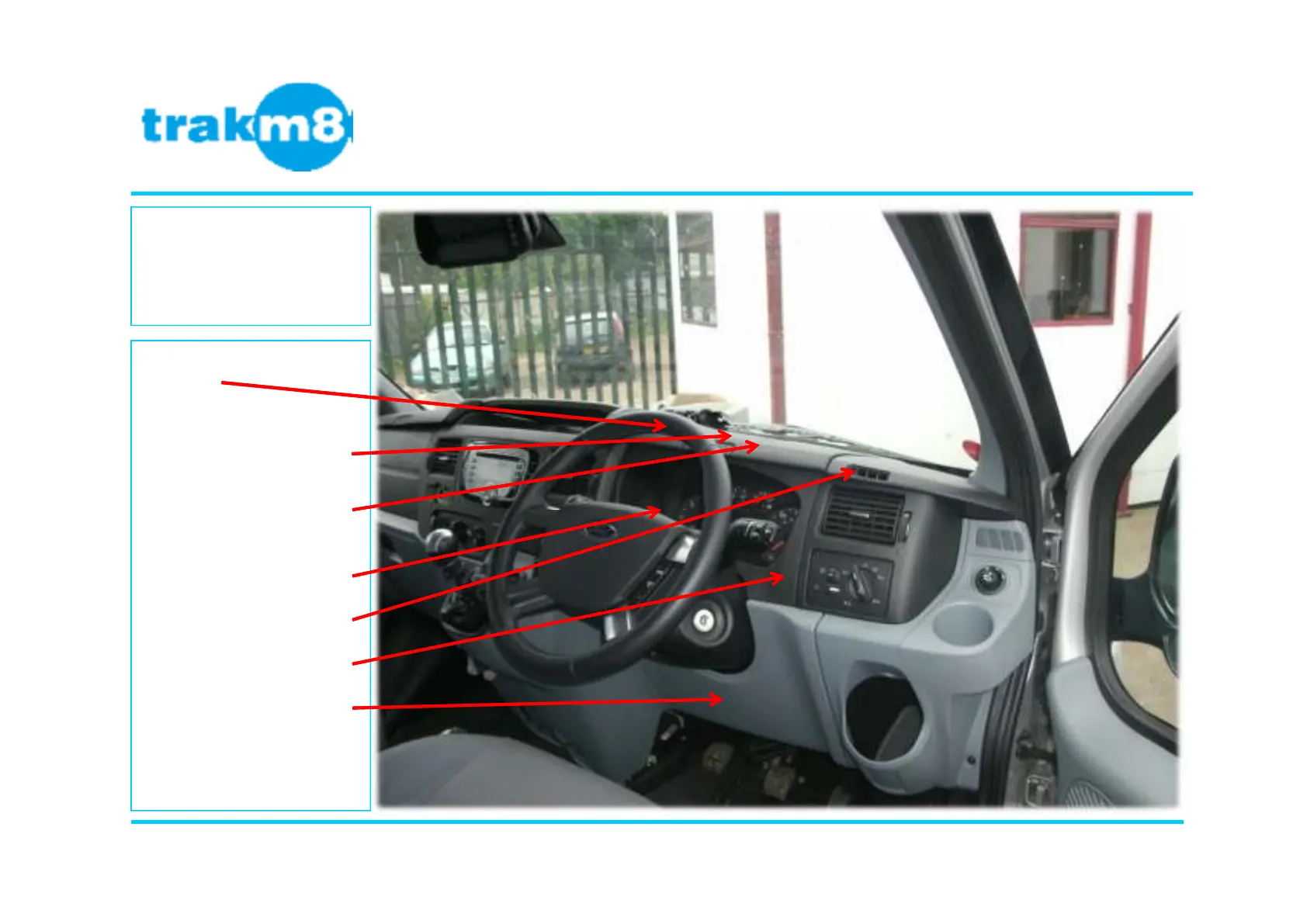

The key points are:
• Buzzer
• Main TCU location
mounted under glove box
behind clocks.
• Power pick up points in
loom under glove box
behind clocks.
• Driver Feedback Module
in front of clocks
• GPS Antenna location
above heater vent.
• Push button enclosure
• CANbus pick up from T
Piece at OBD socket.
