TRAMEX X5 Series User Manual

CONCRETE MOISTURE ENCOUNTER X5 USER GUIDE
24
HOLE LINER
INSTRUCTION
For ASTM F2170 Compliance

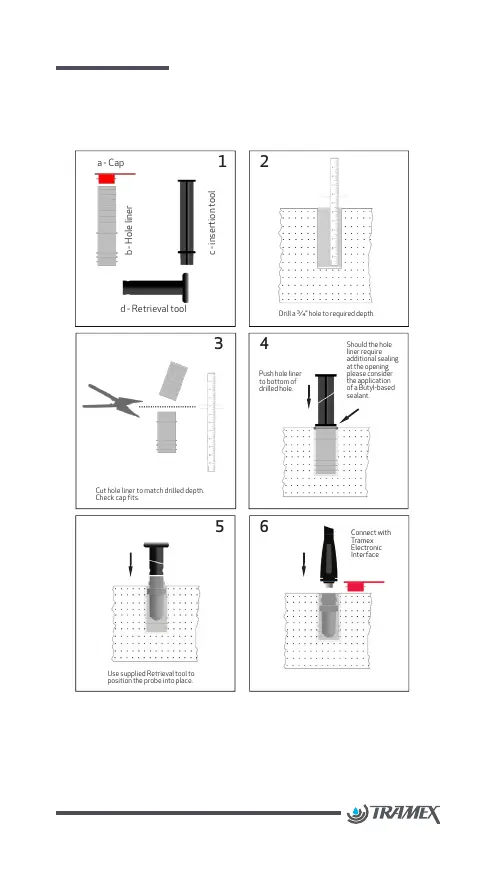

Drill a ¾" hole to required depth.
Cut hole liner to match drilled depth.
Check cap fits.
Use supplied Retrieval tool to
position the probe into place.
Push hole liner
to bottom of
drilled hole.
Connect with
Tramex
Electronic
Interface
For more information please visit: www.tramexmeters.com
Tramex 2014. All right reserved. | HL-INS Ref: 1.2
a - Cap
b - Hole liner
c - insertion tool
d - Retrieval tool
1 2
3 4
5 6
Should the hole
liner require
additional sealing
at the opening
please consider
the application
of a Butyl-based
sealant.
