Horizontal Sensor Relocation:
Note: The A2L sensor does not need to be relocated for
upflow applications. It comes installed from the
factory in the upflow position.

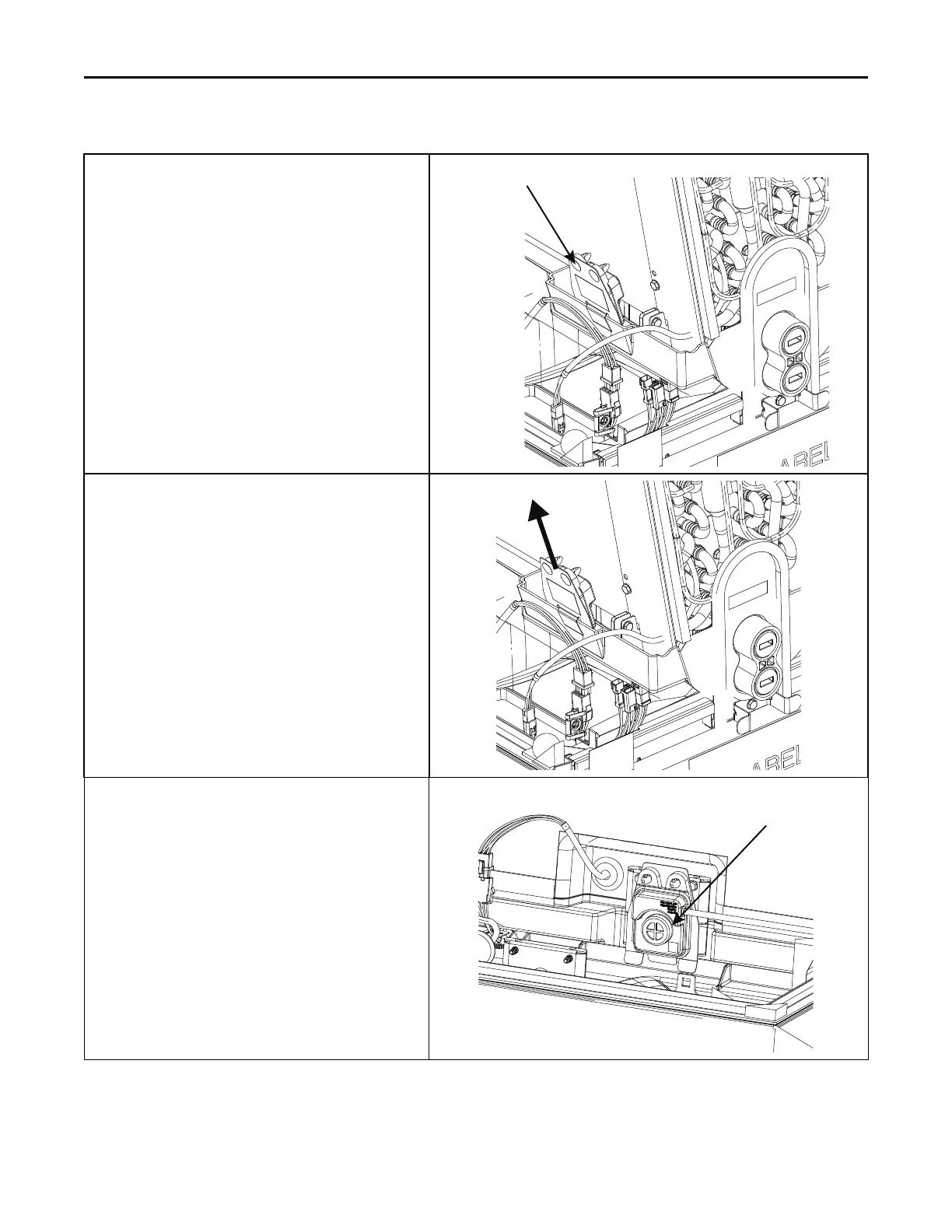

1. Remove the coil panel and locate the A2L sensor on the
upflow drain pan.
2. Remove the A2L sensor from the drain pan by pulling
directly up.
3. Clip the sensor onto the blower deck just in front of the
roto latch.
• For horizontal right applications, clip the sensor on
the right side of the unit.
• For horizontal left applications, clip the sensor on the
left side of the unit.
Note: If the blower needs to be removed after this point, the
A2L sensor will need to be removed and set aside
before the blower is removed.
