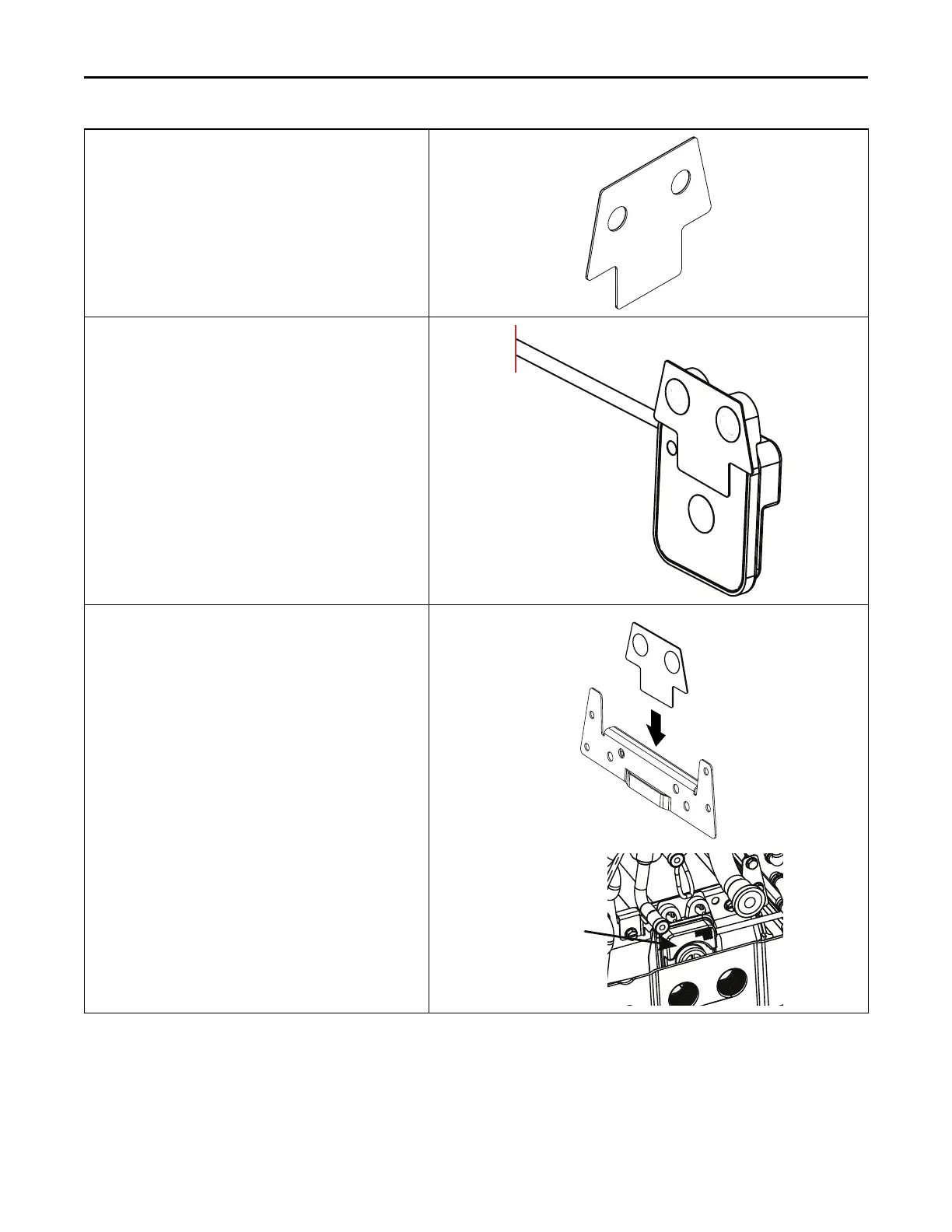

4. Locate the downflow sensor bracket in the
Documentation package.
5. Secure the A2L sensor to the downflow bracket using the
push pins.
6. Place the tab of the downflow bracket into the slot on the
coil support.
7. Unbundle refrigerant sensor harness. Neatly route across
front of coil using field-supplied wire ties. Connect
harness to refrigerant sensor.
