Dimensions and Weights
CLCH-SVX009J-EN 15

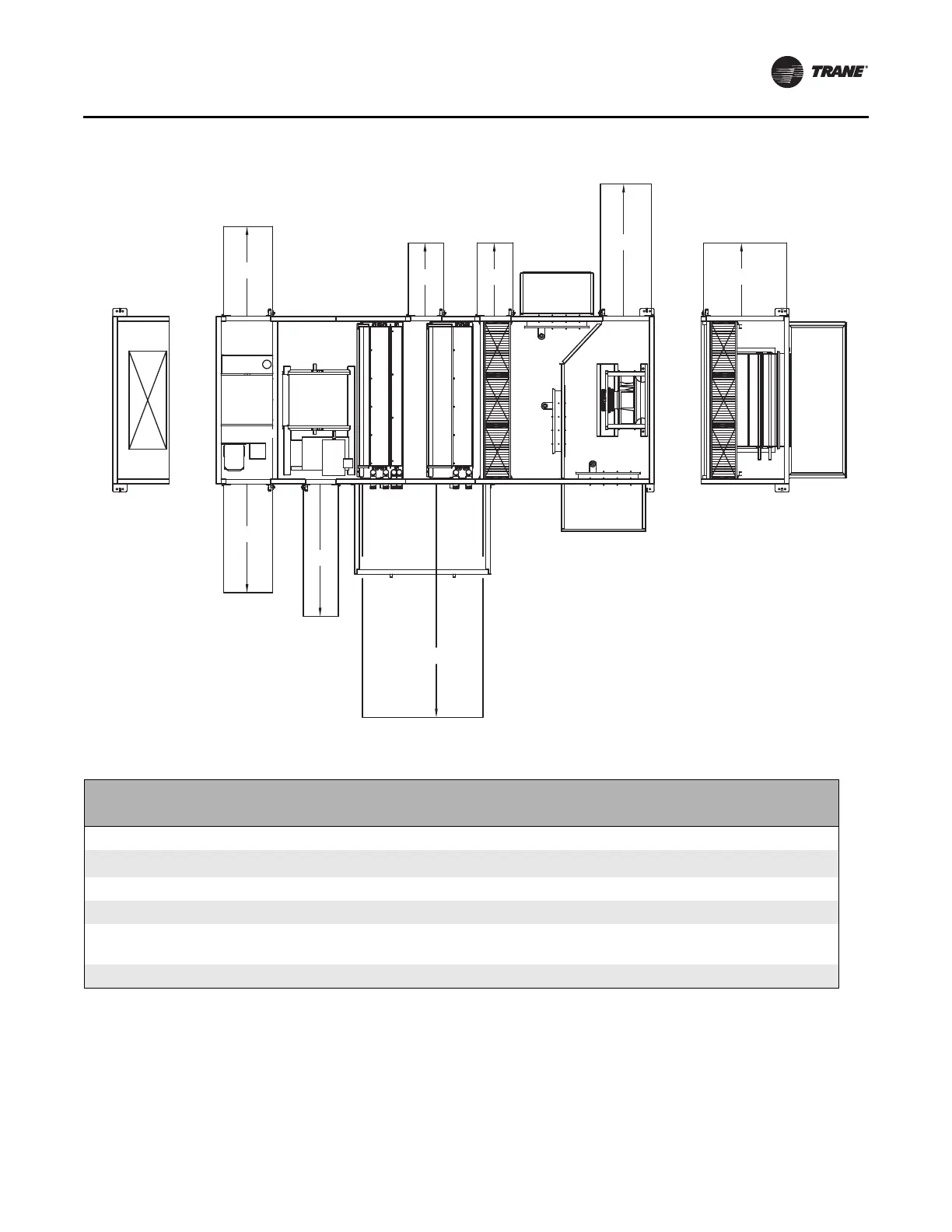

Figure 4. Service clearances for outdoor units
Discharge Plenum
Electric
Heat
VFD
C
B
A
D
E
E
E
F
Fan
Hood
Hood
Hood
Pipe
Cabinet
Control Box
Coil Coil
Economizer/
Filter
Table 2. Service clearance dimensions (inches for outdoor units)
Component
Unit Sizes
3 6 8 10 12 14 17 21 25 30
A Coil Pull 49.00 62.00 66.00 78.00 86.00 86.00 94.00 94.00 96.00 109.00
B
Fan Access, horizontal
unit (motor side)
48.00 48.00 48.00 51.00 54.00 58.00 61.00 61.00 66.00 66.00
C Controls Access 56.00 56.00 56.00 56.00 56.00 56.00 56.00 56.00 56.00 56.00
D Return Fan Door 48.00 48.00 48.00 51.00 54.00 58.00 61.00 61.00 66.00 66.00
E
Filter (mixing box/
economizer, opposite coil
connection side)
30.00 34.00 32.00 32.00 30.00 35.00 35.00 35.00 41.00 41.00
F Electric Heat 48.00 48.00 48.00 48.00 48.00 48.00 48.00 48.00 48.00 48.00
Note: At a minimum, the above clearance dimensions are recommended for regular service and maintenance. Refer to as-built submittal for locations
of items such as filter access doors, coil, piping connections, motor locations, etc. Sufficient clearance must be provided on all sides of unit for
removal of access panels, plug panels, or section-to-section attachment brackets. Clearance for starters, VFDs, or other high-voltage devices
must be provided per NEC requirements.
