Installation - Mechanical
24 CLCH-SVX009J-EN
• Never stack the pipe cabinet or inlet hoods on the unit
as it is being lifted.
• Do not attach the intake/exhaust hood or pipe cabinet
to the unit prior to lifting the unit. Doing so may
damage the equipment. Attach the hoods to the unit
only after all sections are in place.
• All shipping supports and crating on the face of the
sections must be removed to permit proper fit-up and
sealing of the surfaces. Dispose of properly.
Lifting Hoods and Pipe Cabinets
Unit Placement and Assembly for
Indoor Air Handlers
• If the air handler is ordered with a mixing box or angle
filter section, it will arrive in sections. Some assembly
may be required. For details, see:
• Section assembly; see “Unit Assembly for Indoor
Units,” p. 27.
• Ceiling-suspended indoor unit assembly; see “Ceiling
Suspension for Indoor Units,” p. 25

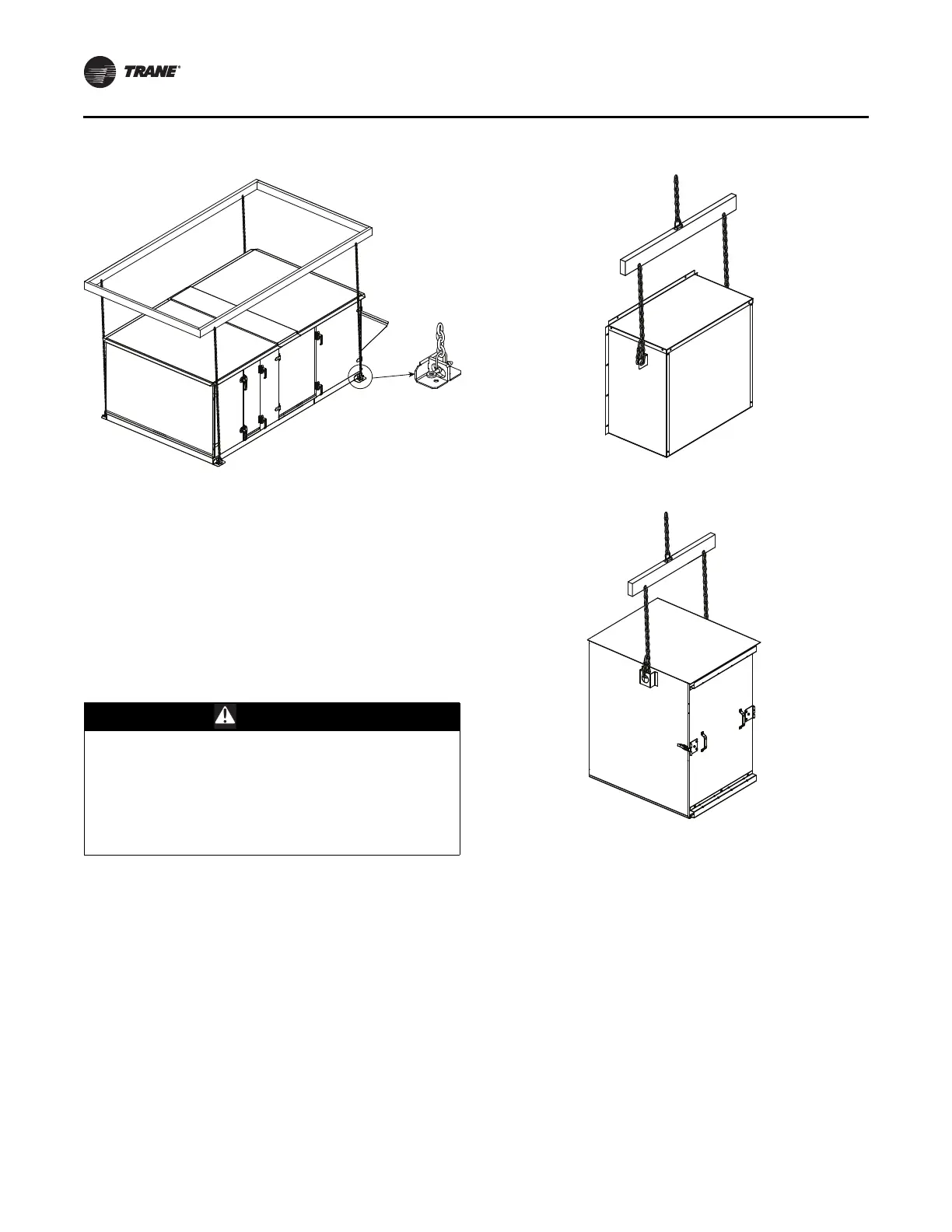

Figure 18. Lifting lug detail
WARNING
Risk of Unit Dropping!
Placing, assembling, and/or suspending more than one
module/subassembly at a time could result in module/
subassemblies dropping and crushing technicians
which could result in death, serious injury, or
equipment damage. Always place, assemble, and
suspend modules/subassemblies one at a time.
Rigging and spreader
bars furnished
by others
Figure 19. Lifting exhaust hood
Figure 20. Lifting pipe cabinet
