20 CLCH-SVX009J-EN
Installation - Mechanical
Lifting and Rigging
Remove Shipping Tie-Downs
Prior to unit placement, remove the shipping tie-downs.
See Figure 5 thru Figure 10.
Horizontal FC Fan 3-10
1. Remove screws attaching shipping protection brackets
from floor.
2. Remove shipping protection brackets through the
door.
Vertical FC Fan 3-10
1. Remove screws attaching shipping protection brackets
from center of isolation base to casing mounting
bracket.
2. Remove shipping protection brackets through door.

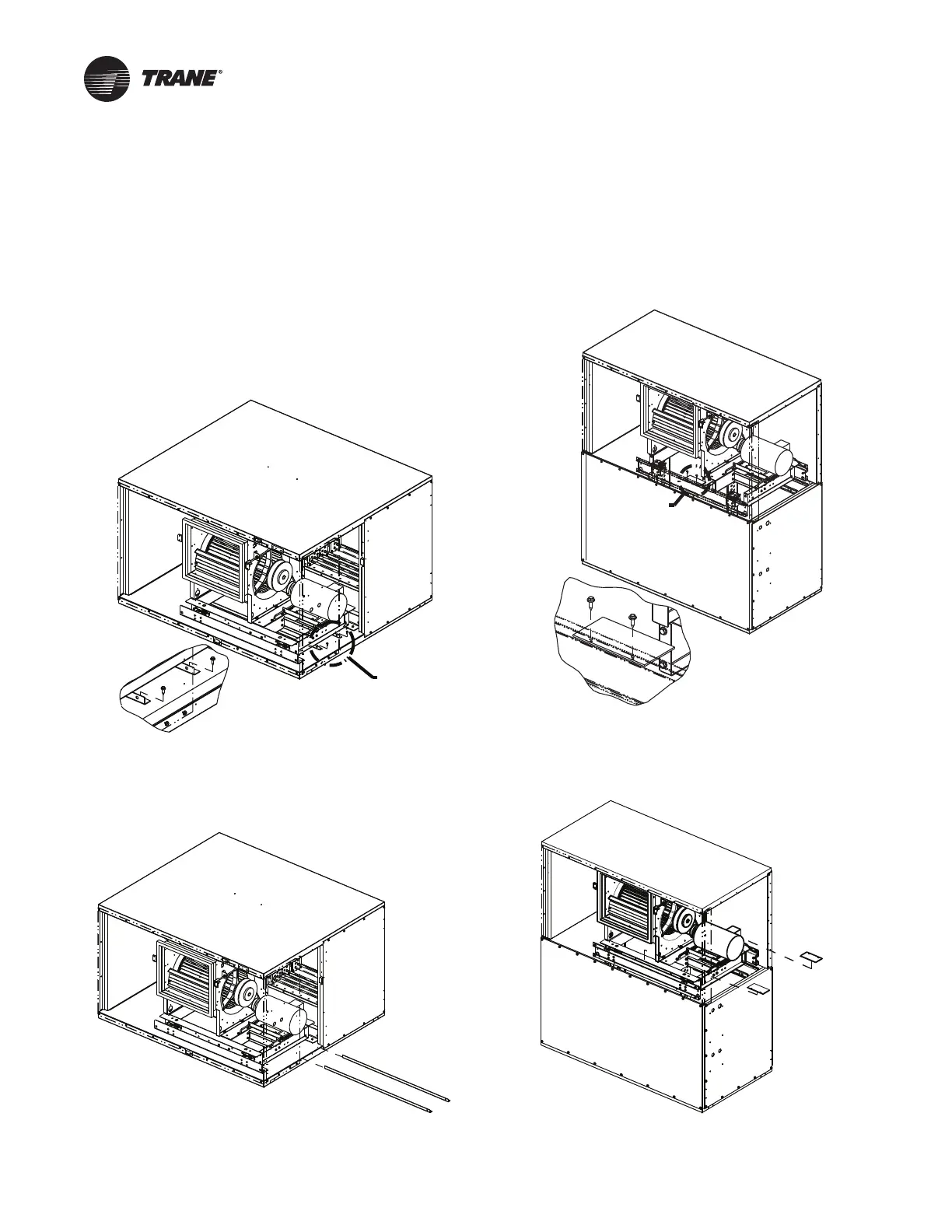

Figure 5. Shipping tie-down removal for horizontal FC
fan 3-10 - remove screws
Figure 6. Shipping tie-down removal for horizontal FC
fan 3-10 - remove bracket
Detail A
See Detail A
Figure 7. Shipping tie-down removal for vertical FC fan
3-10 - remove screws
Figure 8. Shipping tie-down removal for vertical FC
fan 3-10 - remove brackets
Detail A
See Detail A
