CLCH-SVX009J-EN 5
Introduction
Overview of Manual
Use this manual to install, startup, operate, and maintain
the Performance Climate Changerâ„¢ air handler model
UCCA. Carefully review the procedures discussed in this
manual to minimize installation and startup difficulties.
Nameplate
Each Performance air handler section includes one or
more nameplate/label as shown in the figure below, that
identifies the type of section and functional components,
customer tagging information, the unit serial number, the
unit order number, the build-section position for
installation, and the unit model number.
Note: The unit serial number and order number is
required when ordering parts or requesting service
for a Trane air handler.

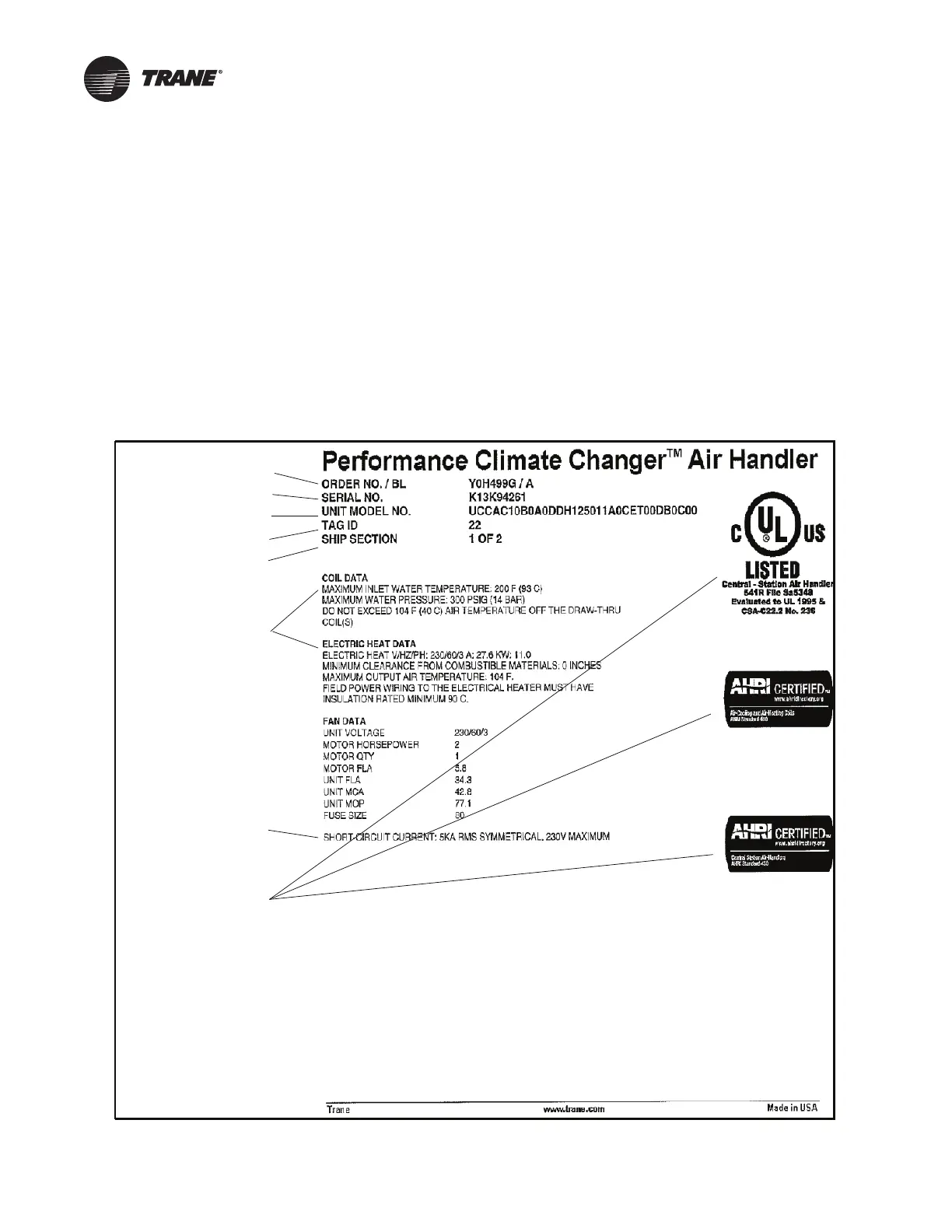

Figure 1. Performance air handler section nameplate
Agency listings and/or
agency certifications
Trane order number
Unit level serial number
Service model number
Unit tagging
Section location
Functional section type
Notes and additional
section information
