Installation - Mechanical
26 CLCH-SVX009J-EN
• For parallel-to-airflow channels, size channels based
on a four-point load distribution.
• For perpendicular-to-airflow channels, size channels
based on the load distribution of the individual
sections and install the channels so that both ends of
every section are supported.
Using Integral Base Frame
If a factory-provided integral base frame is used for ceiling
suspension, the individual sections and/or subassemblies
will have base frame shipping splits and base frame lifting
lugs.
While using the base frame for ceiling suspension:
• Suspend the unit (on both sides of the unit) at each
shipping split lug and on the four corners of the unit as
shown in the Figure 24. See Figure 22 for lug hole sizes
and location.

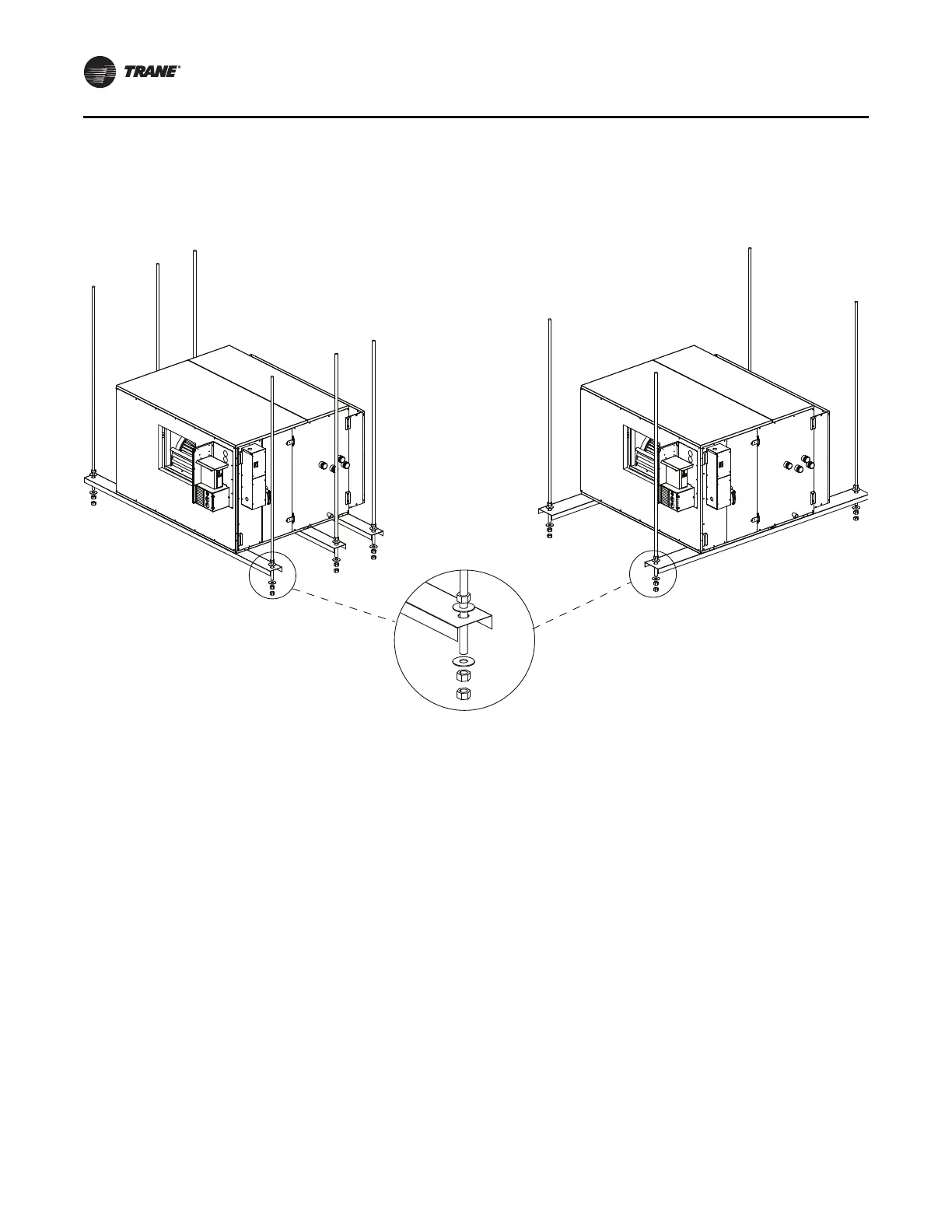

Figure 23. Typical ceiling suspension for parallel-to-airflow channels and perpendicular-to-airflow channels
