TEMP.
°C(°F)
Resistance
(k Ohm)
Voltage of
resistance
TEMP.
°C(°F)
Resistance
(k Ohm)
Voltage of
resistance
TEMP.
°C(°F)
Resistance
(k Ohm)
Voltage of
resistance
11(51.8) 8.795 3.165 56(132.8) 1.666 1.231
12(53.6) 8.433 3.116 57(134.6) 1.613 1.201
13(55.4) 8.089 3.067 58(136.4) 1.561 1.172
14(57.2) 7.760 3.017 59(138.2) 1.512 1.143
Resistance at 25°C(77°F): 5 kΩ.

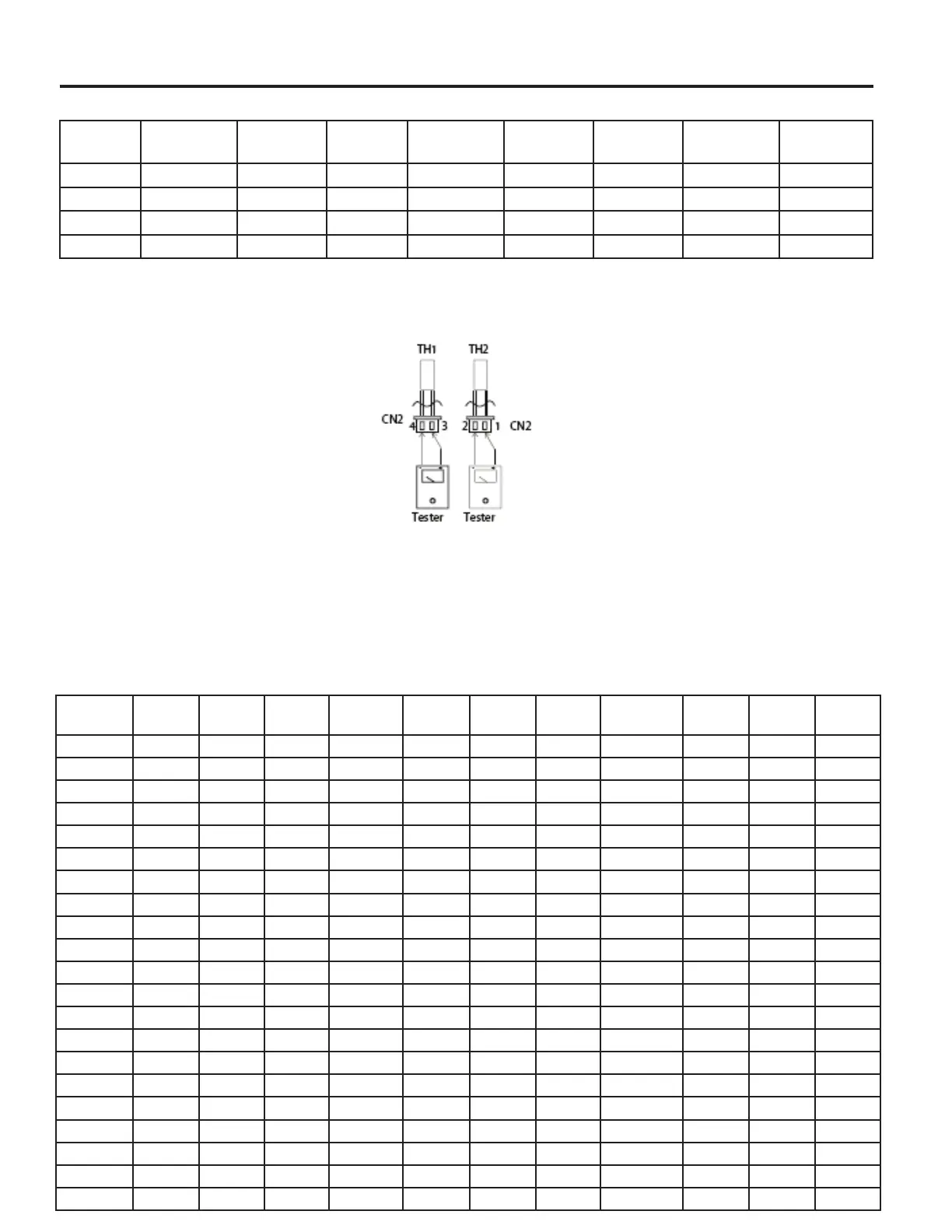

TH1: indoor room temperature sensor and outside air temperature sensor
TH2: indoor exchange temperature sensor and outside exchange temperature sensor
Note: Before measuring resistance, disconnect connectors as shown above.
TEMP.
°C(°F)
R min
(k Ohm)
R(t)
(k Ohm)
R max
(k Ohm)
TEMP.
°C(°F)
R min
(k Ohm)
R(t)
(k Ohm)
R max
(k Ohm)
TEMP.
°C(°F)
R min
(k Ohm)
R(t)
(k Ohm)
R max
(k Ohm)
-30(-86) 283.3 322.9 367.7 24(75.2) 19.36 20.89 22.52 78(172.4) 2.563 2.654 2.745
-29(-84.2) 267.4 304.4 346.3 25(77) 18.55 20 21.54 79(174.2) 2.481 2.567 2.654
-28(-82.4) 252.5 287.1 307.4 26(78.8) 17.77 19.14 20.6 80(176) 2.402 2.484 2.567
-27(-89.6) 238.5 270.9 307.4 27(89.6) 17.03 18.32 19.7 81(177.8) 2.327 2.404 2.483
-26(-78.8) 225.4 255.7 289.8 28(82.4) 16.32 17.55 18.85 82(179.6) 2.254 2.327 2.401
-25(-77) 213.1 241.4 273.3 29(84.2) 15.65 16.81 18.04 83(181.4) 2.183 2.253 2.323
-24(-75.2) 201.5 228 257.9 30(86) 15 16.1 17.27 84(183.2) 2.115 2.182 2.248
-23(-73.4) 190.6 215.5 243.4 31(87.8) 14.39 15.43 16.54 85(185) 2.05 2.113 2.176
-22(-71.6) 180.3 203.6 229.8 32(89.6) 13.81 14.79 15.34 86(186.8) 1.985 2.047 2.109
-21(-69.8) 170.7 192.5 217 33(91.4) 13.25 14.18 15.17 87(188.6) 1.922 1.983 2.045
-20(-68) 161.6 182.1 205 34(93.2) 12.72 13.6 14.54 88(190.4) 1.861 1.922 1.983
-19(-66.2) 153.1 172.3 193.7 35(95) 12.21 13.05 13.93 89(192.2) 1.802 1.862 1.923
-18(-64.4) 145 163.1 183.2 36(96.8) 11.72 12.52 13.36 90(194) 1.746 1.805 1.865
-17(-62.6) 137.5 154.4 173.2 37(98.6) 11.26 12.01 12.81 91(195.8) 1.692 1.75 1.809
-16(-60.8) 130.3 146.2 163.9 38(100.4) 10.82 11.53 12.29 92(197.6) 1.639 1.697 1.755
-15(-59) 123.6 138.5 155.1 39(102.2) 10.29 11.07 11.78 93(199.4) 1.589 1.646 1.703
-14(-57.2) 117.3 131.3 146.8 40(104) 9.986 10.63 11.31 94(201.2) 1.54 1.596 1.653
-13(-55.4) 111.3 124.4 139 41(105.8) 9.6 10.21 10.85 95(203) 1.493 1.549 1.604
-12(-53.6) 105.6 118 131.7 42(107.6) 9.231 9.813 10.42 96(204.8) 1.448 1.502 1.558
-11(-51.8) 100.3 111.9 124.7 43(109.4) 8.878 9.43 10 97(206.6) 1.404 1.458 1.512
-10(-50) 95.24 106.2 118.2 44(111.2) 8.54 9.064 9.612 98(208.4) 1.362 1.415 1.469
Outdoor unit sensor temperature characteristics
