TEMP.
°C(°F)
R min
(k Ohm)
R(t)
(k Ohm)
R max
(k Ohm)
TEMP.
°C(°F)
R min
(k Ohm)
R(t)
(k Ohm)
R max
(k Ohm)
TEMP.
°C(°F)
R min
(k Ohm)
R(t)
(k Ohm)
R max
(k Ohm)
-9(-48.2) 90.49 100.8 112.1 45(113) 8.217 8.714 9.233 99(210.2) 1.321 1.373 1.426
-8(-46.4) 85.99 95.68 106.3 46(114.8) 7.908 8.38 8.872 100(212) 1.284 1.335 1.387
-7(44.6) 81.75 90.86 100.8 47(116.6) 7.612 8.06 8.526 101(213.8) 1.245 1.296 1.348
-6(-42.8) 77.74 86.31 95.74 48(118.4) 7.328 7.754 8.196 102(215.6) 1.209 1.258 1.309
-5(-41) 73.94 82.01 90.88 49(120.2) 7.057 7.461 7.88 103(217.4) 1.173 1.222 1.272
-4(-39.2) 70.35 77.95 86.29 50(122) 6.797 7.18 7.578 104(219.2) 1.139 1.187 1.236
-3(37.4) 66.96 74.11 81.96 51(123.8) 6.548 6.912 7.289 105(221) 1.105 1.153 1.202
Resistance at 25°C(77°F): 20 kΩ.

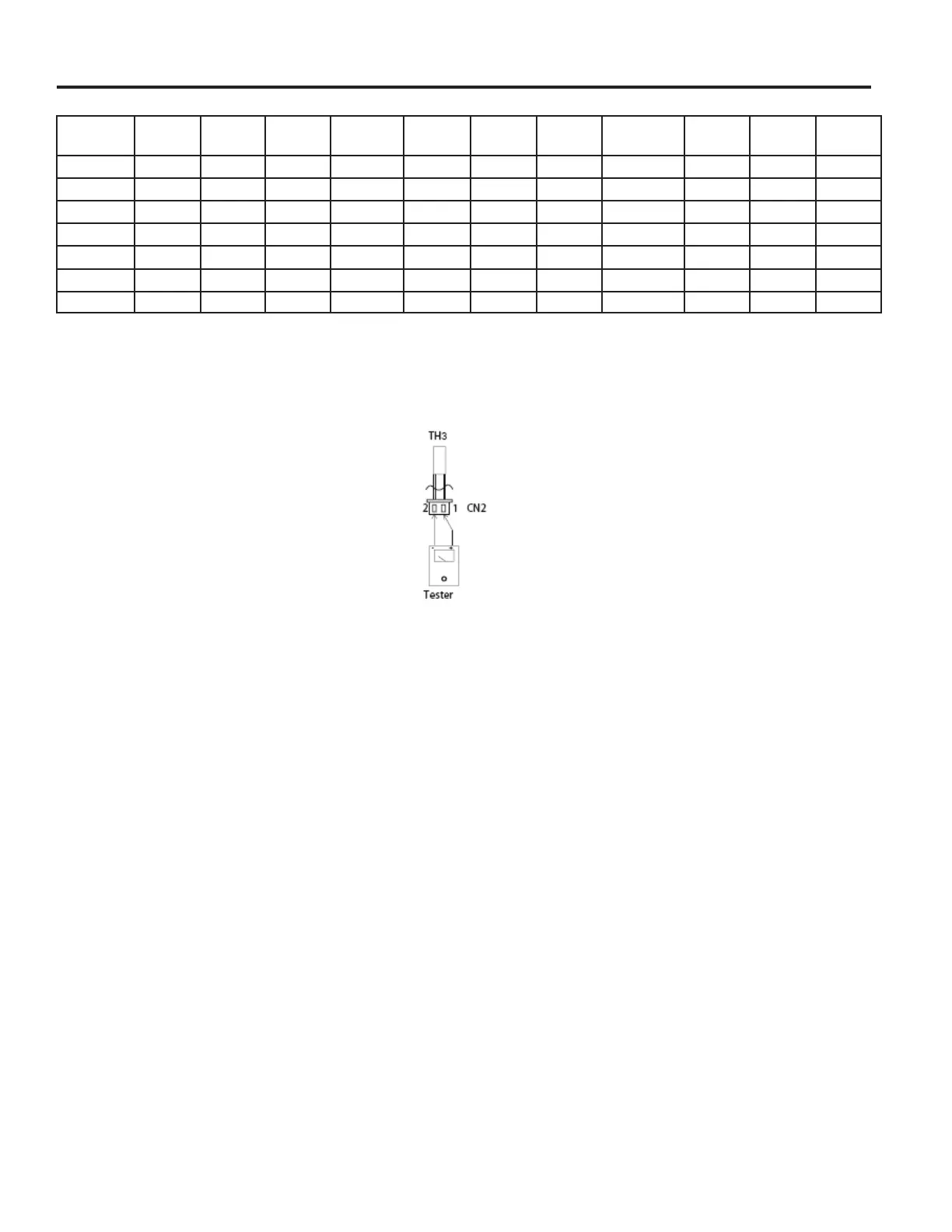

TH3: Outdoor unit discharge pipe sensor
Note: Before measuring resistance, disconnect connectors as shown above.
17 Series Mini-Split
