13
Indoor Fan Performance 4WCY4036

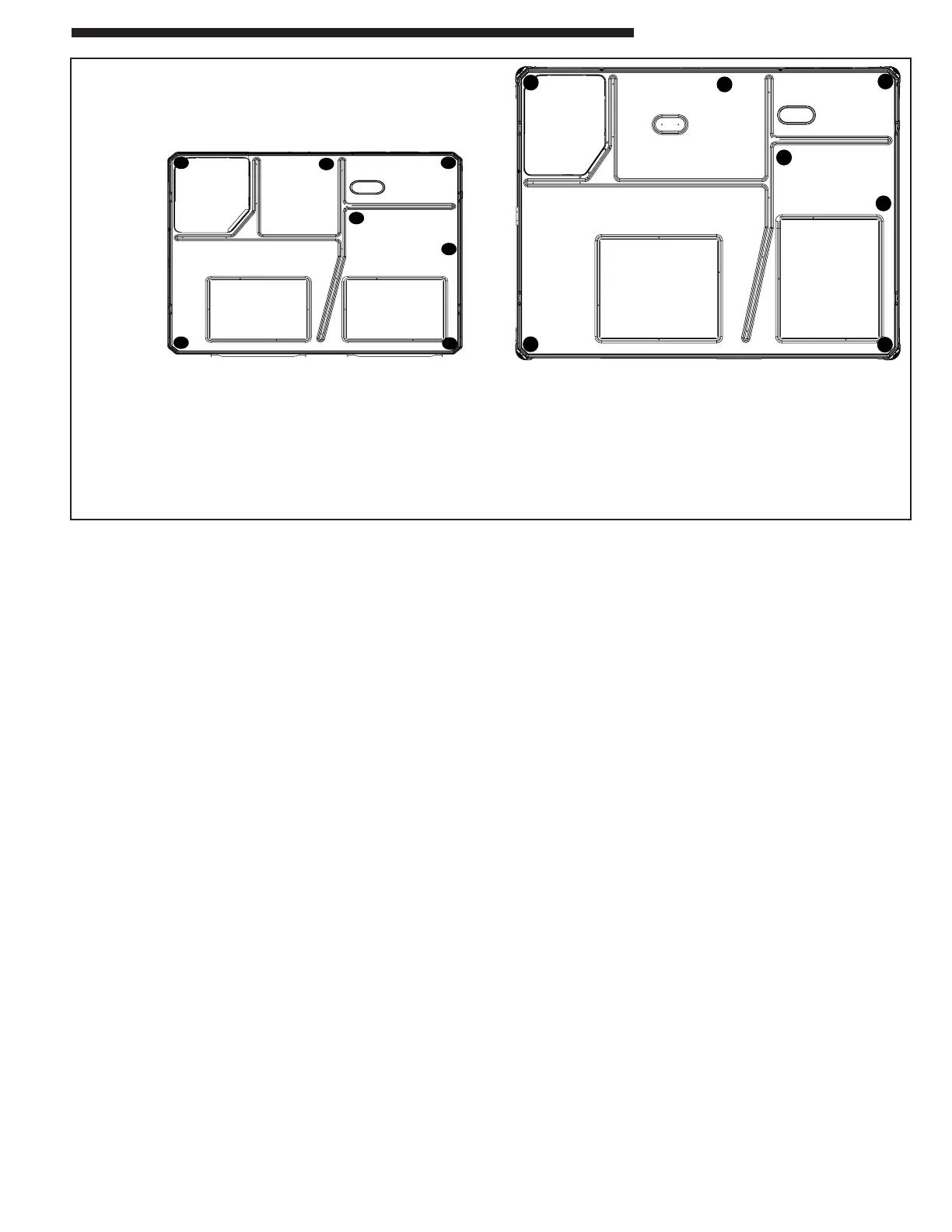

Down Airflow
Horizontal Airflow
4WCY4036-HOR DIPSWITCH SETTINGS External Static Pressure (in. wg)
AIRFLOW SETTING 1 2 3 4
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
350 CFM/TON OFF OFF OFF ON
Watts 162 173 197 226 256 285 313 343 360 - -
CFM 1058 1062 1063 1063 1062 1060 1057 1053 1010 - -
400 CFM/TON* OFF OFF OFF OFF
Watts 179 230 265 296 329 366 403 431 436 - -
CFM 1179 1196 1204 1206 1205 1203 1199 1194 1185 - -
450 CFM/TON OFF OFF ON OFF
Watts 318 336 365 399 435 469 502 533 - - -
CFM 1390 1376 1370 1366 1361 1354 1349 1351 - - -
4WCY4036-DOWN DIPSWITCH SETTINGS External Static Pressure (in. wg)
AIRFLOW SETTING 1 2 3 4
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
350 CFM/TON OFF OFF OFF ON
Watts 169 182 210 243 273 301 331 370 433 - -
CFM 1025 1062 1068 1063 1060 1061 1064 1055 1015 - -
400 CFM/TON* OFF OFF OFF OFF
Watts 225 253 283 315 348 381 414 449 484 - -
CFM 1187 1201 1203 1201 1198 1197 1194 1184 1157 - -
450 CFM/TON OFF OFF ON OFF
Watts 339 357 390 424 455 483 516 571 - - -
CFM 1391 1377 1377 1375 1366 1352 1344 1360 - - -
Indoor Fan Performance 4WCY4042
4WCY4042-HOR DIPSWITCH SETTINGS External Static Pressure (in. wg)
AIRFLOW SETTING 1 2 3 4
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
350 CFM/TON OFF OFF OFF ON
Watts - 181 211 241 270 298 327 355 382 408 -
CFM - 1248 1250 1253 1254 1249 1240 1225 1209 1195 -
400 CFM/TON* OFF OFF OFF OFF
Watts - 261 296 325 352 380 411 444 477 509 -
CFM - 1444 1448 1441 1429 1417 1407 1400 1394 1386 -
450 CFM/TON OFF OFF ON OFF
Watts - 353 390 426 462 499 536 573 609 645 -
CFM - 1608 1611 1613 1613 1612 1608 1603 1597 1590 -
4WCY4042-DOWN DIPSWITCH SETTINGS External Static Pressure (in. wg)
AIRFLOW SETTING 1 2 3 4
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
350 CFM/TON OFF OFF OFF ON
Watts - 195 229 258 283 308 335 362 390 415 -
CFM - 1240 1244 1245 1243 1238 1229 1217 1203 1189 -
400 CFM/TON* OFF OFF OFF OFF
Watts - 289 312 341 371 402 432 461 491 523 -
CFM - 1433 1422 1415 1411 1405 1399 1392 1383 1377 -
450 CFM/TON OFF OFF ON OFF
Watts - 385 422 457 491 527 563 600 636 670 -
CFM - 1604 1602 1600 1598 1596 1593 1590 1585 1578 -
*Factory Default Setting
Down Airflow
Horizontal Airflow
Indoor Blower Performance
