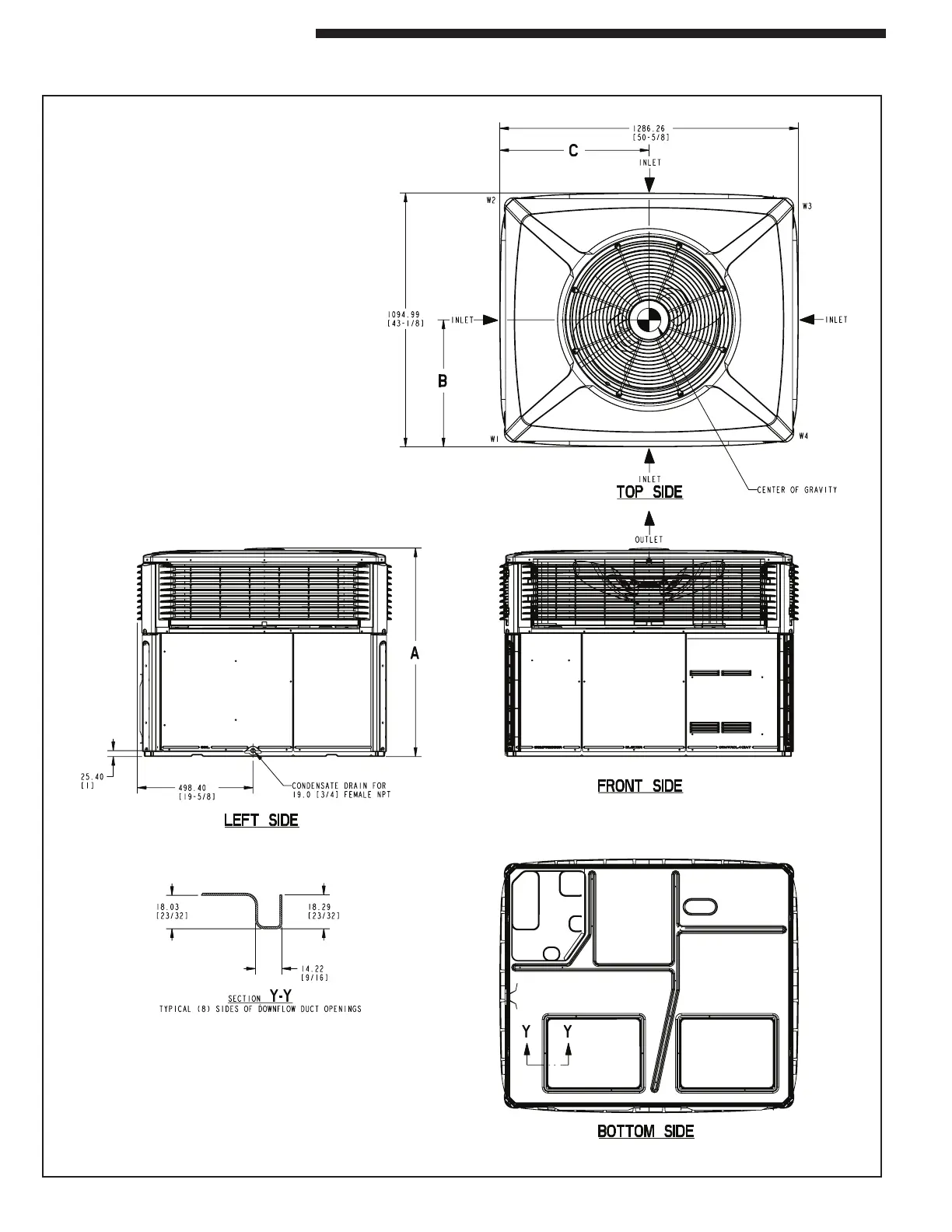

4
Optional Equipment
OPTIONAL EQUIPMENT FOR PACKAGED UNITS (check mark [✓] indicates accessories included)
Hinged Filter Access Door (4WCY4024-036) .................................................................... BAYACCDOR1A[ ]
Hinged Filter Access Door (4WCY4042-060) .................................................................... BAYACCDOR2A[ ]
Roof Curb Full Perimeter (4WCY4024-36) 3 ....................................................................BAYCURB050A[ ]
Roof Curb Full Perimeter (4WCY4042-060) 3 ..................................................................BAYCURB051A[ ]
Roof Curb Utility Extension Kit (BAYCURB050A)....................................................................BAYUTIL101B[ ]
Roof Curb Utility Extension Kit (BAYCURB051A)....................................................................BAYUTIL102B[ ]
0-25% Manual Fresh Air Damper (4WCY4024-36) . ............................................................BAYOSAH001A[ ]
0-25% Manual Fresh Air Damper (4WCY4042-060A) 1......................................................BAYOSAH002A[ ]
Motorized Fresh Air Damper (4WCY4024-36) 1. .............................................................. BAYDMPR101A[ ]
Motorized Fresh Air Damper (4WCY4042-060) 1. ............................................................. BAYDMPR102A[ ]
16" Round Duct Adapter (2 per box) (4WCY4024-36) 6 ................................................... BAYSQRD001A[ ]
18" Round Duct Adapter (2 per box) (4WCY4024-060) 6 ................................................. BAYSQRD002A[ ]
0-100% Mod Economizer w/Baro. Relief (4WCY4024-36) 124 ...................................... BAYECON101B[ ]
0-100% Mod. Economizer w/Baro. Relief (4WCY4042-060) 124. ................................... BAYECON102B[ ]
0-100% Horizontal Economizer (4WCY4024-36) 12 . ...................................................... BAYECON200A[ ]
0-100% Horizontal Economizer (4WCY4042-060) 12 . .................................................... BAYECON201A[ ]
Enthalpy Control for Economizer (solid state). ......................................................................BAYENTH001A[ ]
Remote Potentiometer (All-BAYECON***A) .............................................................................BAYSTAT023[ ]
1"-2" Filter Frame (4WCY4024-36) (20x25 filter not included) 1. ......................................... BAYFLTR101B[ ]
1"-2" Filter Frame (4WCY4042-060) (20x20 & 20x18 filter not included) 1. ......................... BAYFLTR201B[ ]
Head Pressure Control (Low Ambient Cool) (208/240v) Kit 5. ...........................................BAYLOAM105A[ ]
Quick Start Kit (4WCY4-‡1) ................................................................................................. BAYKSKT300A[ ]
Crankcase Heater Recip (4WCY4024 (230v) 5. .................................................................BAYCCHT101A[ ]
Crankcase Heater Scroll (4WCY4036-060‡1/3)(230v) 5. ...................................................BAYCCHT102A[ ]
Adapter Curb 4WCY4024-36 to BAYCURB030,38.............................................................. BAYADAP050A[ ]
Adapter Curb 4WCY4024-36 to BAYCURB033................................................................... BAYADAP051A[ ]
Adapter Curb 4WCY4042-060 to BAYCURB030,38............................................................ BAYADAP052A[ ]
Adapter Curb 4WCY4042-060 to BAYCURB033................................................................. BAYADAP053A[ ]
Adapter Curb 4WCY4042-060 to BAYCURB034................................................................. BAYADAP054A[ ]
12" Duct Shroud Covers Horizontal 4WCY4024-0607. .......................................................BAYCOVR112A[ ]
18" Duct Shroud Covers Horizontal 4WCY4024-060 7. ......................................................BAYCOVR118A[ ]
Extreme Condition Mounting Kit - All BAYCURB & BAYADAP .............................................BAYEXMK001A[ ]
Extreme Condition Mounting Kit - All BAYUTIL ....................................................................BAYEXMK002B[ ]
Extreme Condition Mounting Kit - All Slab Mounts ...............................................................BAYEXMK003A[ ]
Lifting Lug Kit ...........................................................................................................................BAYLlFT002B[ ]
SUPPLEMENTARY HEATERS (1 PHASE)
3.76/5.0 KW Heater (208/240V 1PH) (4WCY4024-060‡1) .................................................. BAYHTRV105E[ ]
3.76/5.0 KW Heater (208/240V 1PH) (4WCY4024-060‡1) .................................................. BAYHTRV108E[ ]
7.50/10.0 KW Heater (208/240V 1PH) (4WCY4024-060‡1) ................................................ BAYHTRV110E[ ]
11.27/15.00 KW Heater (208/240V 1PH) (4WCY4030-060‡1) ............................................ BAYHTRV115E[ ]
15.0/20.0 KW Heater (208/240V 1PH) (*4WCY4042-060‡1) ............................................... BAYHTRV120E[ ]
18.78/25.0 KW Heater (208/240V 1PH) (4WCY4042-060‡1).... .......................................... BAYHTRV125E[ ]
SUPPLEMENTARY HEATERS (3 PHASE)
3.76/5.0 KW Heater (208/240V 3PH) (4WCY4036-060‡3) .................................................. BAYHTRV305E[ ]
3.76/5.0 KW Heater (208/240V 3PH) (4WCY4036-060‡3) .................................................. BAYHTRV308E[ ]
7.50/10.0 KW Heater (208/240V 3PH) (4WCY4024-48‡3) .................................................. BAYHTRV310E[ ]
11.27/15.00 KW Heater (208/240V 3PH) (4WCY4036-060‡3) ............................................ BAYHTRV315E[ ]
15.00/20.0 KW Heater (208/240V 3PH) (4WCY4048-060‡3) .............................................. BAYHTRV320E[ ]
18.78/25.0 KW Heater (208/240V 3PH) (4WCY4048-060‡3).... .......................................... BAYHTRV325E[ ]
Single Power Entry Kit 8 . .................................................................................................... BAYSPEK060F[ ]
Single Power Entry Kit 8 . .................................................................................................... BAYSPEK061E[ ]
Single Power Entry Kit 8 . .................................................................................................... BAYSPEK062F[ ]
Single Power Entry Kit 8 . .................................................................................................... BAYSPEK063F[ ]
Single Power Entry Kit 8 . .................................................................................................... BAYSPEK064E[ ]
Single Power Entry Kit 8 . .................................................................................................... BAYSPEK065E[ ]
NOTES: 1 Must use internal filter frame when economizer or fresh air kit is used.
2 Dry bulb control standard with economizer.
3 Ships knocked down.
4 Downflow only.
5 Low Ambient cooling requires crankcase heater (BAYCCHT----B).
6 It is the responsibility of the installing dealer to properly size the ductwork for each specific application.
7 BAYCOVR112,118A will not cover BAYSQRD002A applications.
8 See table on page 8 for matching kit with units and heaters.
‡ = A or B
