Trane 5TXCA001AS3HCA - Page 18

18 18-AD47D1-1B-EN
Installer’s Guide
Notes:

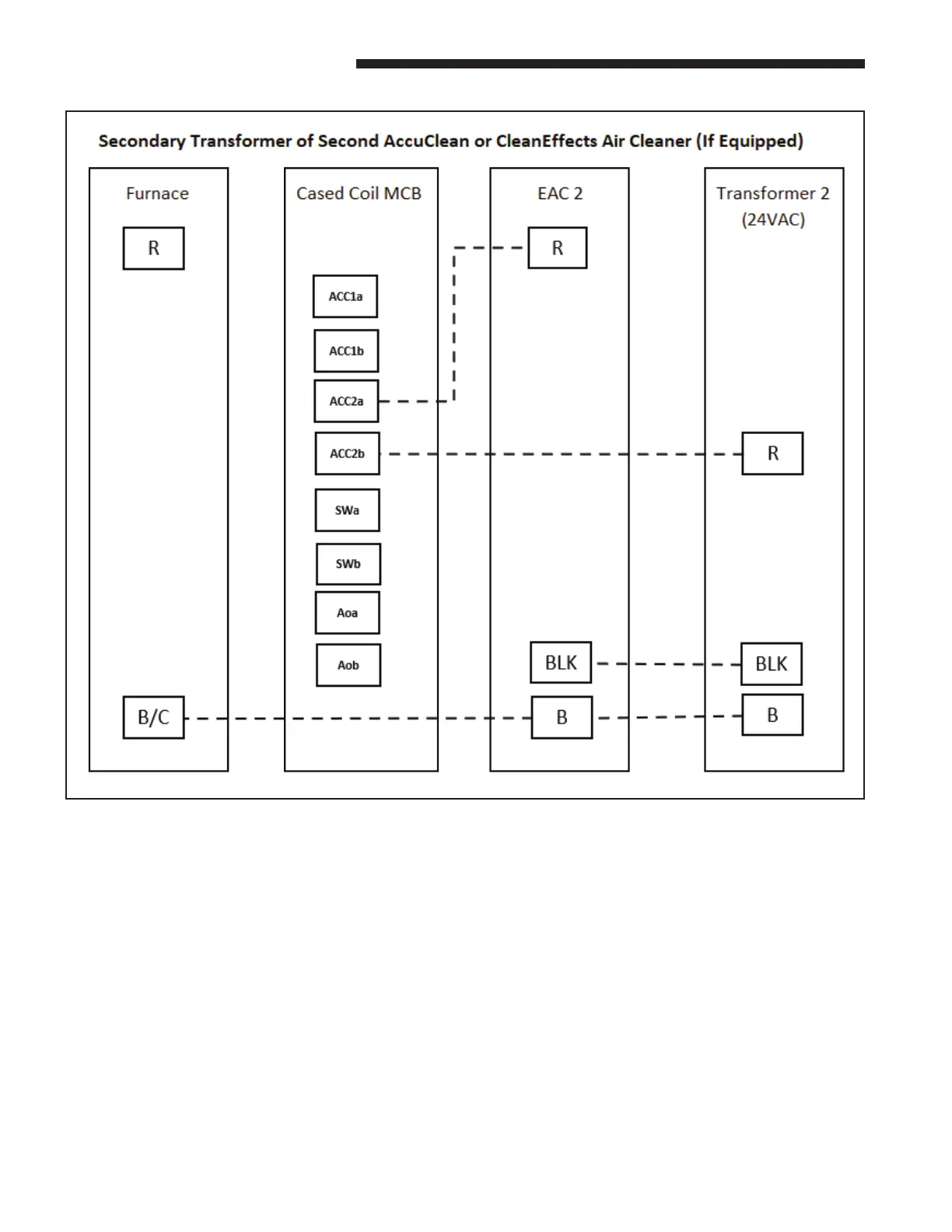

1. Refer to air cleaner literature to determine if second air cleaner and/or secondary transformer is required.
2. See the other air cleaner wiring diagrams for control wiring connections.
