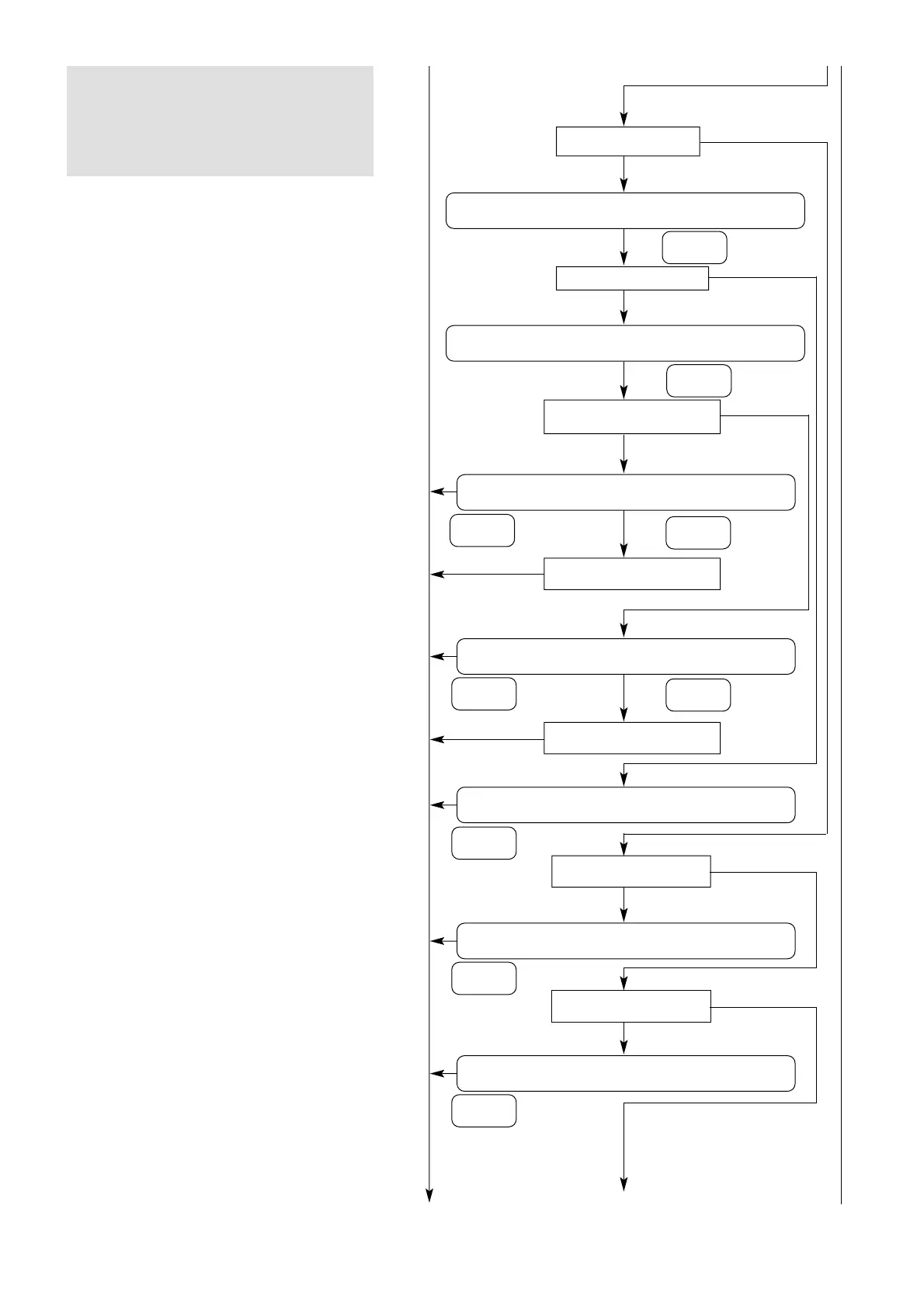

Type of diagnostic
CMR/ CAR active
Latched fault - manual reset required
“Press (Next) for more”
Next
CAR
Type of circuit shutdown
CMR
Latched fault - manual reset required
“Press (Next) for more”
Next
Circuit 2
Did diagnostic occur
on Circuit 1 or Circuit 2?
Circuit 1
Press (Enter) to
reset circuit 1 diagnostics
Next
Enter
Reset Circuit 1 diagnostic
Press (Enter) to
reset circuit 2 diagnostics
Next
Enter
Reset Circuit 2 diagnostic
Active fault - can clear automatically
“Press (Next) for more”
Next
Other
Type of diagnostic
CAR inactive
A circuit shutdown occurred
but has cleared “Press (Next)”
Next
IFW inactive
Type of diagnostic
IFW active
*** Informational warning ***
“Press (Next) for diagnostic info”
Next
Note:
MMR: Machine shutdown manual reset.
MAR: Machine shutdown automatic reset.
CMR: Circuit shutdown manual reset.
CAR: Circuit shutdown automatic reset.
IFW: Informational warning.
