Weights
Table 1. Maximum unit and corner weights (lb) and center of gravity dimensions (in.)
Tons
Unit Model
No.
Weights (lb)
(a)
,
(b)
Corner Weights
(c)
Center of Gravity (in.)
Shipping
Net A B C D
Length
Width
15 GCC180A 2339 2013 649 508 398 459 55 37
17.5 GCC210A 2353 2028 653 511 399 464 55 37
20 GCC240A 2350 2025 643 512 403 466 55 37
25 GCC300A 2386 2061 671 524 393 472 55 36
(a)
Weights are approximate. Horizontal and downflow unit and corner weights may vary slightly.
(b)
Weights do not include additional factory or field installed options/accessories.
(c)
Corner weights are given for information only. 15 to 25 ton models must be supported continuously by a curb or equivalent frame support.

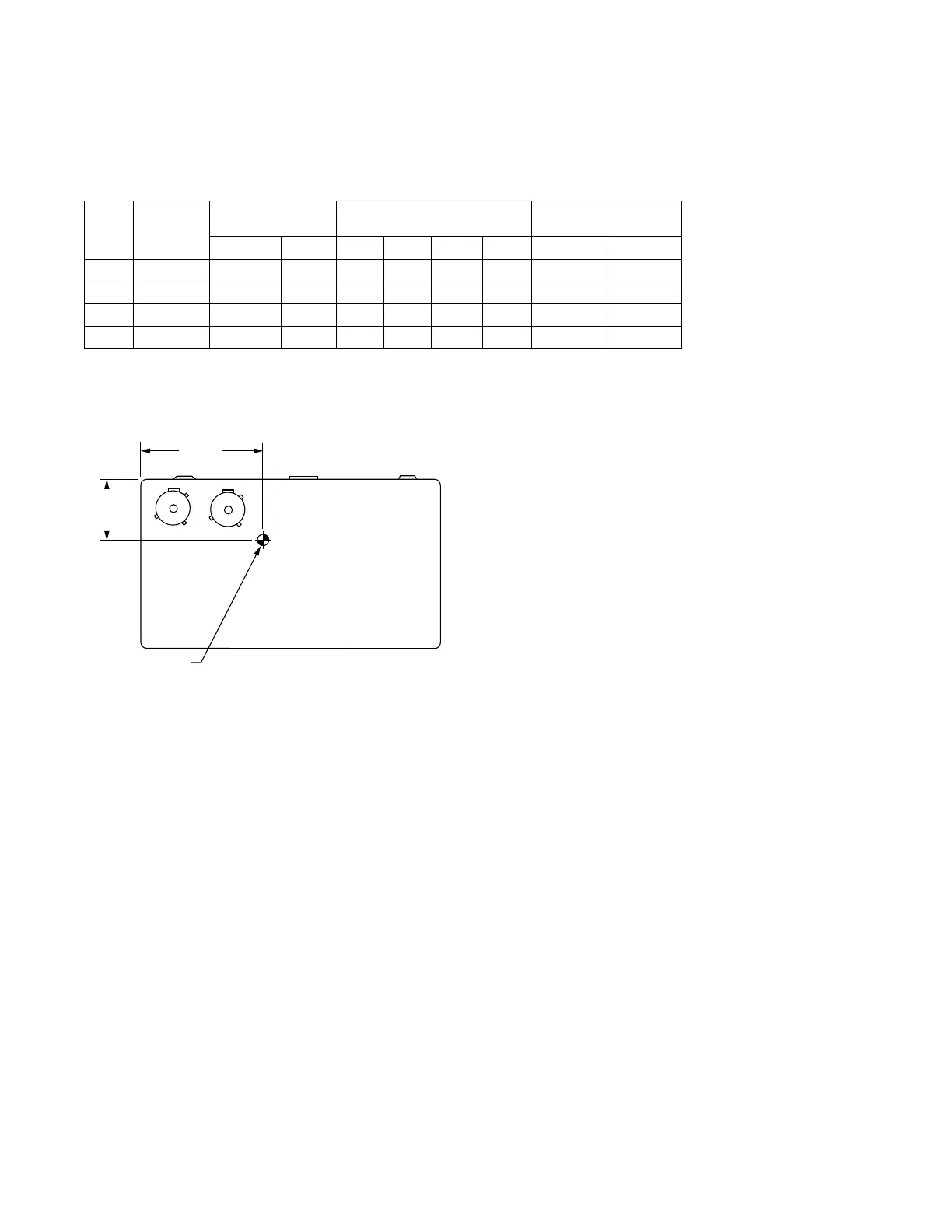

Figure 11. Corner weights
CENTER OF GRAVITY
LENGTH
CENTER OF
GRAVITY
WIDTH
A
B
C
CENTER OF GRAVITY
D
