To place the unit in the configuration your application requires (upflow, downflow, horizontal right, or horizontal left),
simply turn the unit to that orientation.
Note: The air handlers are shipped from the factory suitable for four-way conversion. They are shipped in the down-
flow orientation.

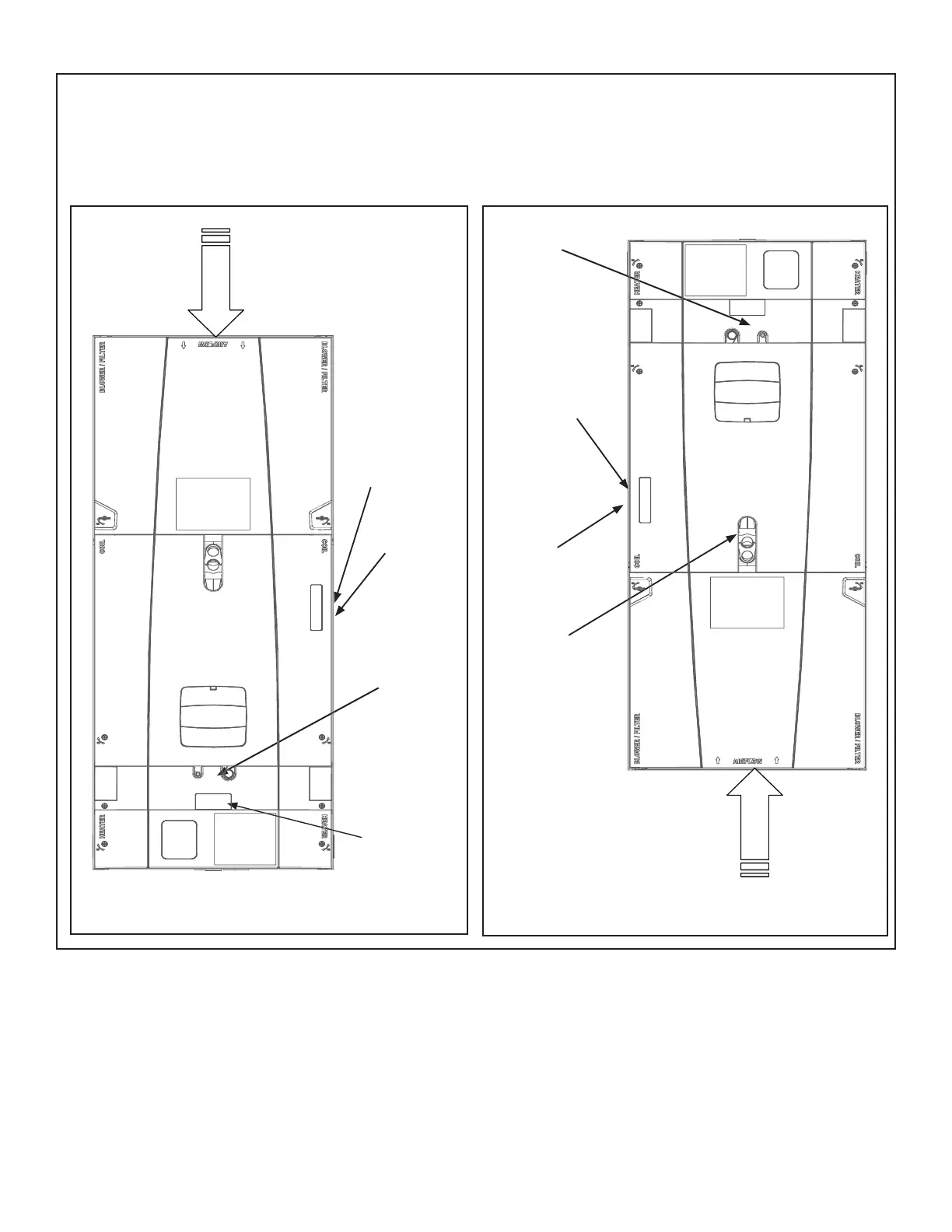

6.2 Four-Way Conversion
Upflow
Condensate
Drains
Refrigerant
Connections
Downflow
Condensate
Drains
Downflow Configuration
(as shipped)
Refrigerant
Connections
Airflow
Upflow Configuration
Low Voltage
Connections
inside unit
Low Voltage
Connections
inside unit
Airflow
Control
Pocket
Inside unit
Control
Pocket
Inside unit

Trane GAM5 Series Specifications

General

Type	Air Handler
Series	GAM5
Refrigerant Compatibility	R-410A
Voltage	208/230V
Phase	Single
Nominal Cooling Capacity	1.5 to 5 tons
Cabinet Construction	Galvanized steel
Heating Capacity	Varies by model
Airflow Configuration	Upflow, Downflow, Horizontal
Sound Level	Varies by model
Motor Type	Variable Speed
