Section 10. Refrigerant Line
10.1 Refrigerant Line Connection Sizes
10.2 Refrigerant System Layout
Refrigerant Line Connection Sizes
Model
Vapor Line
Connection
Liquid Line
Connection
GAM5A0A18H21SAA
3/4 3/8
GAM5A0A24H21SAA
3/4 3/8
GAM5B0A30H31SAA
3/4 3/8
GAM5B0A36H31SAA
7/8 3/8
GAM5C0A42H41SAA
7/8 3/8
GAM5C0A48H41SAA
7/8 3/8
GAM5C0A60H51SAA
7/8 3/8
Table 8.1

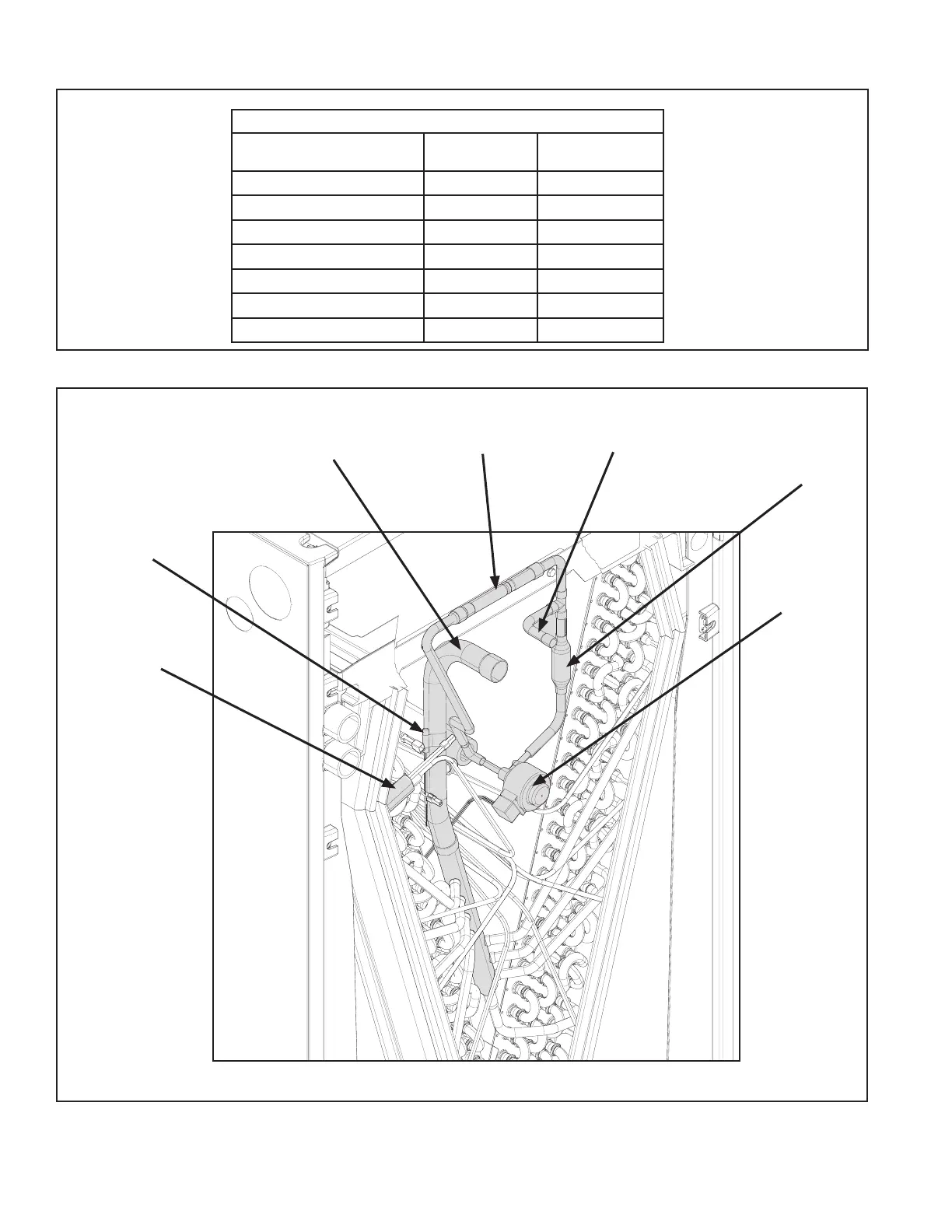

Saturation
Sensor
EEV Motor
Vapor Line
Liquid Line
Check Valve
Vapor Line
Sensor
Strainer
