Trane GAM5 Series User Manual

19
Plenum Installation
1. Assemble the plenum using the plenum’s
Installer Guide.

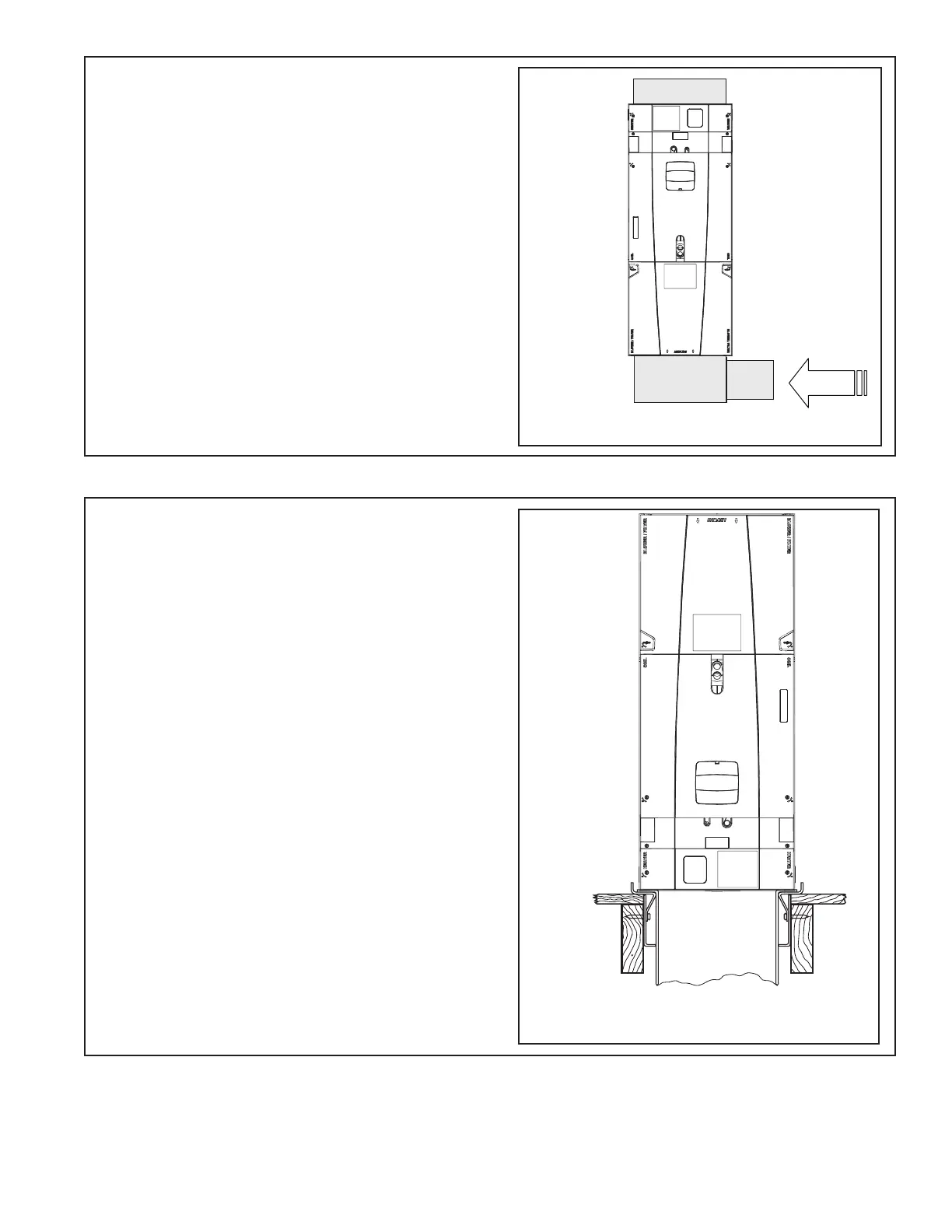

Typical Plenum Installation
Airflow
7.3 Downflow Installation
Downflow installation must comply with national, •
state, and local codes.
The air handlers are rated for zero clearance from •
combustible materials.
STEP 1 - Prepare the location site as appropriate for
your application and per national, state, and local code
requirements.
STEP 2 - Set the unit in position.
Representative Illustration
Typical Downflow Installation
On units with sheet metal returns: Return plenum
must be flanged. Sheet metal drill point screws
must be 1/2” in length or shorter.

Trane GAM5 Series Specifications

General

Type	Air Handler
Series	GAM5
Refrigerant Compatibility	R-410A
Voltage	208/230V
Phase	Single
Nominal Cooling Capacity	1.5 to 5 tons
Cabinet Construction	Galvanized steel
Heating Capacity	Varies by model
Airflow Configuration	Upflow, Downflow, Horizontal
Sound Level	Varies by model
Motor Type	Variable Speed
