Trane GAM5 Series User Manual

29

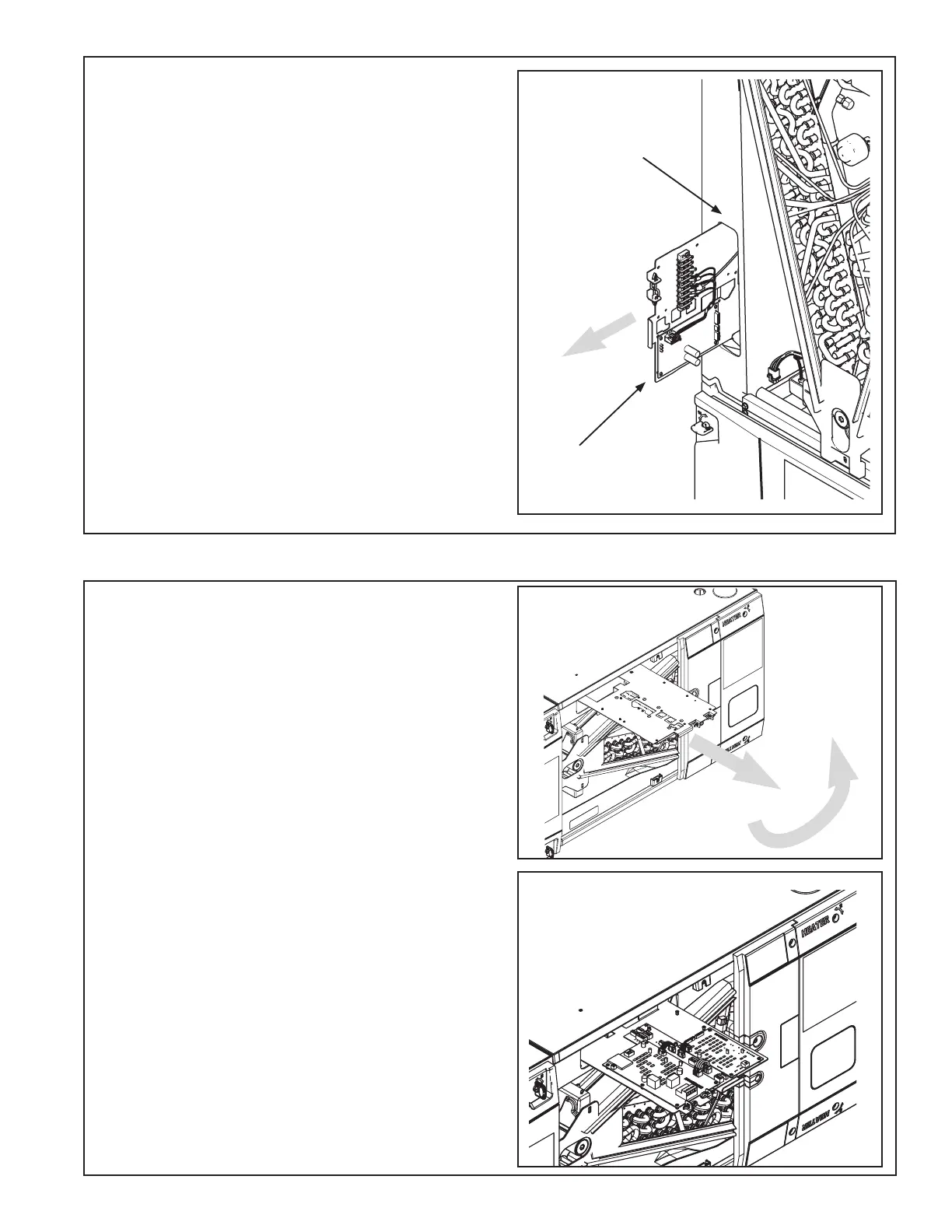

STEP 3 - Remove the control board from the control
pocket by sliding the control pocket mounting plate
out until the first stop is reached.
Control
Pocket
Inside
unit
Control
Board
For Horizontal Right installations Only
Remove the control board completely from the
control pocket. Rotate the control board180 degrees.
Place the control board 4-6 inches back into the con-
trol pocket. Attach wiring per appropriate hook-up
diagram or perform service.
Important: After wires have been connected or ser-
vice performed, the control board MUST be rotated
back to the original orientation before inserting into
control pocket in the cabinet.
1
2

Trane GAM5 Series Specifications

General

Type	Air Handler
Series	GAM5
Refrigerant Compatibility	R-410A
Voltage	208/230V
Phase	Single
Nominal Cooling Capacity	1.5 to 5 tons
Cabinet Construction	Galvanized steel
Heating Capacity	Varies by model
Airflow Configuration	Upflow, Downflow, Horizontal
Sound Level	Varies by model
Motor Type	Variable Speed
