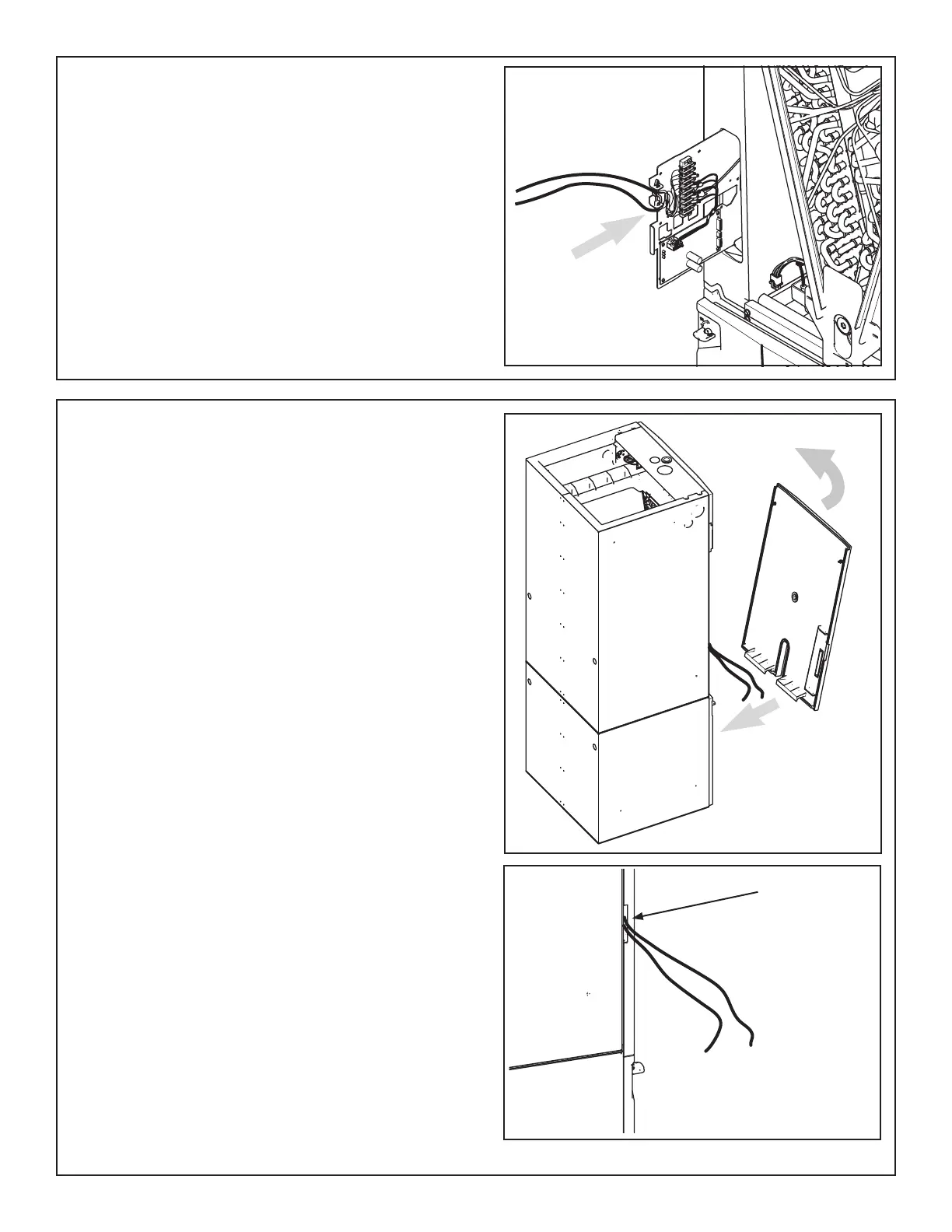

STEP 8 - Replace Coil panel making sure that the
wires are located within the wire pass-through pro-
vided in the panel.
STEP 7 - Slide control plate assembly into the control
pocket until fully seated. The control plate should be
flush with the outer edge of the unit.
Pass through
notch in coil
access door

Trane GAM5 Series Specifications

General

Type	Air Handler
Series	GAM5
Refrigerant Compatibility	R-410A
Voltage	208/230V
Phase	Single
Nominal Cooling Capacity	1.5 to 5 tons
Cabinet Construction	Galvanized steel
Heating Capacity	Varies by model
Airflow Configuration	Upflow, Downflow, Horizontal
Sound Level	Varies by model
Motor Type	Variable Speed
