Trane GAM5 Series User Manual

9
Coil Support
Channel

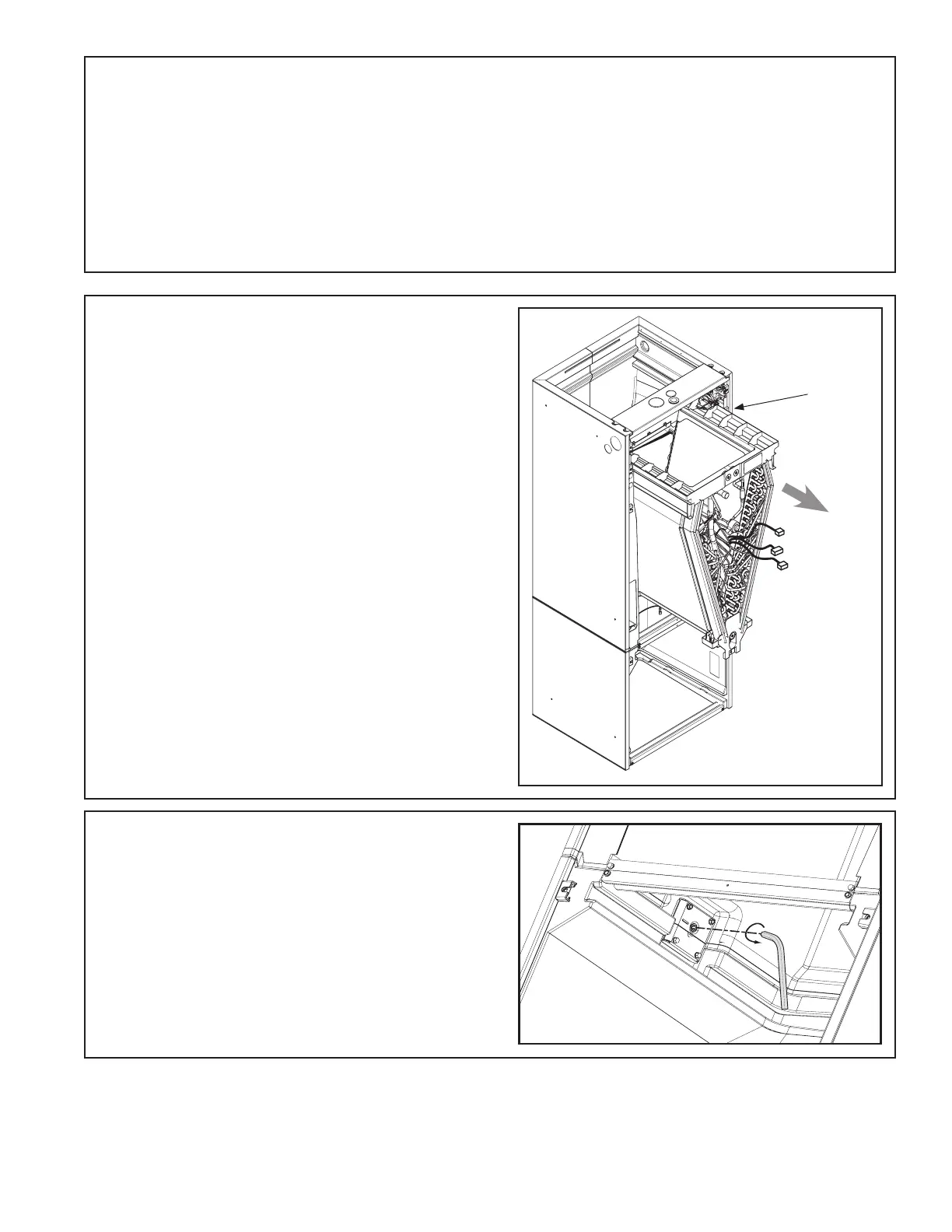

STEP 5 - Disconnect wires to the EEV motor and
sensors inside the coil assembly. Cut the wire ties
on those wire harnesses.
STEP 6 - Slide Coil assembly out of unit using built-
in coil support channels and set aside.
STEP 7 - Use a 5/16 Allen wrench on the locking
mechanism on each side of the bottom half of the
cabinet to loosen the locking mechanism. The locks
loosen by turning counter-clockwise approximately
3/4 of a turn.

Trane GAM5 Series Specifications

General

Type	Air Handler
Series	GAM5
Refrigerant Compatibility	R-410A
Voltage	208/230V
Phase	Single
Nominal Cooling Capacity	1.5 to 5 tons
Cabinet Construction	Galvanized steel
Heating Capacity	Varies by model
Airflow Configuration	Upflow, Downflow, Horizontal
Sound Level	Varies by model
Motor Type	Variable Speed
