Deluxe 24V
Controls
Small Building Control
The deluxe 24V electro-mechanical
design may be applied as a stand-alone
control system or as a multi-unit
installation system. With a stand-alone
design, units run independently of one
another with a mercury bulb or
electronic digital thermostat.
With a multiple unit installation, the units
may be daisy-chained directly to the
Trane Tracer loop controller (TLC),
pump(s), boiler, and tower for a
complete networked water-source
system. The TLC provides a night
setback output, and a pump request
input for system optimization.
See Figure FB-34 for 24 volt deluxe
control system.

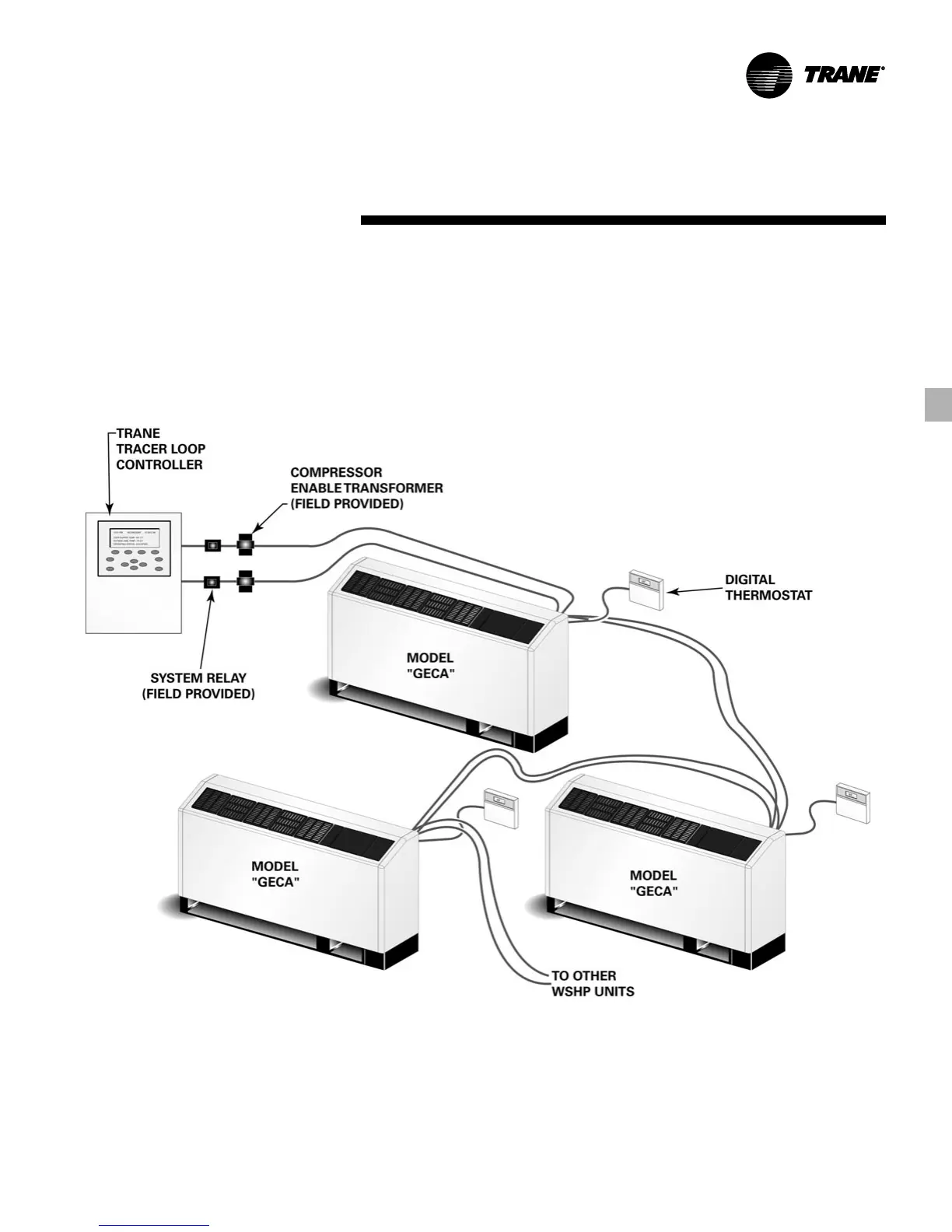

Figure FB-34 – 24 Volt Deluxe Control System
