WSHP-PRC004-EN20
Tracer ZN.510
Controls
Features and
Benefits
Tracer ZN.510 Controls
Tracer ZN.510 is a direct digital control
(DDC) system, specifically designed for
water-source units to provide control of
the entire unit, as well as outputs for unit
status and fault detection. Each device, is
factory installed and commissioned to
ensure the highest level of quality in unit
design. The Tracer ZN.510 control
package includes:
See Figure FB-35 for
the console Tracer ZN.510 control box.
Additions to 24V Deluxe Controller:
•
75 VA transformer
•
Heating/cooling status
•
Occupied/unoccupied mode
•
Fan and filter status
•
Reversing valve coil (
for heating and
cooling units only)
•
Two-speed fan motor (
unit mounted
fan speed switch)
•
18-pole terminal strip
(for low voltage
hook-up)
•
Optional: Condensate overflow
•
Optional: Motorized 2-position damper
Direct Digital Controls
In addition to being factory configured to
control the unit fan, compressor, and
reversing valve of the unit, the Tracer
ZN.510 controller is designed to
coordinate the water side of the water-
source system. If applied in a
peer-to-peer communication
environment, data between similar
controllers may be exchanged without
requiring a building automation system.
See Figure FB-36 for the Tracer ZN.510
board.

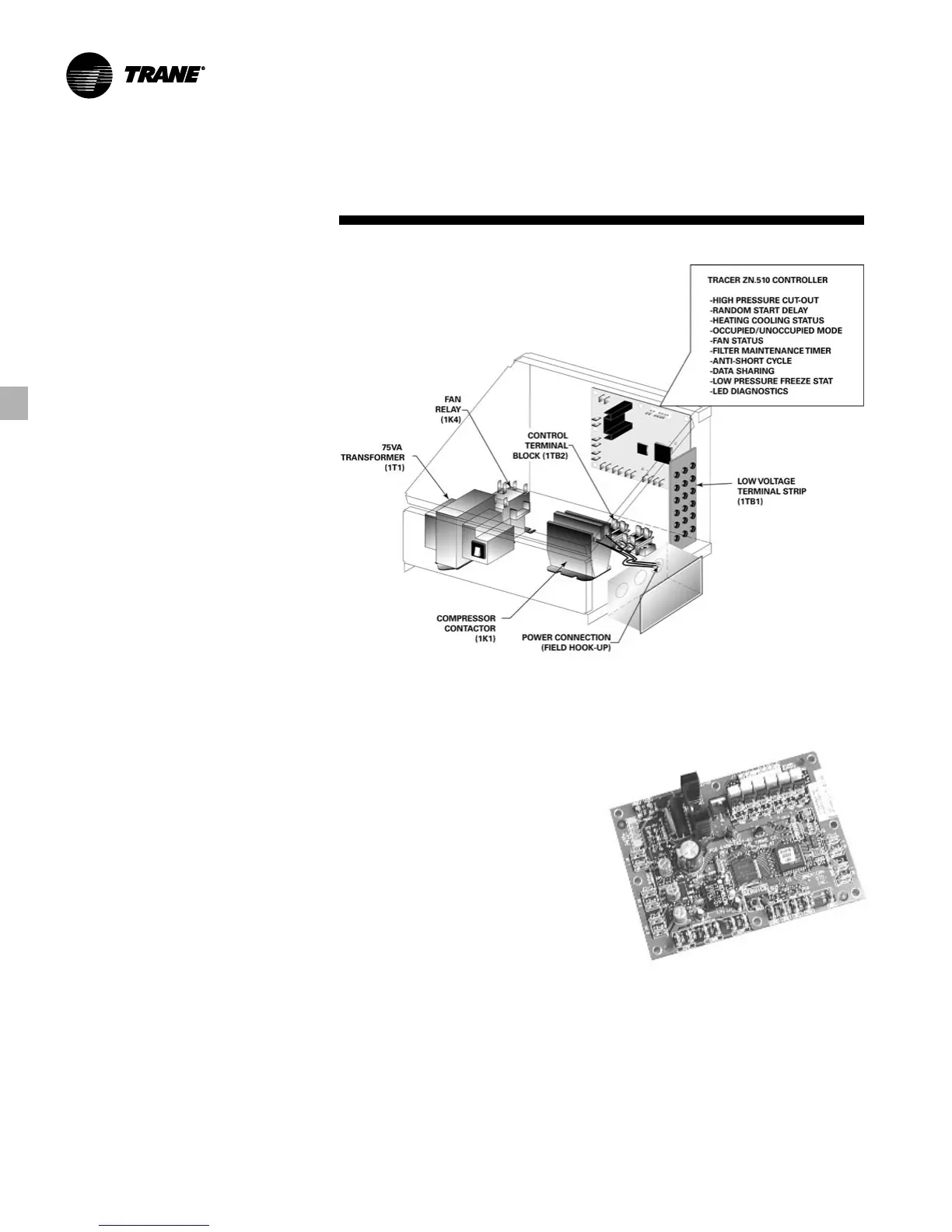

Figure FB-35 – Vertical Tracer ZN.510 Control Box
Figure FB-36 – Tracer ZN.510 Board
