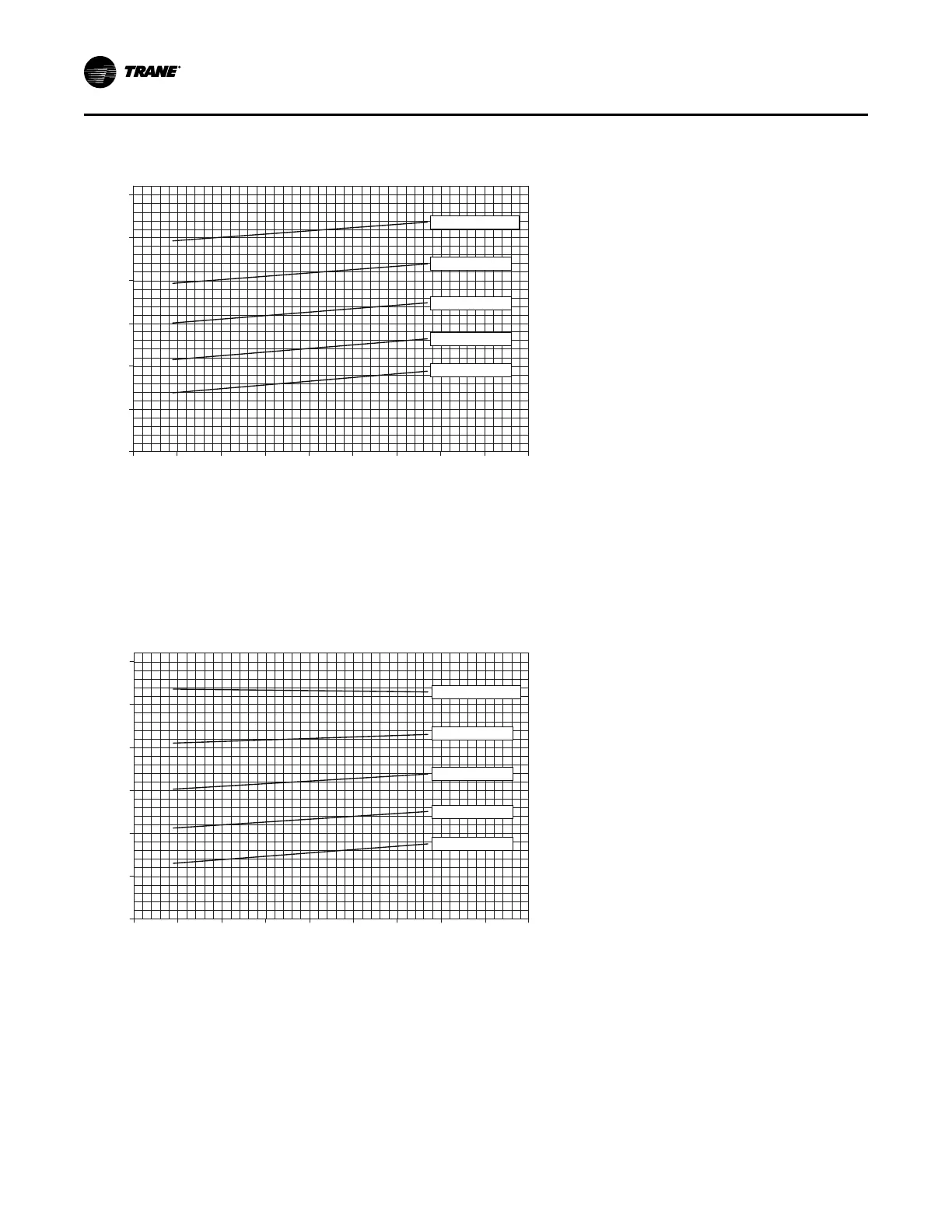

Figure 81. Pressure curve — 60 tons standard efficiency
Suction Pressure, PSIG
Discharge Pressure, PSIG
200
250
300
350
400
450
500
90 100 110 120 130 140 150 160 170 180
60T Standard Capacity
95°F Ambient
85°F Ambient
75°F Ambient
65°F Ambient
105°F Ambient
NNootteess::
• CChhaarrggiinngg aatt AAHHRRII ffuullll llooaadd ddeessiiggnn ccoonnddiittiioonnss:: Suction pressure = 126 psig; Discharge pressure = 408 psig;
Subcooling leaving outdoor coil = 15°F.
• CChhaarrggiinngg aatt ootthheerr ccoonnddiittiioonnss:: Subcooling range: 13-17°F.
Figure 82. Pressure curve — 60 tons high efficiency
200
250
300
350
400
450
500
90 100 110 120 130 140 150 160 170 180
Suction Pressure, PSIG
60T High Efficiency
Discharge Pressure, PSIG
95°F Ambient
85°F Ambient
75°F Ambient
65°F Ambient
105°F Ambient
NNootteess::
• CChhaarrggiinngg aatt AAHHRRII ffuullll llooaadd ddeessiiggnn ccoonnddiittiioonnss:: Suction pressure = 138 psig; Discharge pressure = 412 psig;
Subcooling leaving outdoor coil = 15°F.
• CChhaarrggiinngg aatt ootthheerr ccoonnddiittiioonnss:: Subcooling range: 13-17°F.
