Trane IntelliPak RA 20 User Manual

RT-SVX063E-EN
123

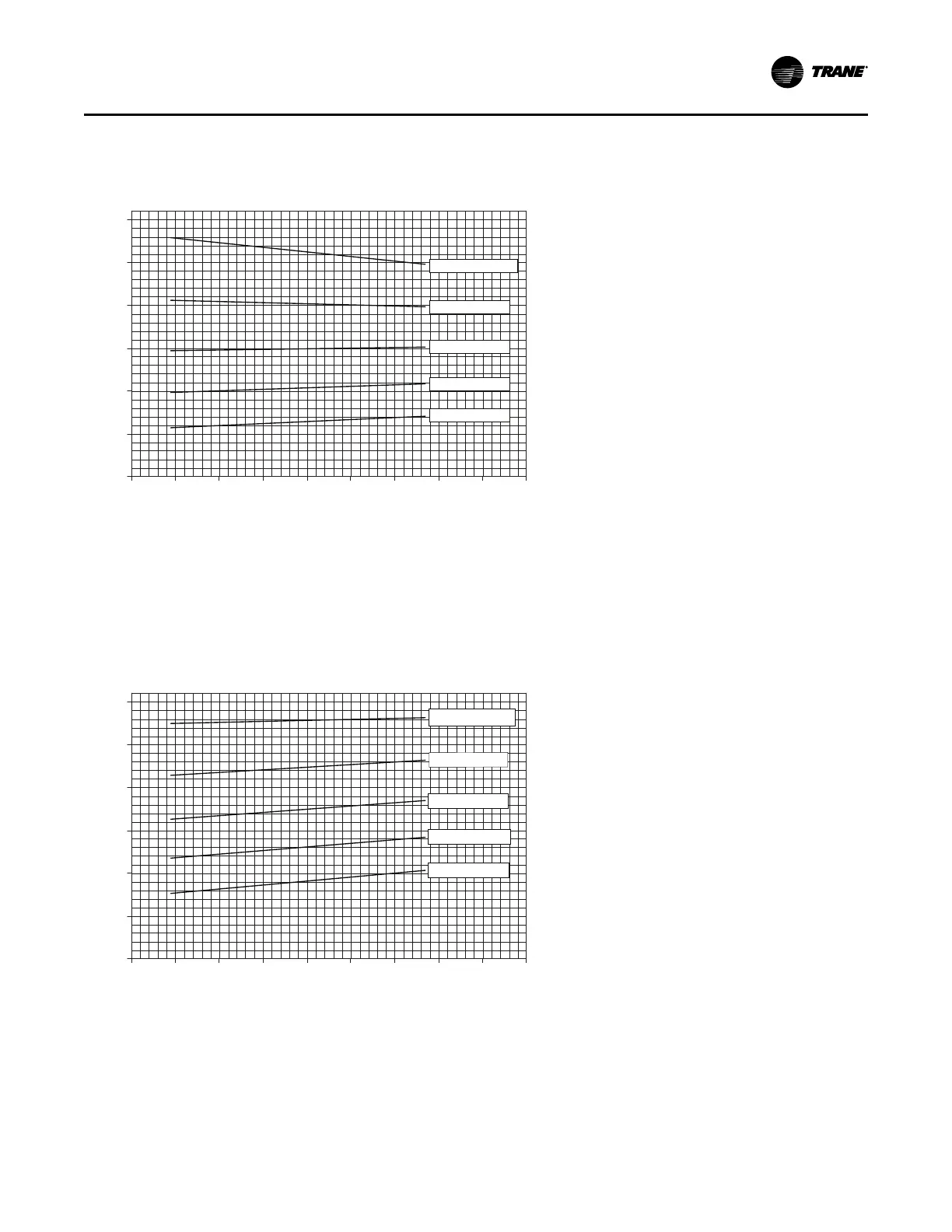

Figure 83. Pressure curve — 60 tons eFlex variable speed
200
250
300
350
400
450
500
90 100 110 120 130 140 150 160 170 180
Suction Pressure, PSIG
Discharge Pressure, PSIG
95°F Ambient
85°F Ambient
75°F Ambient
65°F Ambient
105°F Ambient
60T eFlex Variable Speed - circuit 1 only
(Use 60T Standard Capacity for circuit 2)
NNootteess::
• CChhaarrggiinngg aatt AAHHRRII ffuullll llooaadd ddeessiiggnn ccoonnddiittiioonnss:: Suction pressure = 139 psig; Discharge pressure = 400 psig;
Subcooling leaving outdoor coil = 15°F.
• CChhaarrggiinngg aatt ootthheerr ccoonnddiittiioonnss:: Subcooling range: 13-17°F.
Figure 84. Pressure curve — 70 tons standard efficiency
200
250
300
350
400
450
500
90 100 110 120 130 140 150 160 170 180
Discharge Pressure, PSIG
Suction Pressure, PSIG
70T Standard Capacity
105°F Ambient
95°F Ambient
85°F Ambient
75°F Ambient
65°F Ambient
NNootteess::
• CChhaarrggiinngg aatt AAHHRRII ffuullll llooaadd ddeessiiggnn ccoonnddiittiioonnss:: Suction pressure = 138 psig; Discharge pressure = 426 psig;
Subcooling leaving outdoor coil = 15°F.
• CChhaarrggiinngg aatt ootthheerr ccoonnddiittiioonnss:: Subcooling range: 13-17°F.
SSeerrvviiccee aanndd MMaaiinntteennaannccee
