Trane IntelliPak RA 20 User Manual

124
RT-SVX063E-EN

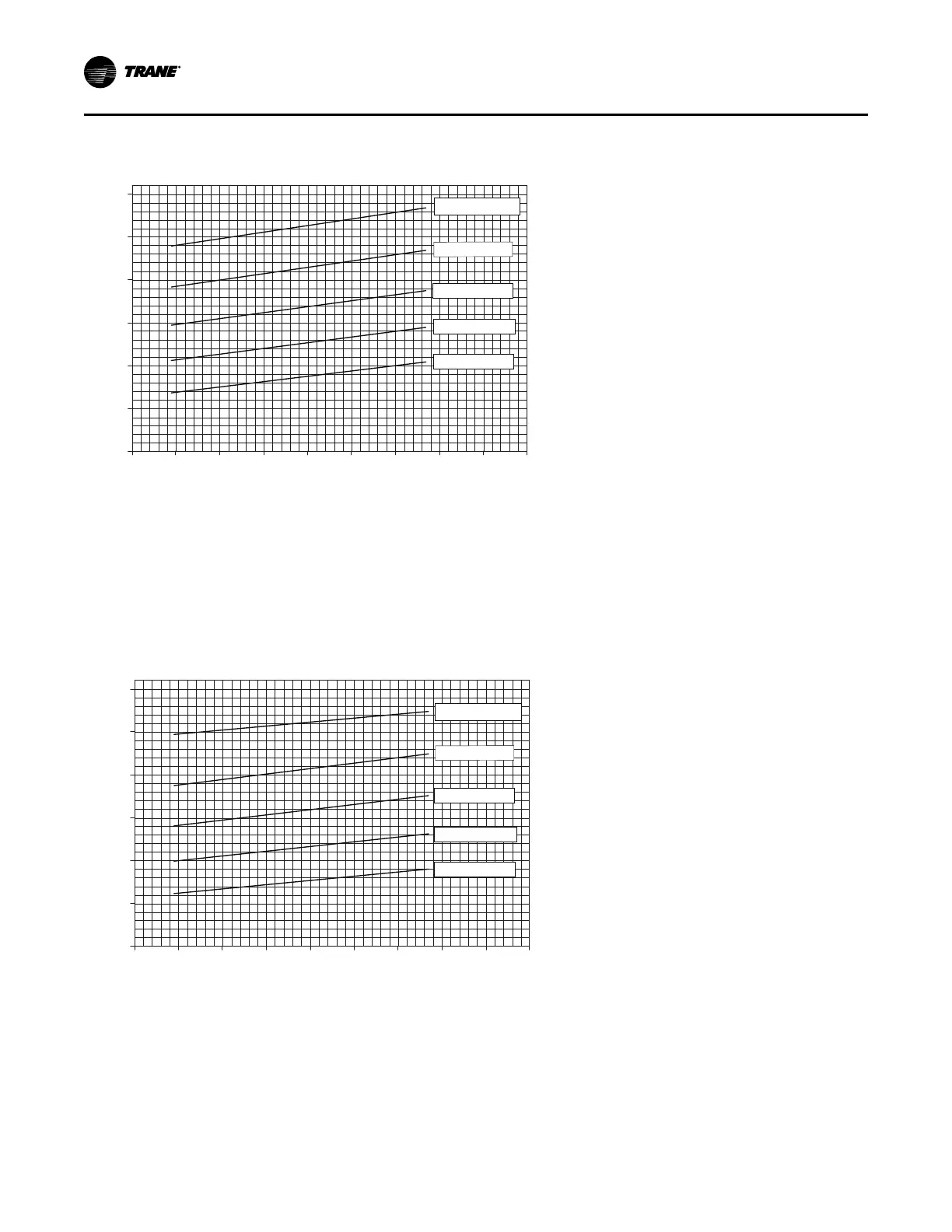

Figure 85. Pressure curve — 70 tons high efficiency
200
250
300
350
400
450
500
90 100 110 120 130 140 150 160 170 180
Discharge Pressure, PSIG
Suction Pressure, PSIG
105°F Ambient
95°F Ambient
85°F Ambient
75°F Ambient
65°F Ambient
70T High Efficiency
NNootteess::
• CChhaarrggiinngg aatt AAHHRRII ffuullll llooaadd ddeessiiggnn ccoonnddiittiioonnss:: Suction pressure = 142 psig; Discharge pressure = 423 psig;
Subcooling leaving outdoor coil = 21°F.
• CChhaarrggiinngg aatt ootthheerr ccoonnddiittiioonnss:: Subcooling range: 19-23°F.
Figure 86. Pressure curve — 70 tons eFlex variable speed
Discharge Pressure, PSIG
Suction Pressure, PSIG
200
250
300
350
400
450
500
90 100 110 120 130 140 150 160 170 180
70T eFlex Variable Speed - circuit 1 only
(Use 70T Standard Capacity for circuit 2)
105°F Ambient
95°F Ambient
85°F Ambient
75°F Ambient
65°F Ambient
NNootteess::
• CChhaarrggiinngg aatt AAHHRRII ffuullll llooaadd ddeessiiggnn ccoonnddiittiioonnss:: Suction pressure = 144 psig; Discharge pressure = 416 psig;
Subcooling leaving outdoor coil = 21F.
• CChhaarrggiinngg aatt ootthheerr ccoonnddiittiioonnss:: Subcooling range: 19-23°F.
SSeerrvviiccee aanndd MMaaiinntteennaannccee
