Trane IntelliPak RA 20

RT-SVX063E-EN
125

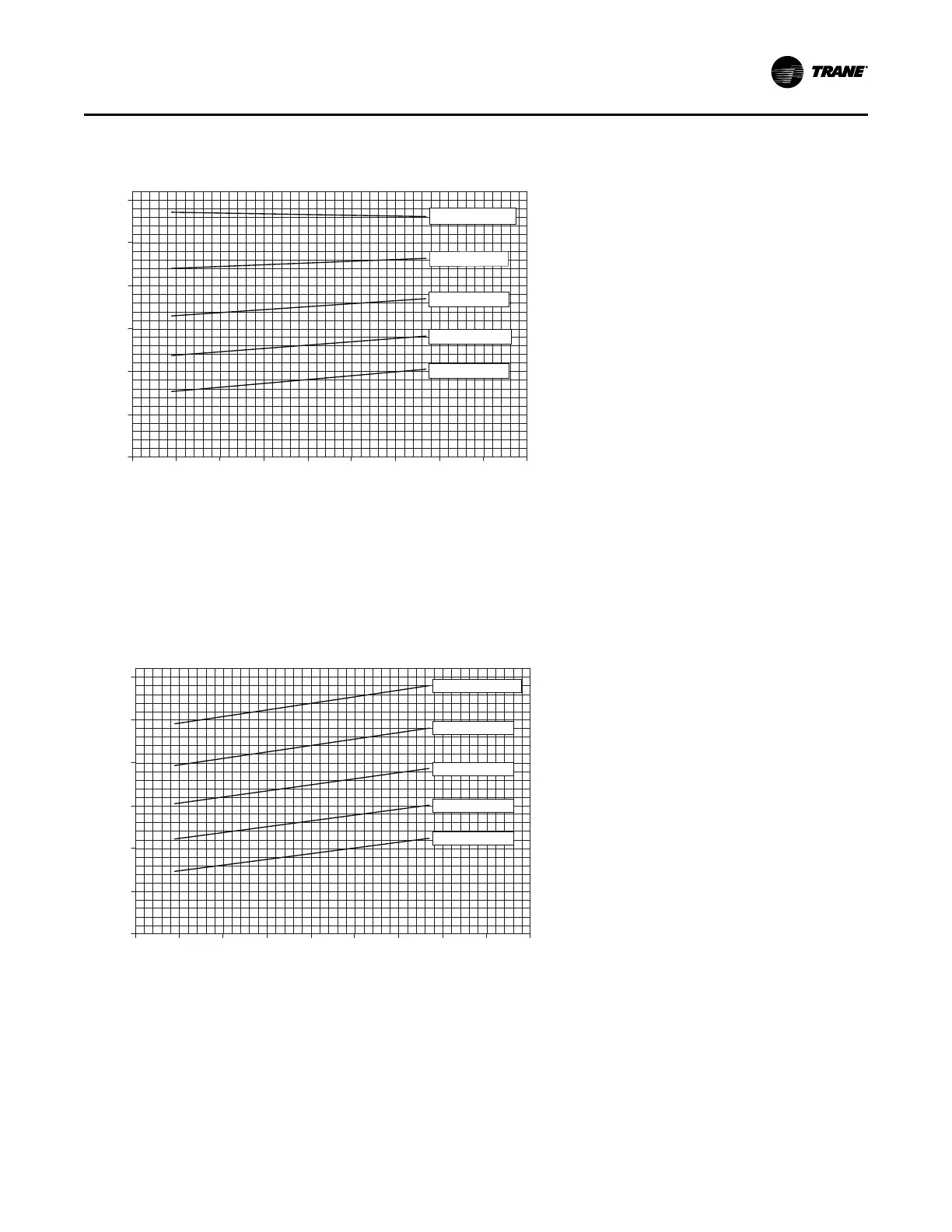

Figure 87. Pressure curve — 75 tons standard efficiency
Discharge Pressure, PSIG
Suction Pressure, PSIG
200
250
300
350
400
450
500
90 100 110 120 130 140 150 160 170 180
105°F Ambient
95°F Ambient
85°F Ambient
75°F Ambient
65°F Ambient
75T Standard Capacity
NNootteess::
• CChhaarrggiinngg aatt AAHHRRII ffuullll llooaadd ddeessiiggnn ccoonnddiittiioonnss:: Suction pressure = 141 psig; Discharge pressure = 428 psig;
Subcooling leaving outdoor coil = 15°F.
• CChhaarrggiinngg aatt ootthheerr ccoonnddiittiioonnss:: Subcooling range: 13-17°F.
Figure 88. Pressure curve — 75 tons high efficiency
Discharge Pressure, PSIG
Suction Pressure, PSIG
200
250
300
350
400
450
500
90 100 110 120 130 140 150 160 170 180
95°F Ambient
85°F Ambient
75°F Ambient
65°F Ambient
105°F Ambient
75T High Efficiency
NNootteess::
• CChhaarrggiinngg aatt AAHHRRII ffuullll llooaadd ddeessiiggnn ccoonnddiittiioonnss:: Suction pressure = 138 psig; Discharge pressure = 427 psig;
Subcooling leaving outdoor coil = 21°F.
• CChhaarrggiinngg aatt ootthheerr ccoonnddiittiioonnss:: Subcooling range: 19-23°F.
SSeerrvviiccee aanndd MMaaiinntteennaannccee
