Dimensions
and Weights
Plenum Dimensions - English - (inches)
A B C Weight
Low 64
7
/
8
24
5
/
8
95
7
/
8
325 lbs.
Unit Sizes 20-38 Std. 64
7
/
8
32
3
/
8
95
7
/
8
430 lbs.
Ext. 64
7
/
8
45 95
7
/
8
705 lbs.
Low 80
3
/
8
21
1
/
8
119
7
/
8
390 lbs.
Unit Sizes 42-80 Std. 80
3
/
8
28
5
/
8
119
7
/
8
540 lbs.
Ext. 80
3
/
8
45 119
7
/
8
705 lbs.
Plenum Dimensions - Metric - (mm)
A B C Weight
Low 1648 625 2435 147.4 kg
Unit Sizes 20-38 Std. 1648 822 2435 195.0 kg
Ext. 1648 1143 2435 320.0 kg
Low 2042 537 3045 176.9 kg
Unit SizesI 42-80 Std. 2042 727 3045 244.9 kg
Ext. 2042 1143 3045 320.0 kg
B
C
A

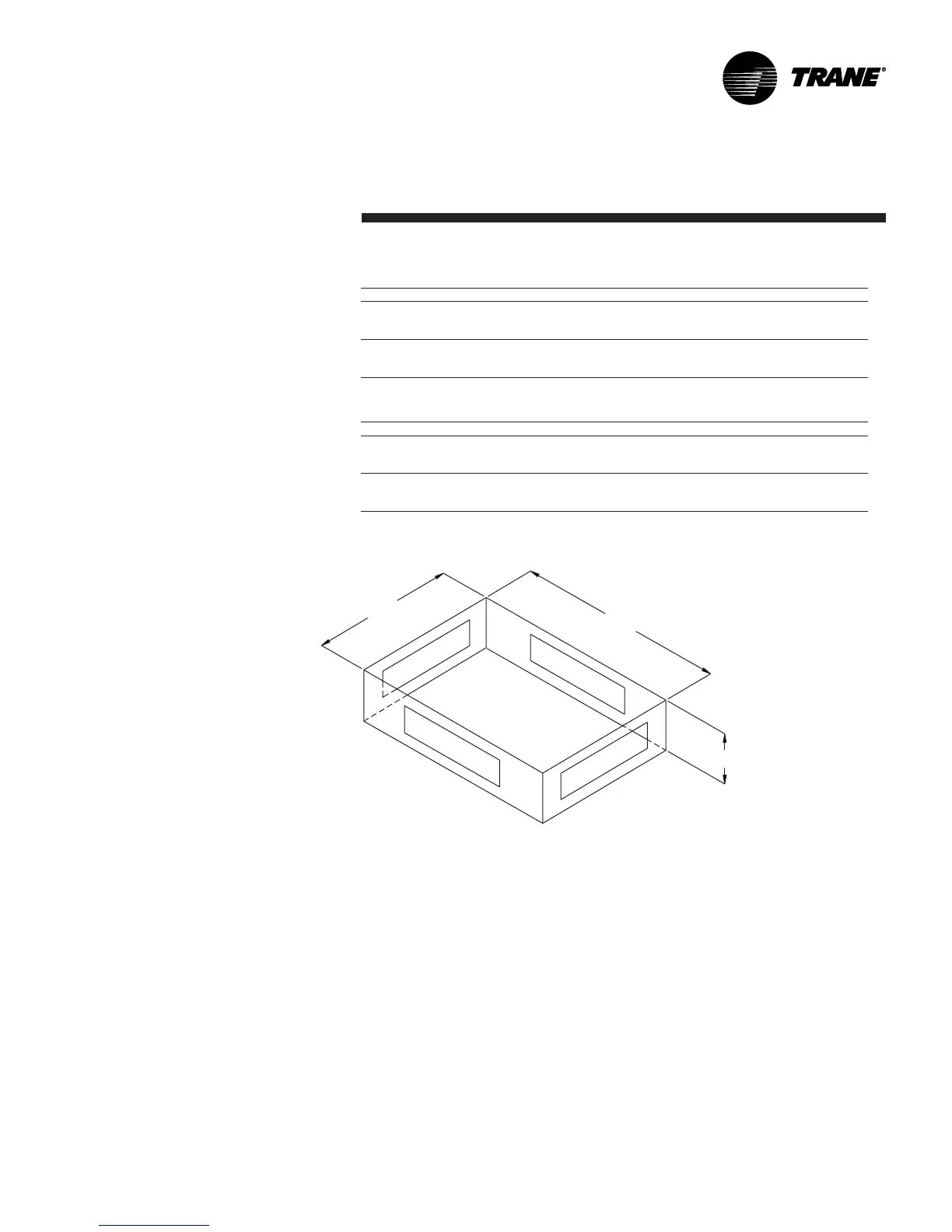

Flexible Horizontal
Discharge Plenum
Installation
