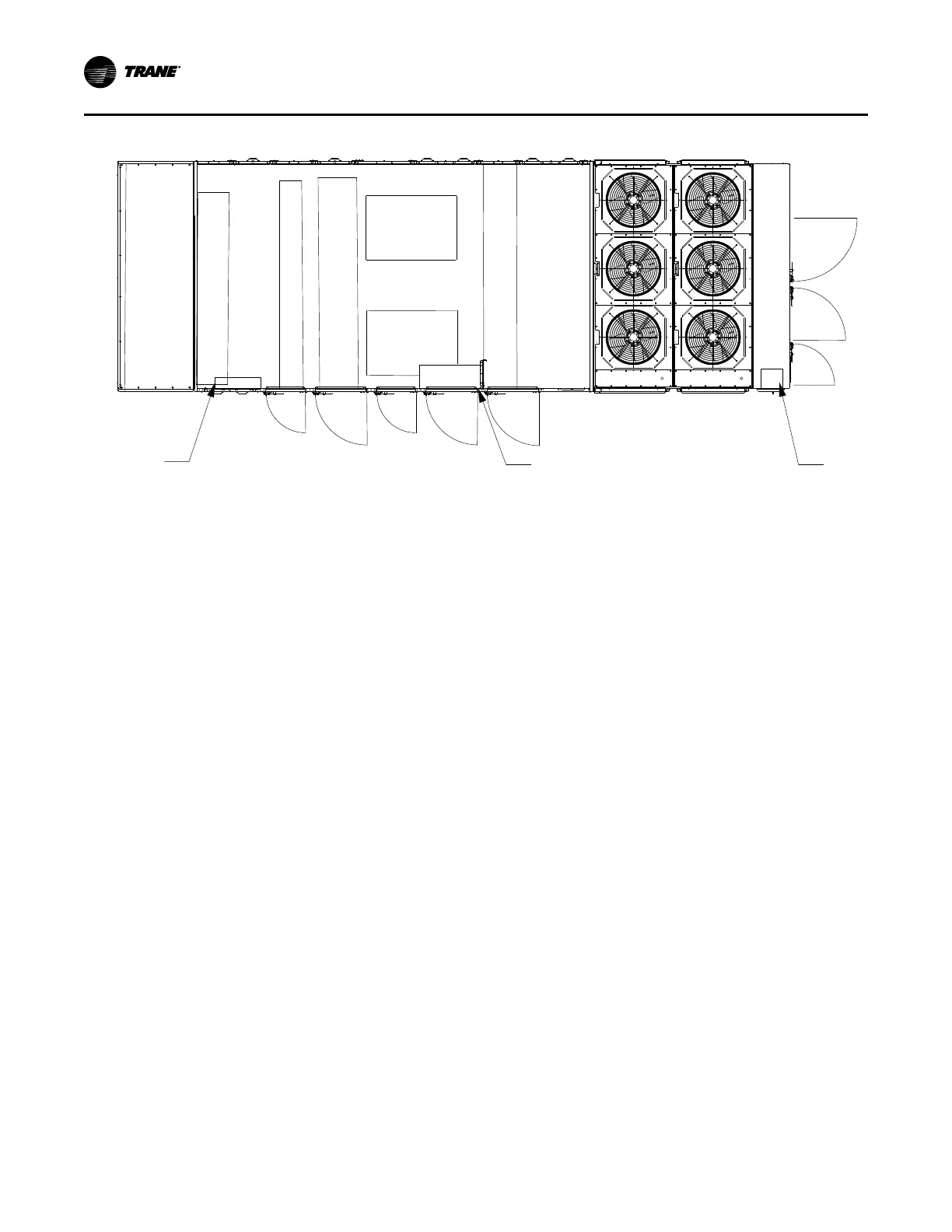

Figure 13. Minimum access clearances – 60 to 75 ton
OUTSIDE AIR
CONTROL BOX
RELIEF FANS
HOOD
ECONOMIZER
PRE-FILTER
EVAPORATOR COIL
FINAL FILTER
CONTROL BOX
SUPPLY FAN
SUPPLY FAN
CB
VFD
PB
PLAN VIEW
60-75T DOOR LAYOUT
SUPPLY FAN
CONTROL BOX
POWER
BOX
19.5"
25.5"
20"
25.5"
20.5"
26.5"
32"
25.5"
Dimensional Data
